Method Of Starting

How to Initiate Self-Diagnosis Mode

Turn ignition switch OFF.

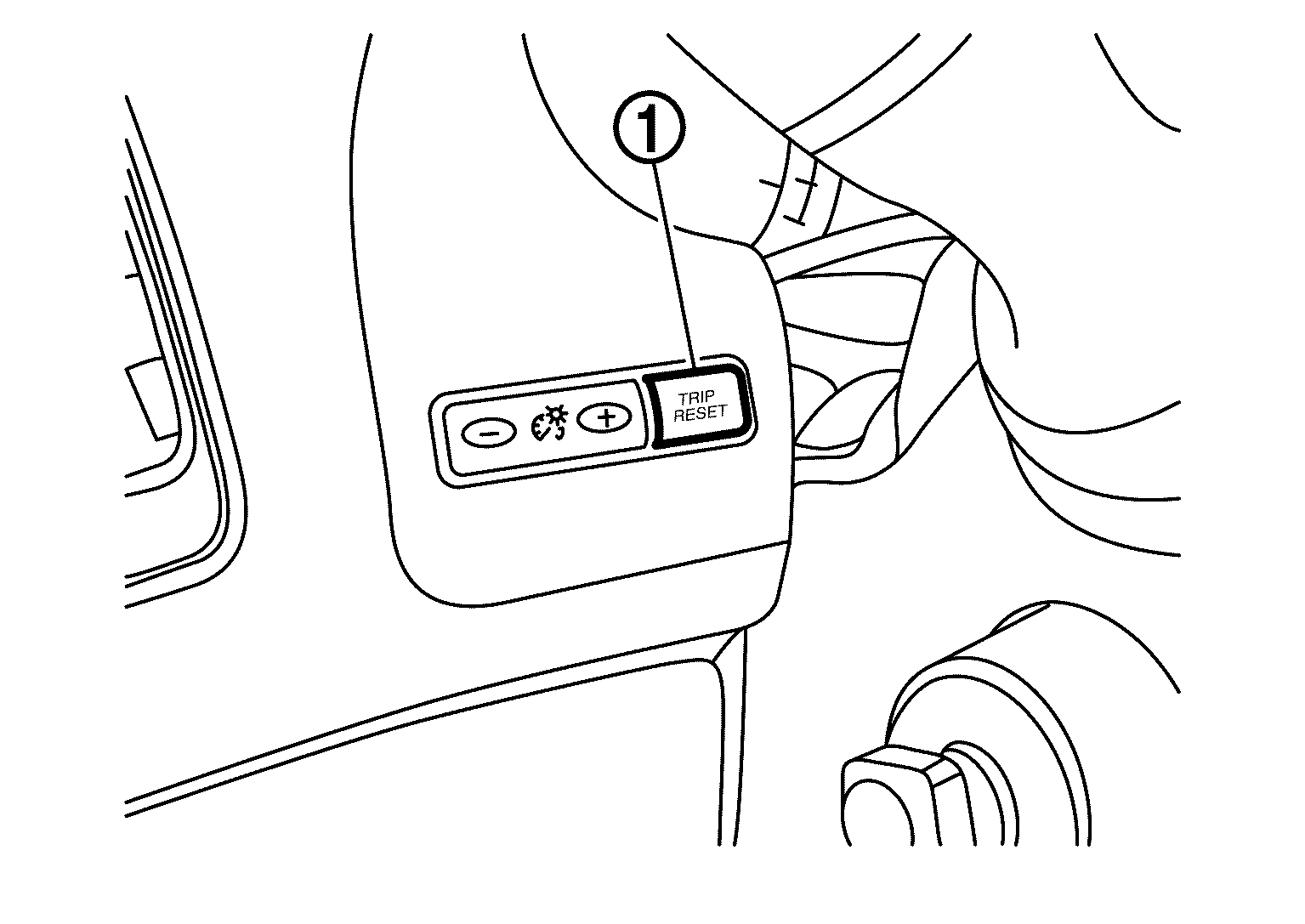

While pressing the trip reset switch , turn ignition switch ON.

Courtesy of NISSAN NORTH AMERICA, INC.
Keep the trip reset switch for 1 seconds or more.
Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
"Work instruction code" is indicated in the top portion of information display and self-diagnosis is started.
The mode switches in the order shown below each time the trip reset switch is pressed.

NOTE: If the trip reset switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically cancelled.

Test order	Test item	Description
1	Work instruction code	This item is displayed, but not used.
2	Part number
3	Software code
4	EEPROM code
5	Hardware code
6	P.C.B code
7	Circuit check	The pointer of the following items moves from 0 to MAX twice. Speedometer Tachometer Engine coolant temperature gauge Fuel gauge NOTE: If any one of the pointers does not sweep, replace combination meter.
8	Color check ^*1	Performs the color check of the information display.
9	error code ^*2	Displays the error code of the following items. Speedometer Tachometer Engine coolant temperature gauge Fuel gauge Meter control switch
10	Warning/indicator lamp check	All warning/indicator lamp illuminate. NOTE: When either one of them does not turn ON, replace combination meter. SRS air bag warning lamp and security indicator lamp are not illuminate.

NOTE: When the trip reset switch is pressed during the indication of Test order "10," test item returns to Test order "2."

*1: Color Check

Courtesy of NISSAN NORTH AMERICA, INC.

*2: Error Code

Courtesy of NISSAN NORTH AMERICA, INC.

Item		Code	Description	Action to take/Reference
	Speedometer	0	Normal	--
		1	A vehicle speed signal cannot be received from ABS actuator and electric unit (control unit).	Perform "Self Diagnostic Result" of "ABS." Refer to DTC Index .
		2	A vehicle speed signal received from the ABS actuator and electric unit (control unit) is abnormal.
	Tachometer	0	Normal	--
	Tachometer	1	An engine speed signal cannot be received from TCM.	Perform "Self Diagnostic Result" of "TCM". Refer to DTC Index .
	Fuel gauge	0	Normal	--
		1	Fuel gauge circuit is short.	Refer to Component Function Check .
		2	Fuel gauge circuit is open.	Refer to Component Function Check .
	Engine coolant temperature gauge	0	Normal	--
	Engine coolant temperature gauge	1	An engine coolant temperature signal cannot be received from ECM.	Perform "Self Diagnostic Result" of "ECM." Refer to DTC Index .Refer to DTC Index .
	Meter control switch	0	Normal	--
		1	When judging that the illumination control switch signal circuit is short-circuited for 5 minutes or more.	Refer to Component Function Check .
		2	When judging that the trip reset switch signal circuit is short-circuited for 5 minutes or more.
		3	When judging that the both switch signal circuit is short-circuited for 5 minutes or more.
	--	0	Displays "0" constantly.	--
	--	0	Displays "0" constantly.	--
	--	0	Displays "0" constantly.	--
