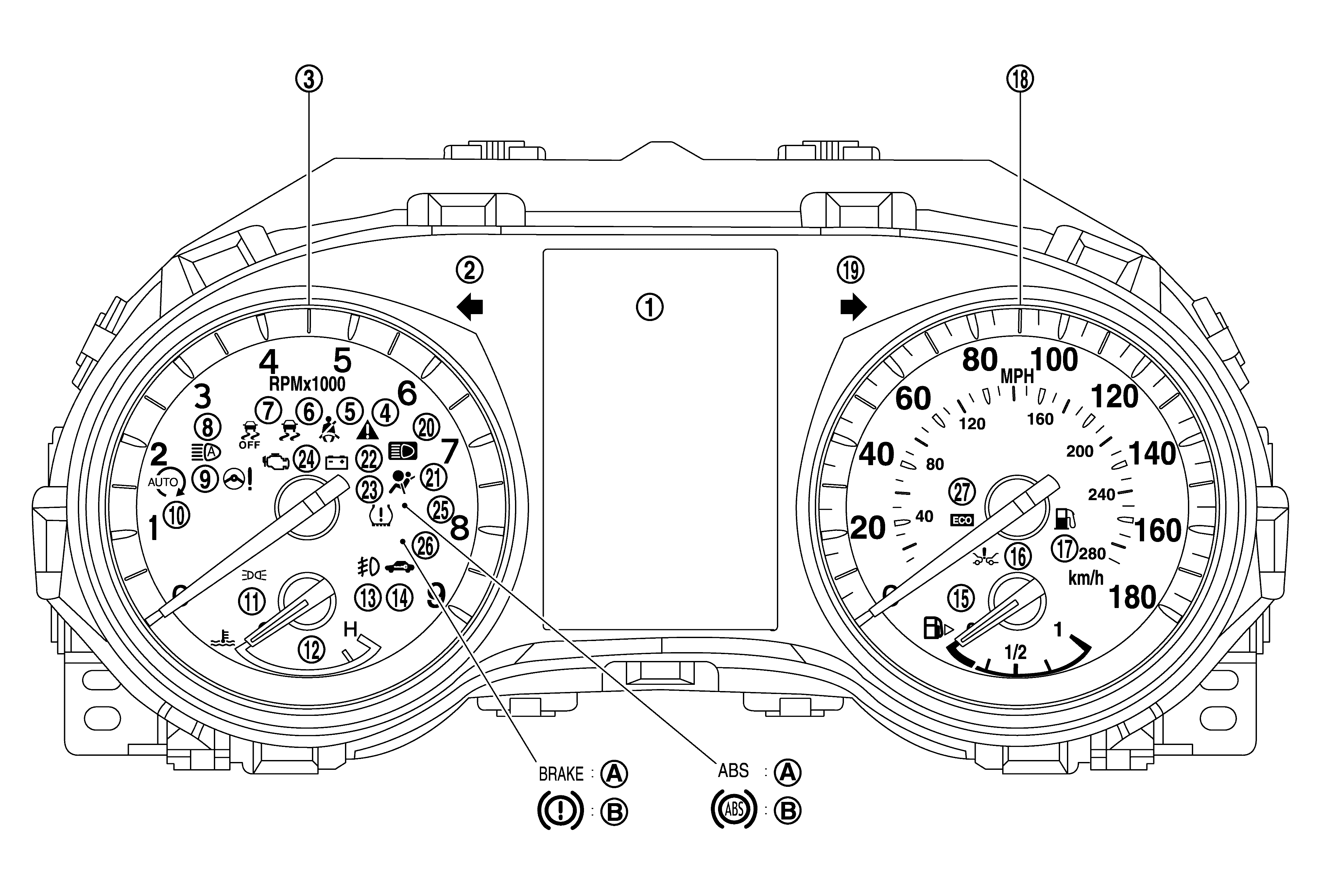

Arrangement Of Combination Meter
|
|
For U. S. A. |
|
Except for U. S. A. |
|
No. |
Indicator lamp/Warning lamp |
Color |
Function |
|
|
Information display |
- |
Refer to System Description . |
|
|
Turn signal indicator lamp (LH) |
Green |
Refer to System Description . |
|
|
Tachometer |
- |
Refer to System Description . |
|
|
Master warning lamp |
Yellow/Red |
Refer to System Description . |
|
|
Seat belt warning lamp |
Red |
Refer to System Description . |
|
|
VDC warning lamp |
Yellow |
Refer to System Description . |
|
|
VDC OFF indicator lamp |
Yellow |
Refer to System Description . |
|
|
High beam assist indicator lamp |
Green |
Refer to System Description . |
|
|
Power steering warning lamp |
Yellow |
Refer to System Description . |
|
|
Stop/start indicator lamp *1 |
-- |
- |
|
|
Position lamp indicator lamp |
Green |
Refer to System Description . |
|
|
Engine coolant temperature gauge |
- |
Refer to System Description . |
|
|
Front fog lamp indicator lamp |
Green |
Refer to System Description . |
|
|
Security indicator lamp |
Red |
|
|
|
Fuel gauge |
- |
Refer to System Description . |
|
|
FEB warning lamp |
Yellow |
Refer to System Description . |
|
|
Low fuel warning lamp |
Yellow |
Refer to System Description . |
|
|
Speedometer |
- |
Refer to System Description . |
|
|
Turn signal lamp (RH) |
Green |
Refer to System Description . |
|
|
High beam indicator lamp |
Blue |
Refer to System Description . |
|
|
SRS air bag warning lamp |
Red |
Refer to System Description . |
|
|
Charge warning lamp |
Red |
Refer to System Description . |
|
|
Low tire pressure warning lamp |
Yellow |
Refer to System Description . |
|
|
Malfunction indicator lamp (MIL) |
Yellow |
Refer to System Description . |
|
|
ABS warning lamp |
Yellow |
Refer to System Description . |
|
|
Brake warning lamp |
Red |
Refer to System Description . |
|
|
ECO drive indicator lamp |
Green |
Refer to System Description . |
*1: Not applicable
