REAR SUSPENSION ASSEMBLY : Removal & Installation: Removal

  1. Remove tires with power tool. Refer to ROAD WHEEL TIRE : Exploded View .
  2. Remove caliper assemblies. Hang caliper assembly in a place where it will not interfere with work.
    CAUTION: Avoid depressing brake pedal while brake caliper is removed.
  3. Remove disc rotor. Refer to REAR WHEEL HUB AND HOUSING : Removal & Installation .
  4. Remove main muffler. Refer to EXHAUST SYSTEM : Removal & Installation .

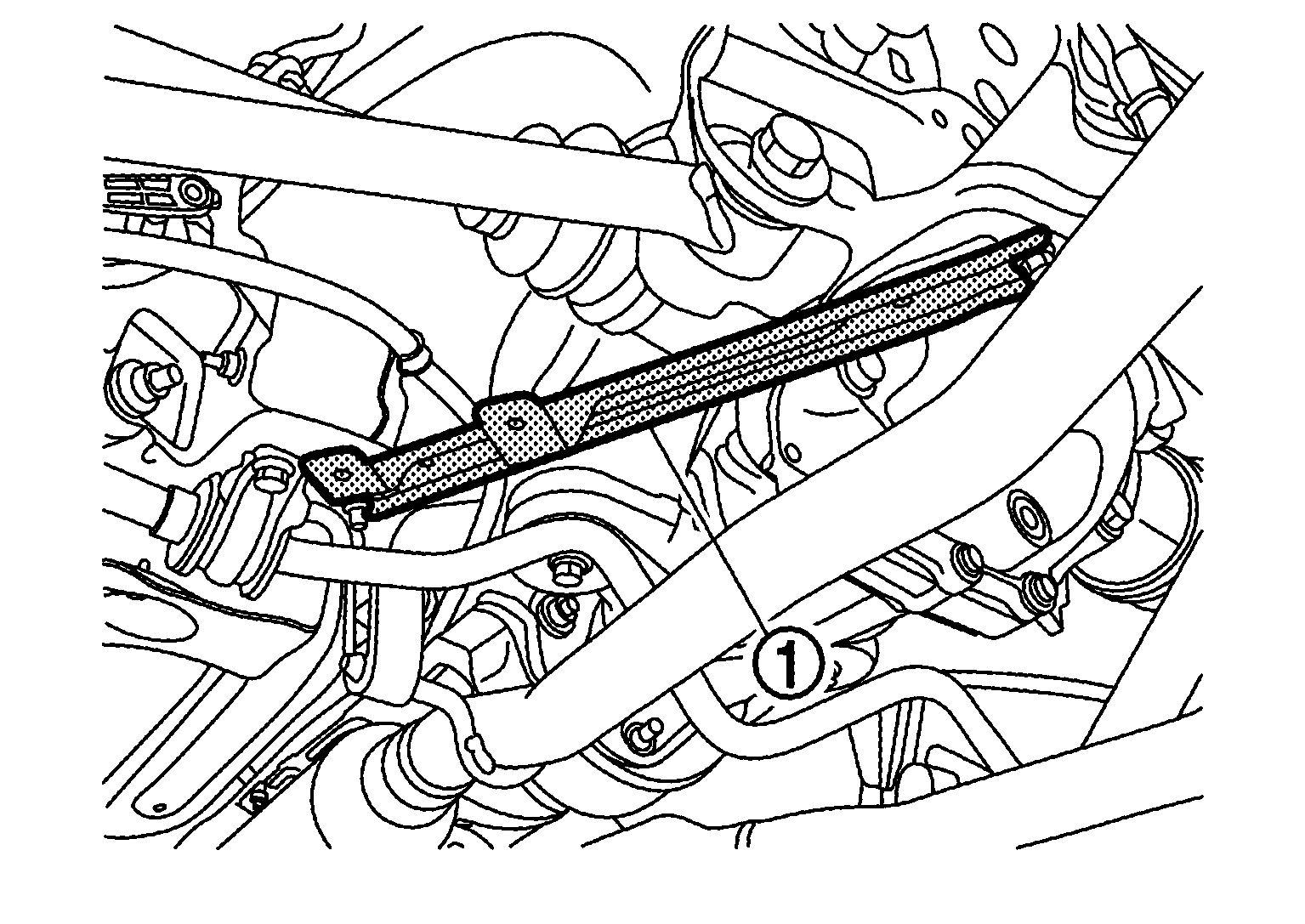

  5. Remove member stays SYMBOL .
    GNSJSEIA0715Z-715Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove rear final drive assembly. Refer to REAR FINAL DRIVE ASSEMBLY : Unit Removal & Installation .
  7. Remove drive shaft. Refer to REAR DRIVE SHAFT : Removal & Installation .
  8. Separate rear cable from front cable, and then remove rear cable from rear suspension member. Refer to PARKING BRAKE CONTROL : Removal & Installation .
  9. Remove wheel sensor and sensor harness from rear suspension member. Refer to REAR WHEEL SENSOR : Removal & Installation .
  10. Disconnect height sensor harness connector. (AFS models) Refer to HEIGHT SENSOR : Removal & Installation .
  11. Remove dynamic digital suspension or shock absorber from axle housing. Refer to REAR COIL SPRING AND SHOCK ABSORBER : Removal & Installation .
  12. Set manual lift table caddy (commercial service tool) under rear suspension member.
    CAUTION:
    • At this step, the manual lift table caddy must be set only for supporting the removal procedure. For details on jacking up the vehicle, Refer to GENERAL PRECAUTIONS : Lifting Point .
    • Never damage the rear suspension member with a manual lift table caddy.
    • Check the stable condition when using a manual lift table caddy.
  13. Remove rear under cover from rear suspension member stay. Refer to FLOOR UNDER COVER : Removal & Installation .

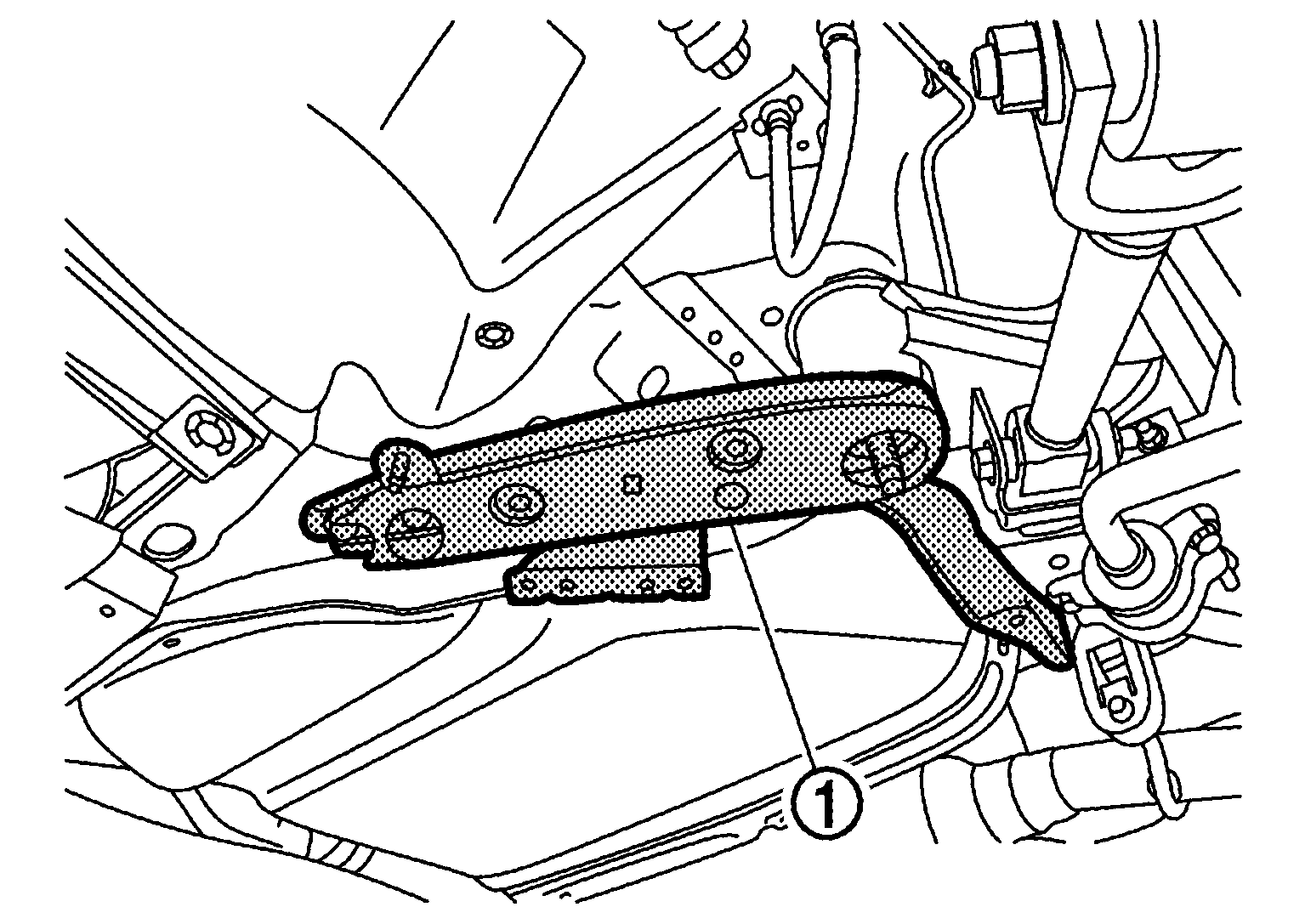

  14. Remove rear suspension member stays SYMBOL .
    GNSJSEIA0716Z-716Courtesy of NISSAN NORTH AMERICA, INC.
  15. Remove rear suspension member mounting nuts. Refer to REAR SUSPENSION ASSEMBLY : Exploded View .
  16. Slowly lower manual lift table caddy, then remove rear suspension member, suspension arms, front lower links, wheel hub and housings from vehicle as a unit.
    CAUTION: Operate while checking that manual lift table caddy supporting status is stable.
  17. Remove mount stopper from rear suspension member.
