WHEEL ALIGNMENT : Adjustment: Toe-In

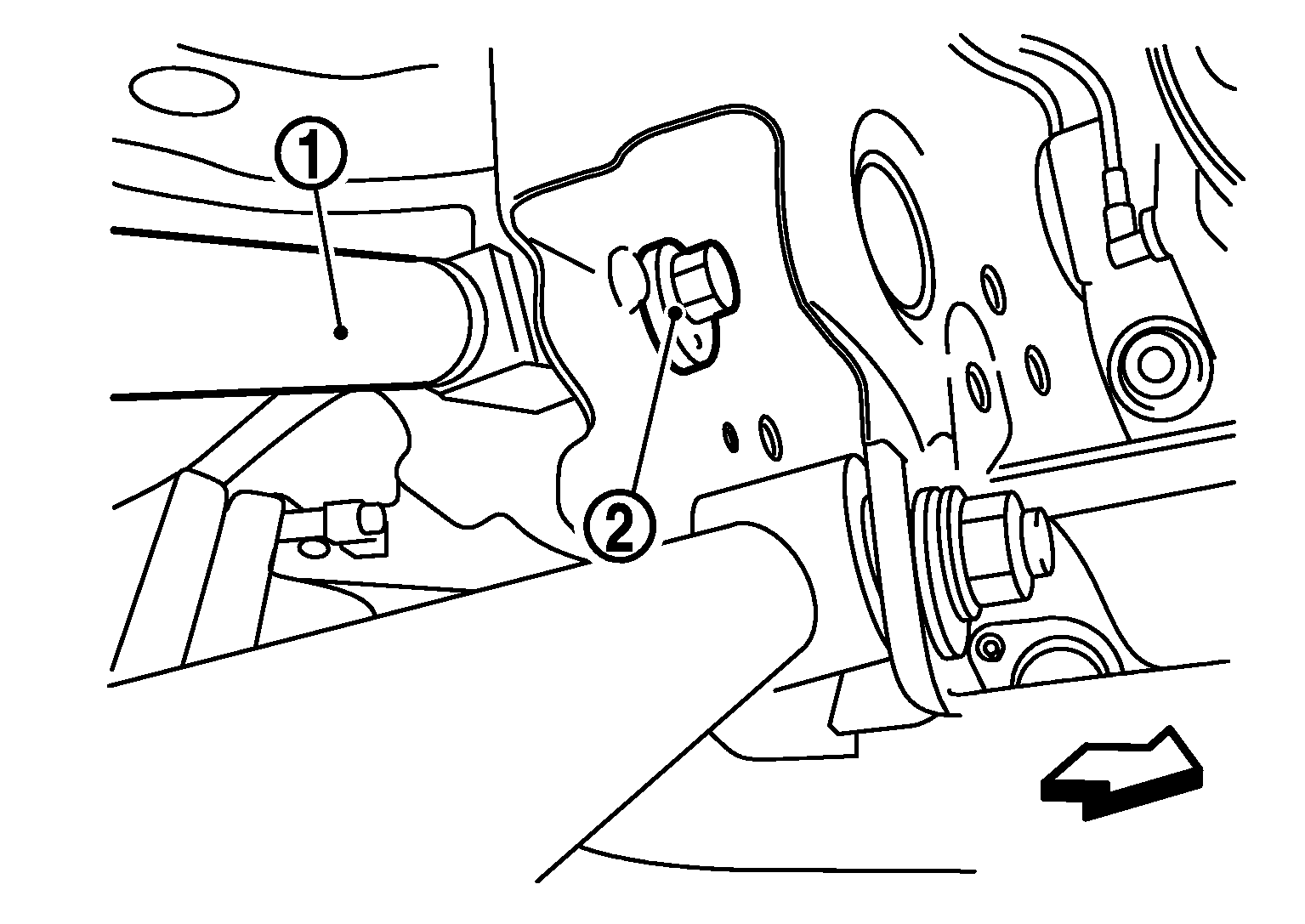

- If toe-in exceeds the standard value, adjust with adjusting bolt
in toe control link
.
: Vehicle front
Toe-In: Refer to WHEEL ALIGNMENT : Service Data .
CAUTION:- Be sure to adjust equally on right and left side with adjusting bolt.
- When tightening the nut firmly and checking the torque, use a wrench to prevent the turning of the bolt.
- If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
- After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to Work Procedure .
