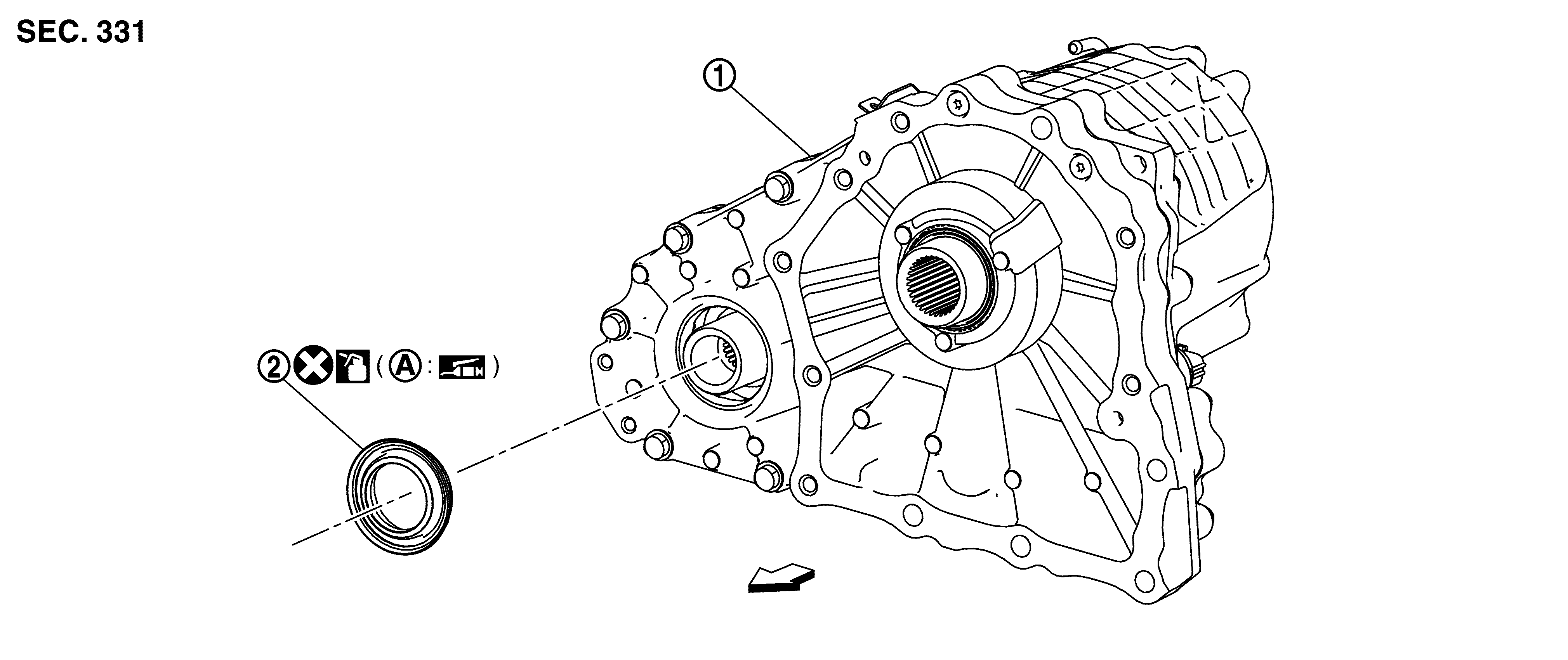

TRANSFER FRONT OIL SEAL : Exploded View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Transfer assembly
|
|
Front oil seal
|
|
|
Oil seal lip
|
|
|
: Vehicle front
|
|
|
: Always replace after every disassembly.
|
|
|
: Apply transfer fluid.
|
|
|
: Apply multi-purpose grease.
|
