TRANSFER ASSEMBLY : Unit Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Note the following, and install in the reverse order of removal.

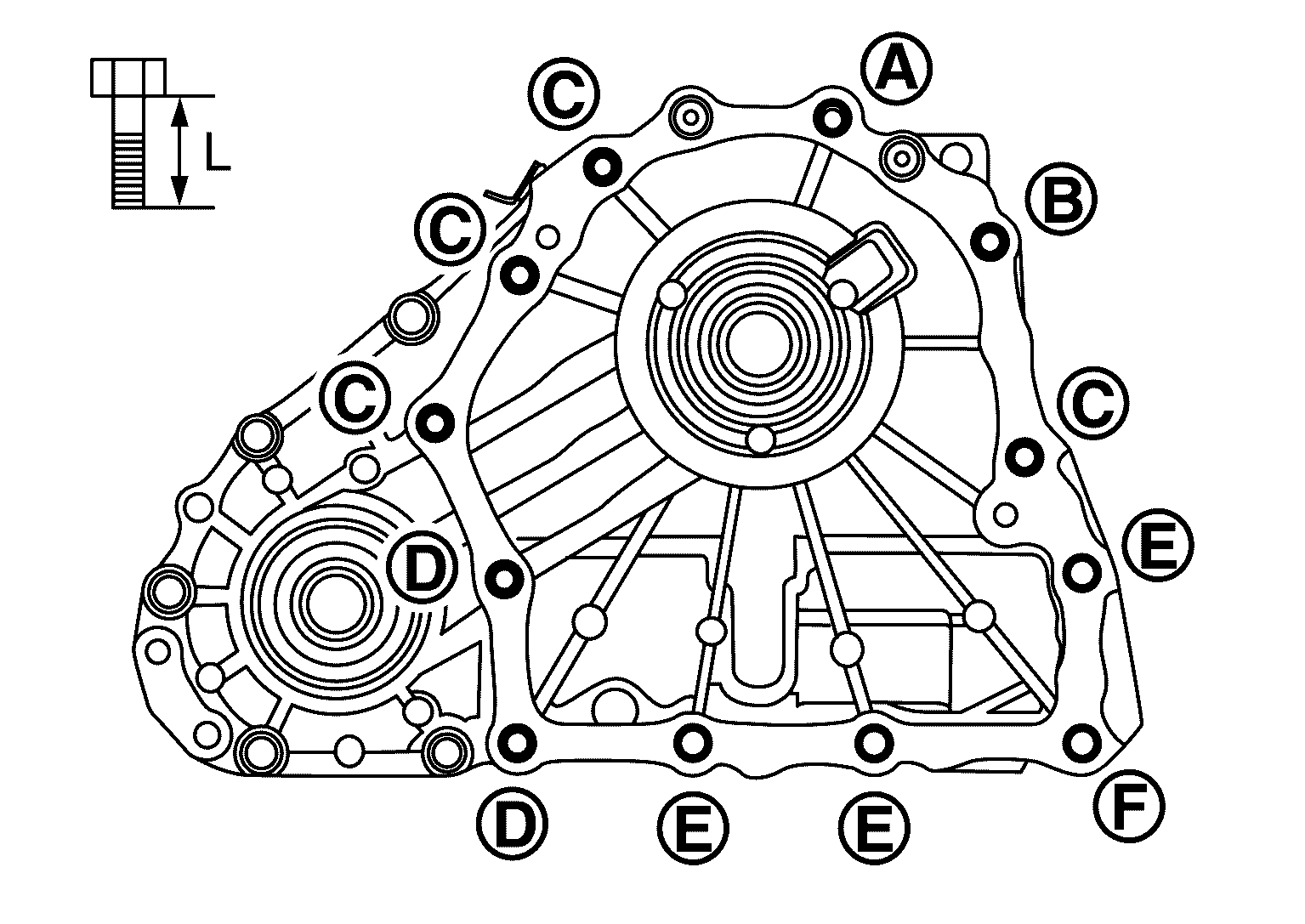

- When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque. For each tightening torque, Refer to TRANSFER ASSEMBLY : Exploded View .
Bolt symbol
Quantity
1
1
4
2
3
1
Bolt length " L " mm (in)
75 (2.95)
45 (1.77)
40 (1.57)
30 (1.18)
75 (2.95)
40 (1.57)
Insertion direction
Transmission to transfer
Transfer to transmission
- Perform inspection after installation. Refer to TRANSFER ASSEMBLY : Inspection .
