TRANSFER AIR BREATHER : Removal & Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer air breather hose caused by bending or winding.

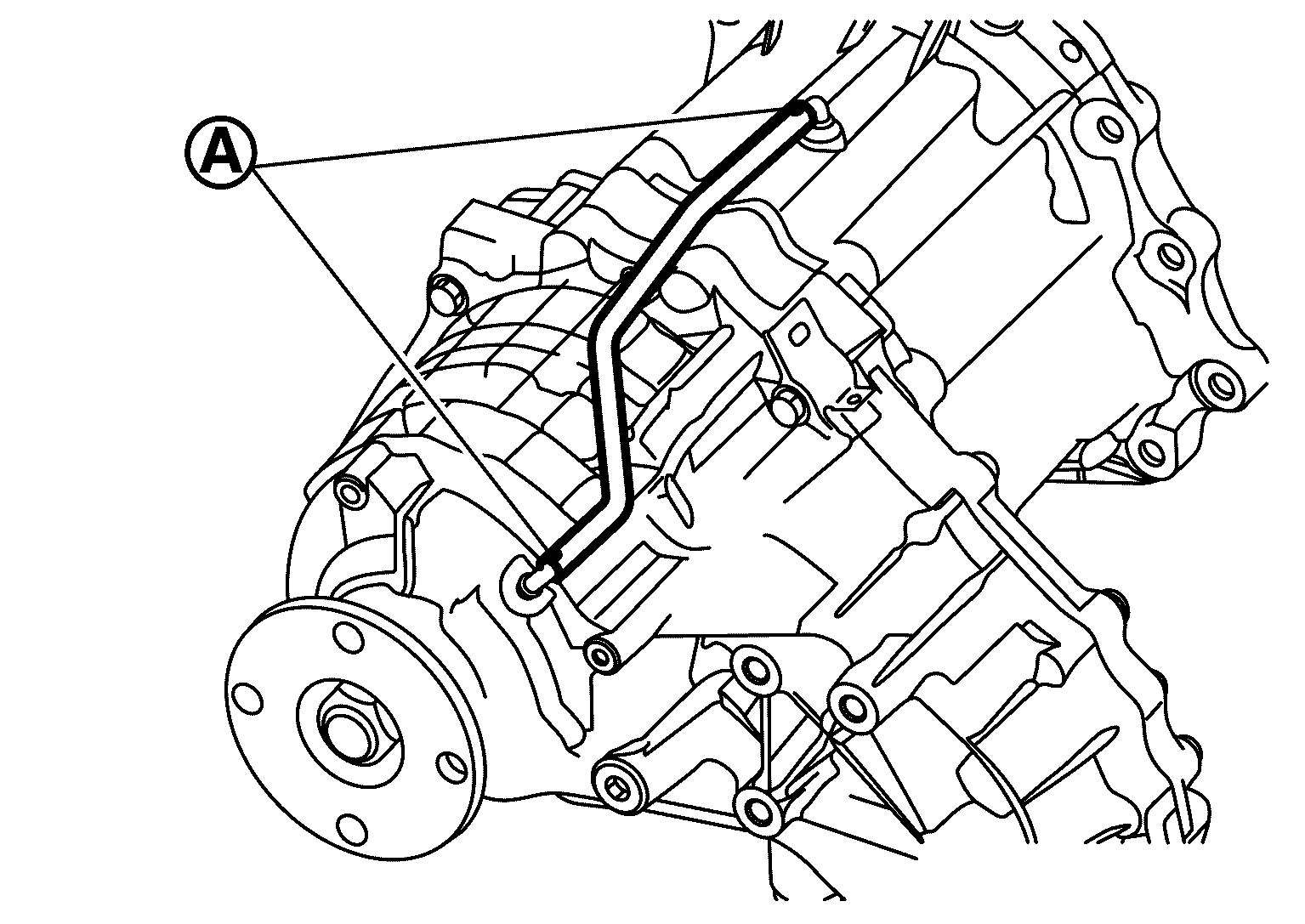

Set transfer air breather hose with the paint mark

facing upward.

Courtesy of NISSAN NORTH AMERICA, INC.

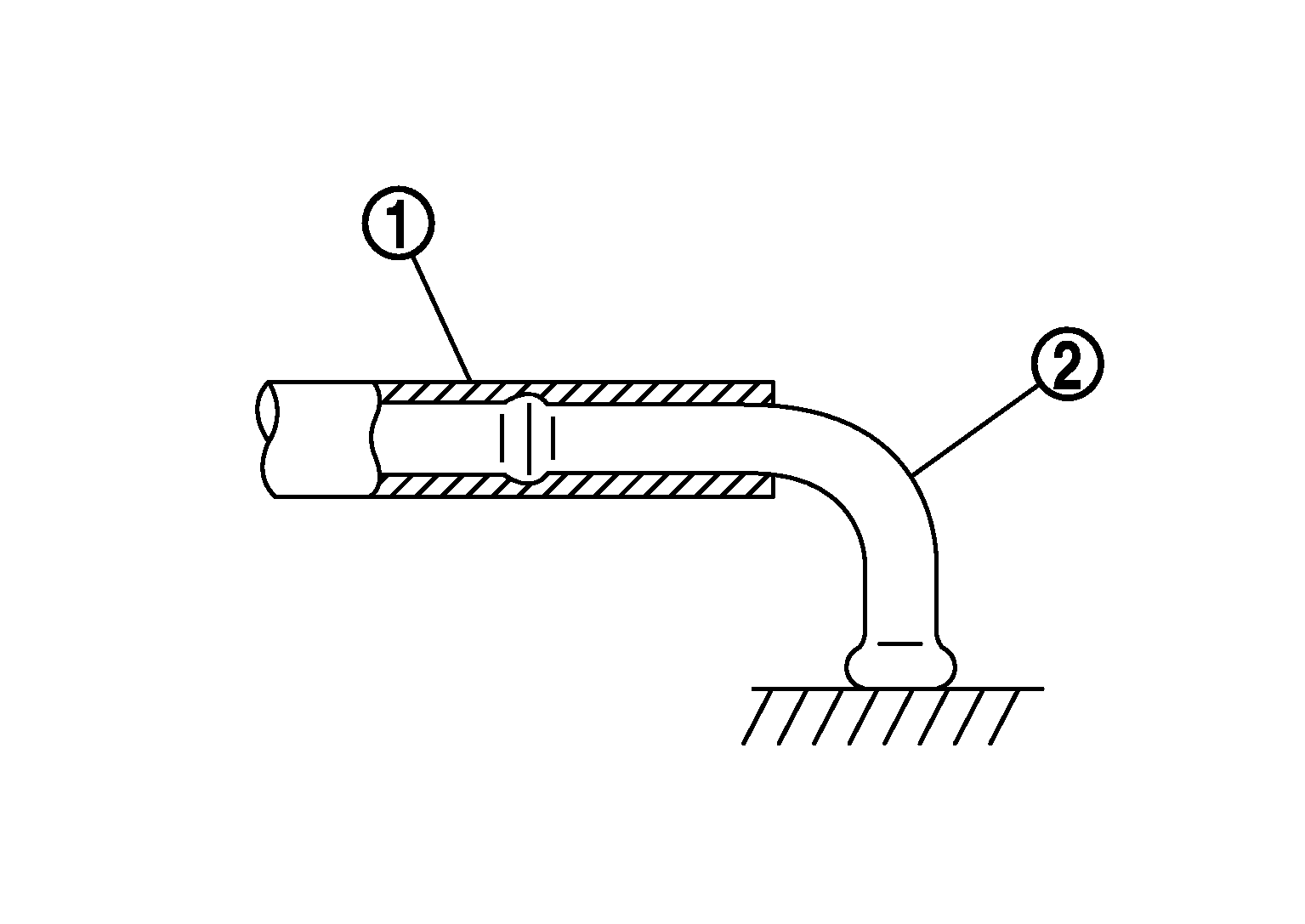

Be sure to insert air breather hose

to air breather tube

until hose end reaches the tube bend R portion.

Courtesy of NISSAN NORTH AMERICA, INC.
