REAR FINAL DRIVE FRONT OIL SEAL : Removal & Installation: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Verify identification stamp of replacement frequency put in the lower part of gear carrier to determine replacement for collapsible spacer when replacing front oil seal. "Identification stamp of replacement frequency of front oil seal". If collapsible spacer replacement is necessary, remove final drive assembly and disassemble it to replace front oil seal and collapsible spacer. Refer to REAR FINAL DRIVE PINION : Disassembly & Assembly .

NOTE: The reuse of collapsible spacer is prohibited in principle. However, it is reusable on a one-time basis only in cases when replacing front oil seal.

Identification stamp of replacement frequency of front oil seal

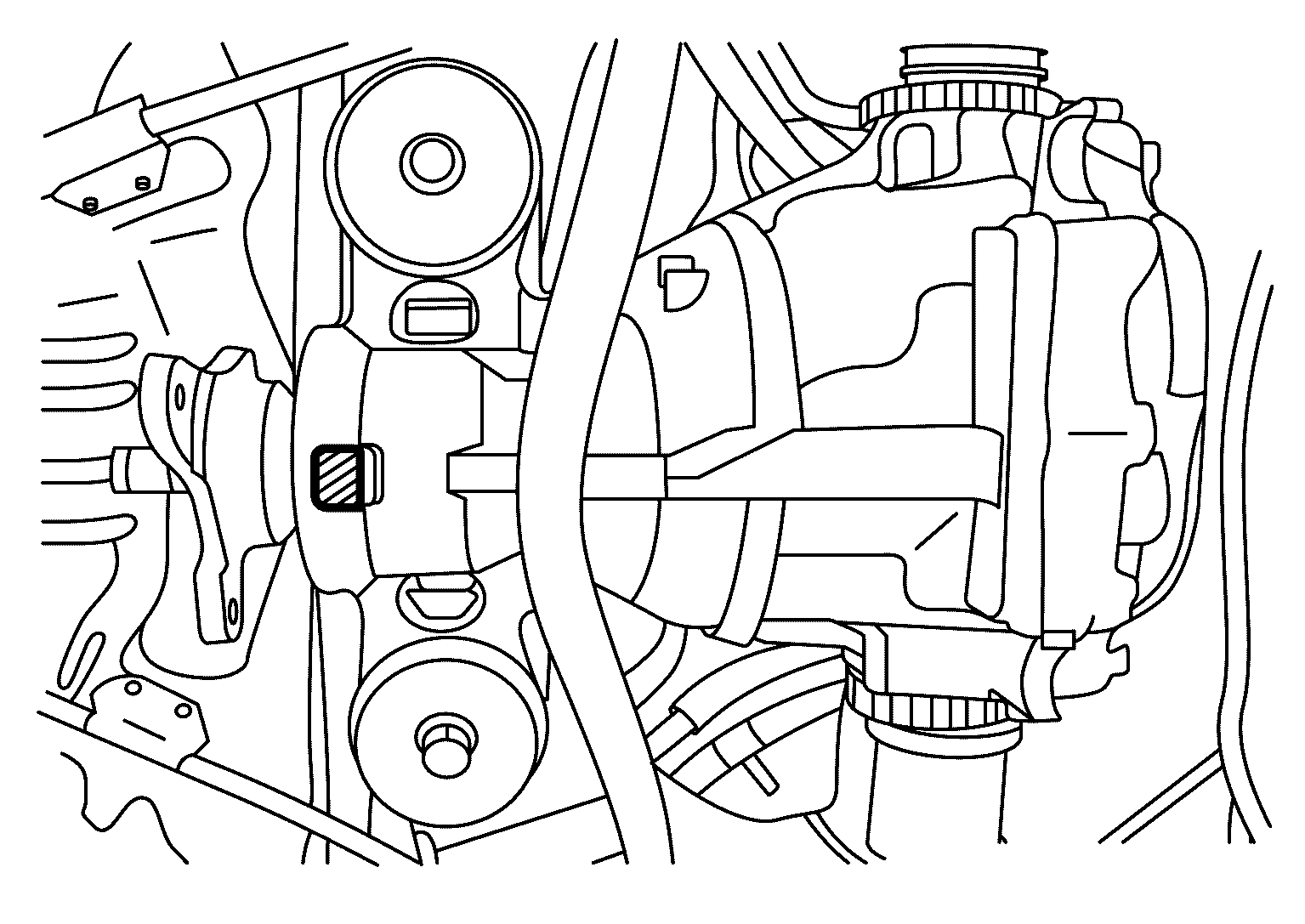

The diagonally shaded area in the figure shows stamping point for replacement frequency of front oil seal.

Courtesy of NISSAN NORTH AMERICA, INC.

The following table shows if collapsible spacer replacement is needed before replacing front oil seal.

When collapsible spacer replacement is required, disassemble final drive assembly to replace collapsible spacer and front oil seal. Refer to REAR FINAL DRIVE PINION : Disassembly & Assembly .

Stamp	Collapsible spacer replacement
No stamp	Not required
"0" or "0" on the far right of stamp	Required
"01" or "1" on the far right of stamp	Not required

CAUTION: Make a stamping after replacing front oil seal.

After replacing front oil seal, make a stamping on the stamping point in accordance with the table below in order to identify replacement frequency.

CAUTION: Make a stamping from left to right.

Stamp before stamping	Stamping on the far right	Stamping
No stamp	0	0
"0" (Front oil seal was replaced once.)	1	01
"01" (Collapsible spacer and front oil seal were replaced last time.)	0	010
"0" is on the far right. (Only front oil seal was replaced last time.)	1	...01
"1" is on the far right. (Collapsible spacer and front oil seal were replaced last time.)	0	...010

Make a judgment if a collapsible spacer replacement is required.
Drain gear oil. Refer to REAR DIFFERENTIAL GEAR OIL : Draining .
Remove final drive assembly. Refer to REAR FINAL DRIVE ASSEMBLY : Unit Removal & Installation .
NOTE:
- It is necessary to separate the rear drive shaft from final drive to measure the total preload.
- It is necessary to remove final drive assembly to separate the rear drive shaft from final drive.
Measure the total preload with the preload gauge (A) [SST: ST3127S000 (J-25765-A)].

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Record the preload measurement.
Put matching mark on the end of the drive pinion. The matching mark should be in line with the matching mark on companion flange .

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: For matching mark, use paint. Never damage companion flange and drive pinion.
While holding companion flange with the flange wrench (commercial service tool), remove drive pinion lock nut.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove companion flange using pullers (commercial service tool).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove front oil seal using oil seal remover (commercial service tool).
