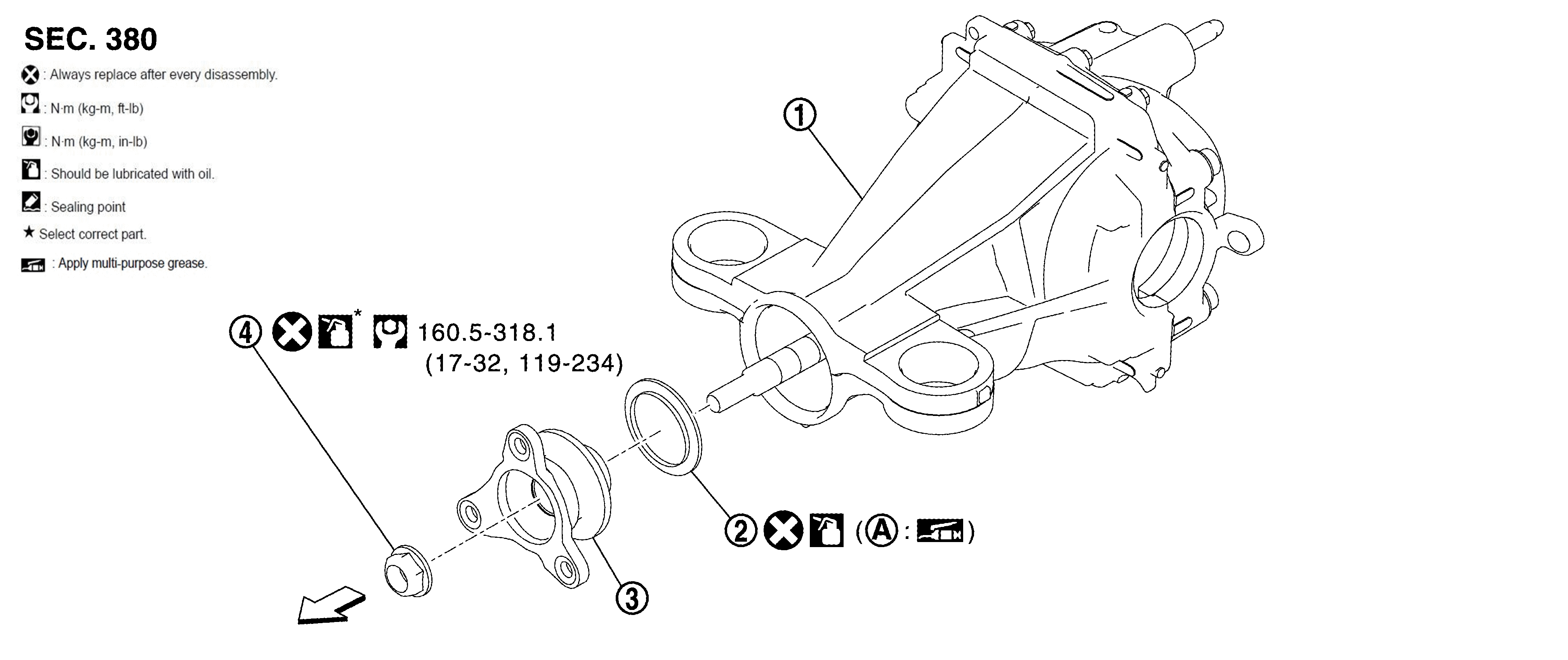

REAR FINAL DRIVE FRONT OIL SEAL : Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Final drive assembly
|
|
Front oil seal
|
|
Companion flange
|
|
|
Drive pinion lock nut
|
|
Oil seal lip
|
|
: Vehicle front
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
|
: Apply gear oil.
|
|
*: Apply anti-corrosion oil.
|
|
: Apply multi-purpose grease.
|
