REAR FINAL DRIVE ASSEMBLY : Exploded View

WARNING: This page is about a different variant/trim than selected.

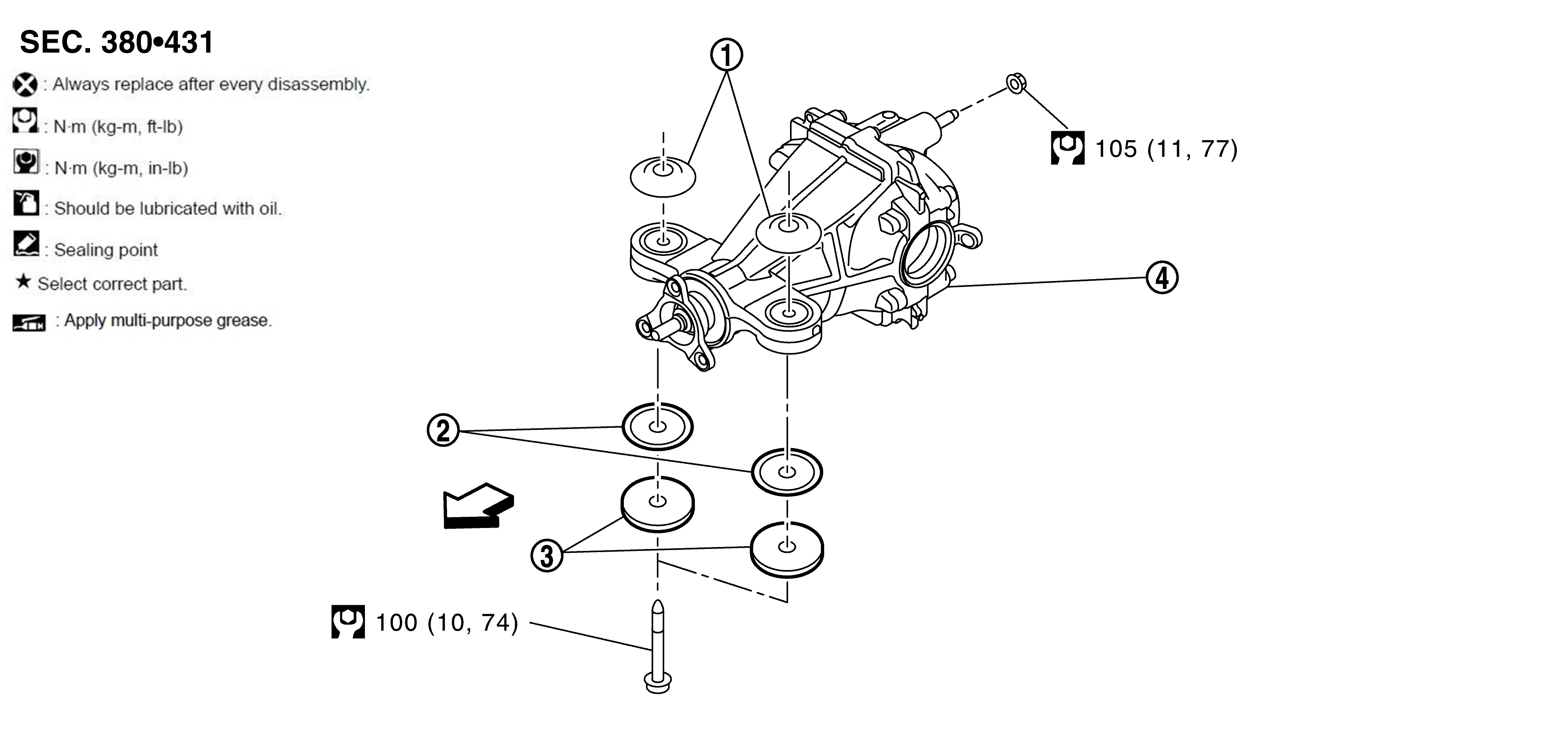

Fig 1: Rear Final Drive Assembly Components With Torque Specifications
GNSJSDIA4756GB-756Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Upper stopper

SYMBOL

Lower stopper

SYMBOL

Washer

SYMBOL

Rear final drive assembly

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)
