FRONT PROPELLER SHAFT : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Note the following, and install in the reverse order of removal.
- For non-reusable parts, Refer to FRONT PROPELLER SHAFT : Exploded View .
- For each tightening torque, Refer to FRONT PROPELLER SHAFT : Exploded View .
- Apply multi-purpose grease onto O-ring.
- When installing propeller shaft assembly to transfer, never damage transfer front oil seal.
- Wrap power steering piping interference area with shop cloth or equivalent to protect power steering piping from breakage. (Models with hydraulic pump electric P/S)

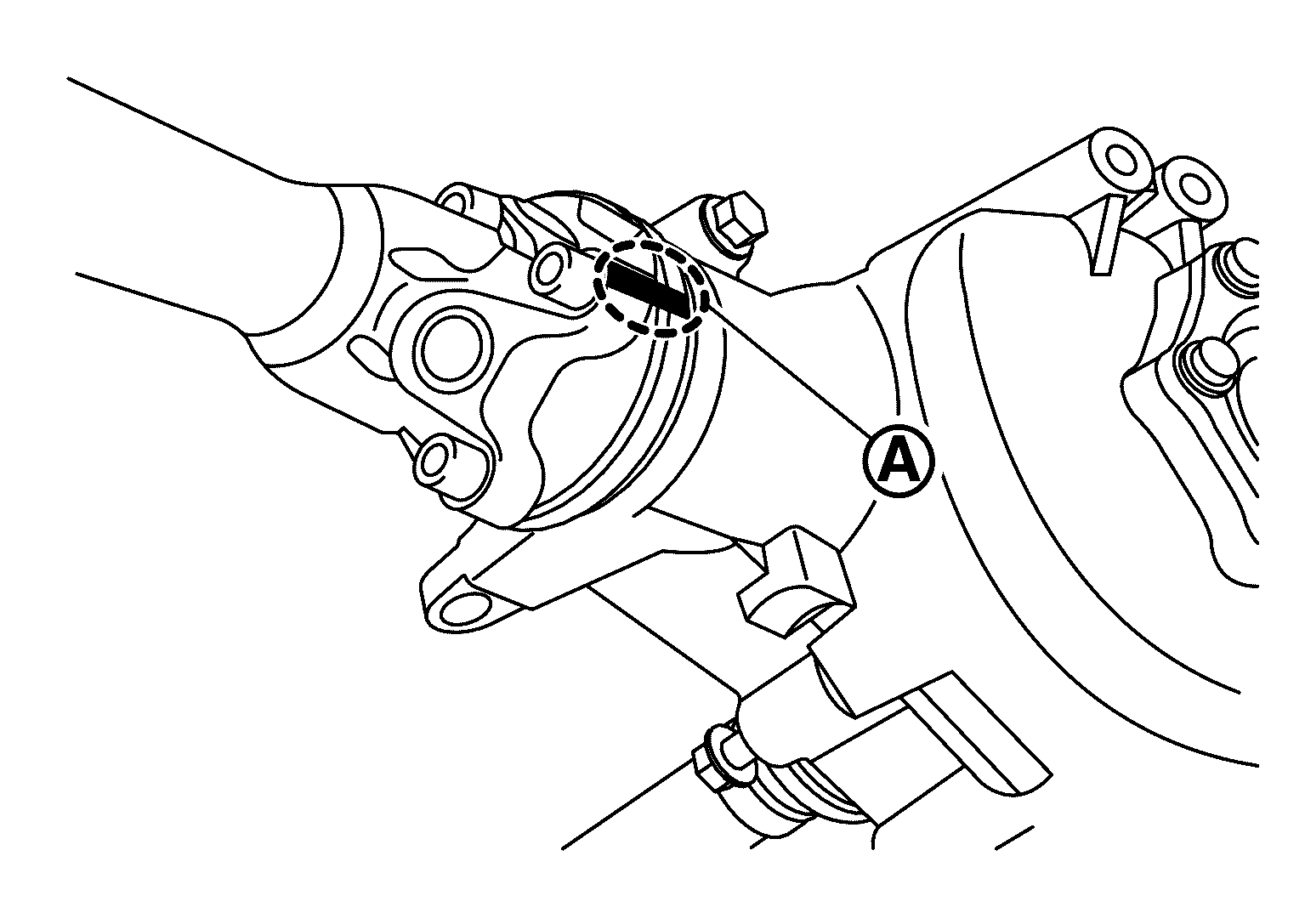

- Align matching marks
to install propeller shaft flange yoke and final drive companion flange.
- Perform inspection after installation. Refer to FRONT PROPELLER SHAFT : Inspection .
