Inspection After Removal

WARNING: This page is about a different variant/trim than selected.

Appearance

Check propeller shaft tube surface for dents or cracks. If malfunction is detected, replace propeller shaft assembly.

Propeller Shaft Runout

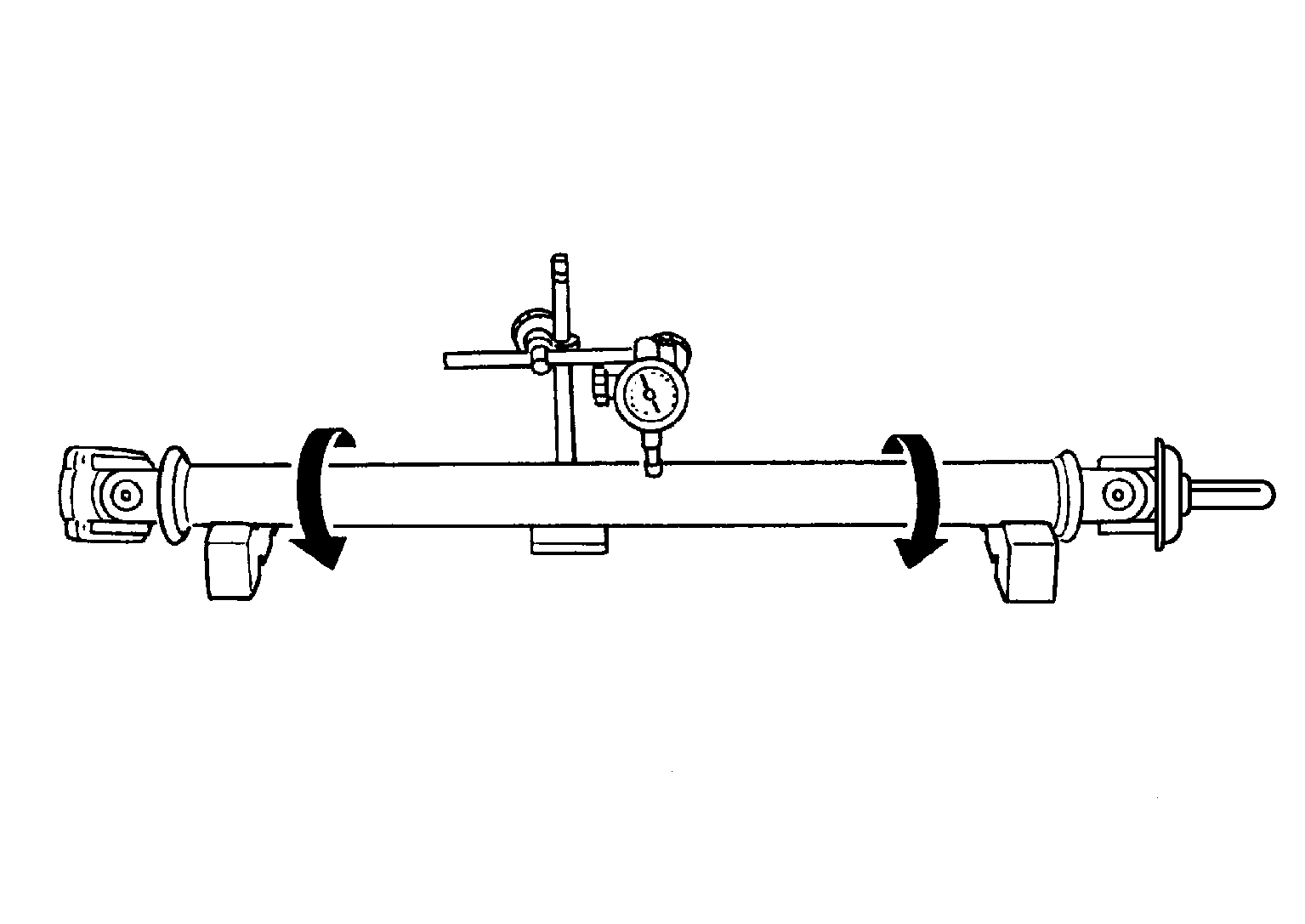

Check propeller shaft runout at measuring points with a dial indicator. If runout exceeds specifications, replace propeller shaft assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

Propeller shaft runout

: Refer to FRONT PROPELLER SHAFT : Service Data .

Propeller shaft runout measuring point (Point "

").

Courtesy of NISSAN NORTH AMERICA, INC.

VR30DDTT models
Dimension
A	: 381.5 mm (15.02 in)

Journal Axial Play

As shown in the figure below, while fixing yoke on one side, check axial play of joint. If it is outside the standard, replace propeller shaft assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

Journal axial play

: Refer to FRONT PROPELLER SHAFT : Service Data .

CAUTION: Never disassemble joints.
