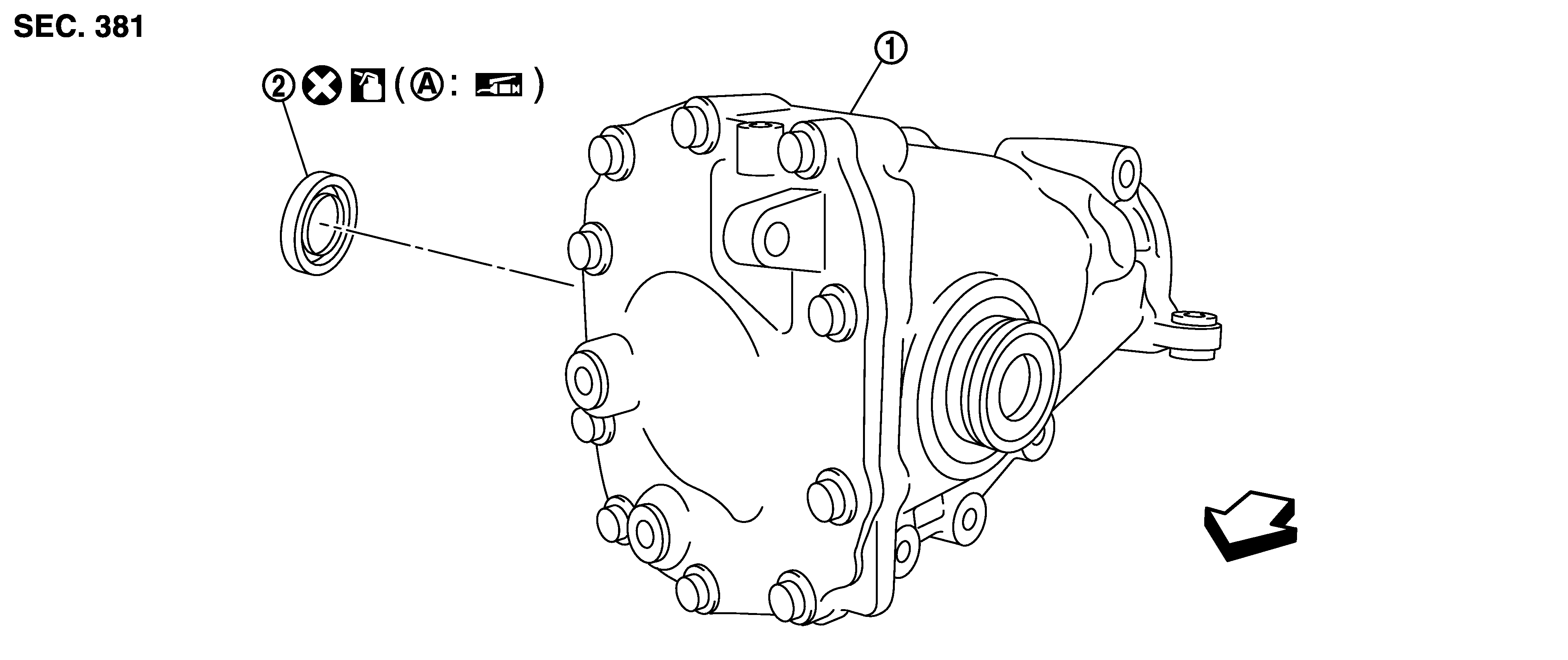

FRONT FINAL DRIVE SIDE OIL SEAL : Exploded View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Front final drive assembly
|
|
Side oil seal
|
|
|
Oil seal lip
|
|
|
: Vehicle front
|
|
|
: Always replace after every disassembly.
|
|
|
: Apply gear oil.
|
|
|
: Apply multi-purpose grease.
|
