FRONT FINAL DRIVE ASSEMBLY : Exploded View

WARNING: This page is about a different variant/trim than selected.

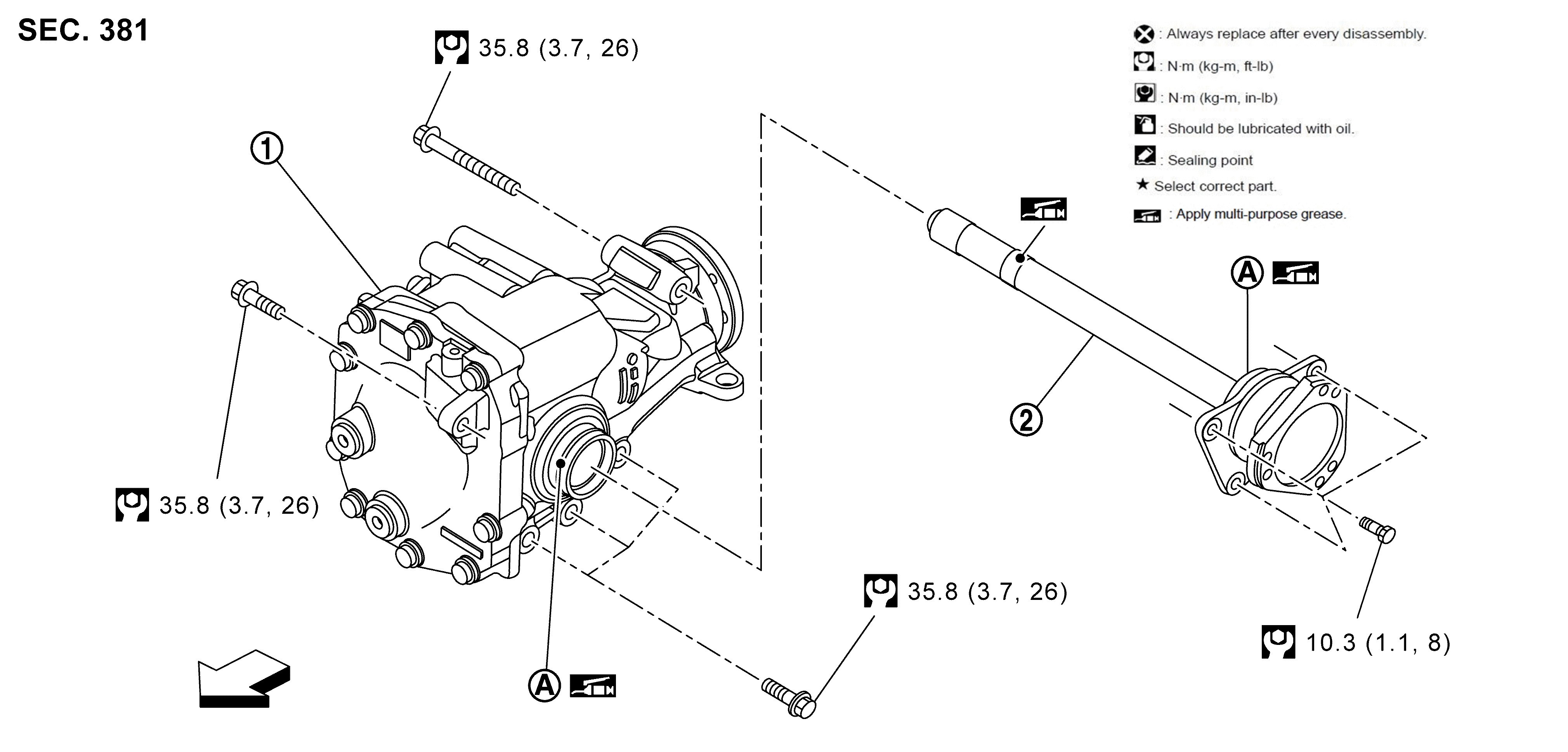

Fig 1: Front Final Drive Assembly Components With Torque Specifications
GNSJSDIA9115GB-115Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front final drive assembly

SYMBOL

Side shaft assembly

SYMBOL

Outer part of O-ring

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)

SYMBOL : Apply multi purpose grease.
