FRONT FINAL DRIVE AIR BREATHER : Removal & Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove front under cover. Refer to FRONT UNDER COVER : Exploded View .
  2. Support engine with a suitable jack.
    CAUTION: Secure engine assembly to a jack.
  3. Remove engine mounting bracket (RH), engine mounting bracket (RH) (lower) and engine mounting insulator (RH). Refer to ENGINE ASSEMBLY : Exploded View .

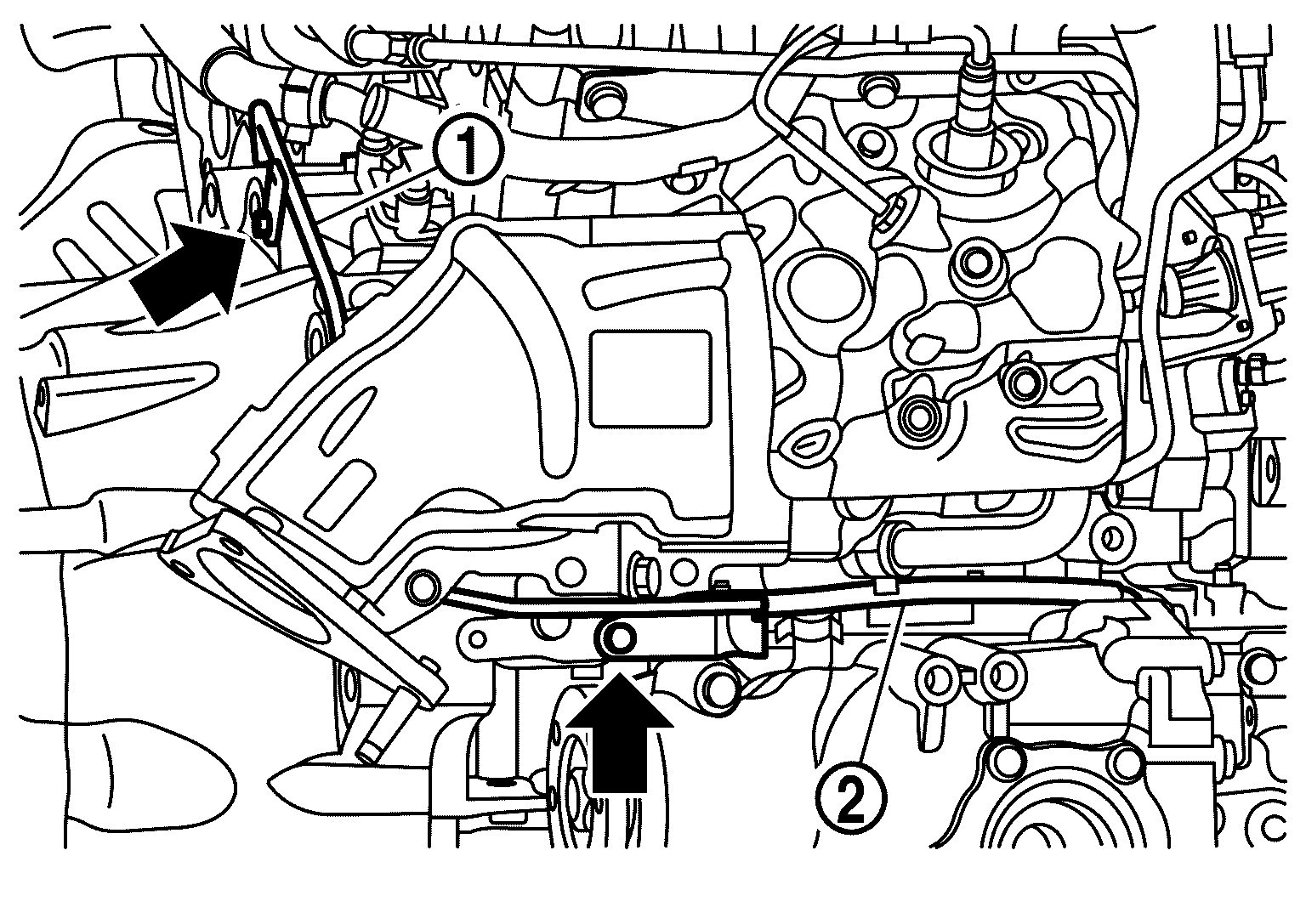

  4. Remove air breather tube SYMBOL and air breather hose SYMBOL .
    GNSJSDIB0020Z-020Courtesy of NISSAN NORTH AMERICA, INC.
