FRONT FINAL DRIVE AIR BREATHER : Removal & Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

For each tightening torque, Refer to FRONT FINAL DRIVE AIR BREATHER : Exploded View .
When installing each air breather hose, make sure there are no pinched or restricted areas on air breather hose caused by bending or winding.

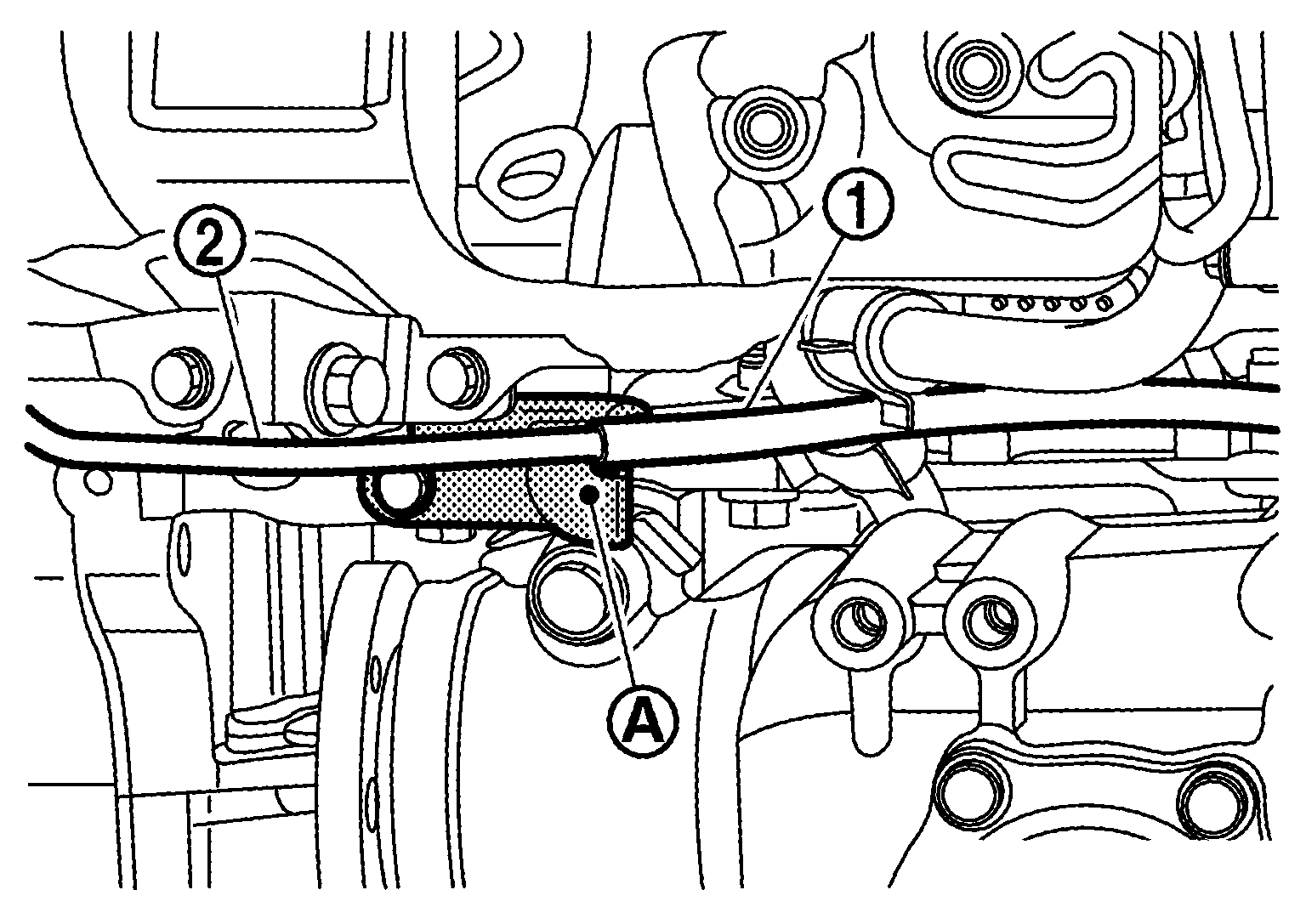

Securely insert air breather hose to the bracket part of air breather tube .

Courtesy of NISSAN NORTH AMERICA, INC.

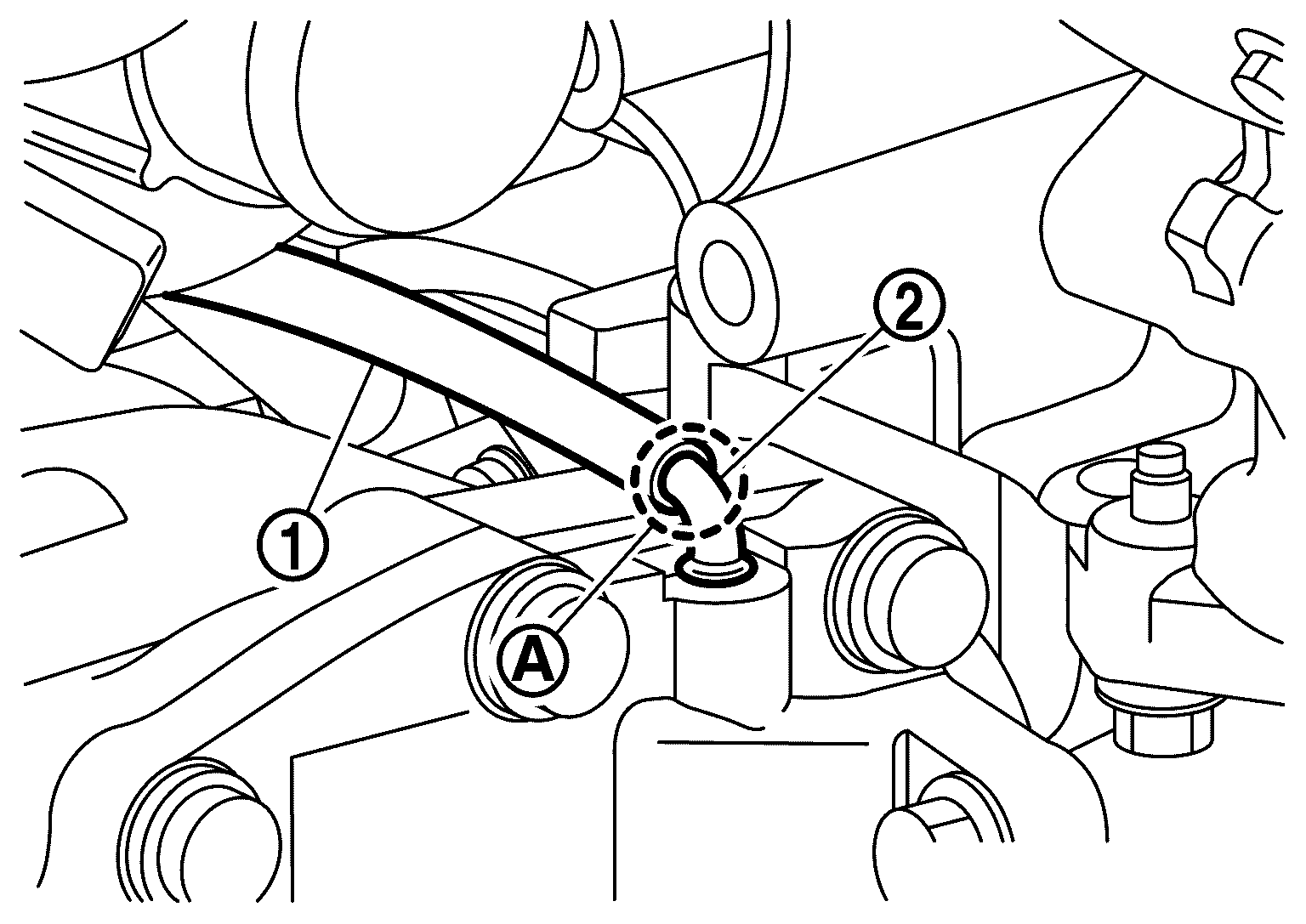

Securely insert air breather hose to the rounded part of breather connector .

Courtesy of NISSAN NORTH AMERICA, INC.
