REAR FINAL DRIVE : Special Service Tool

WARNING: This page is about a different variant/trim than selected.

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number (TechMate No.) Tool name	Description
ST3127S000 (J-25765-A) Preload gauge	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring pinion bearing preload and total preload

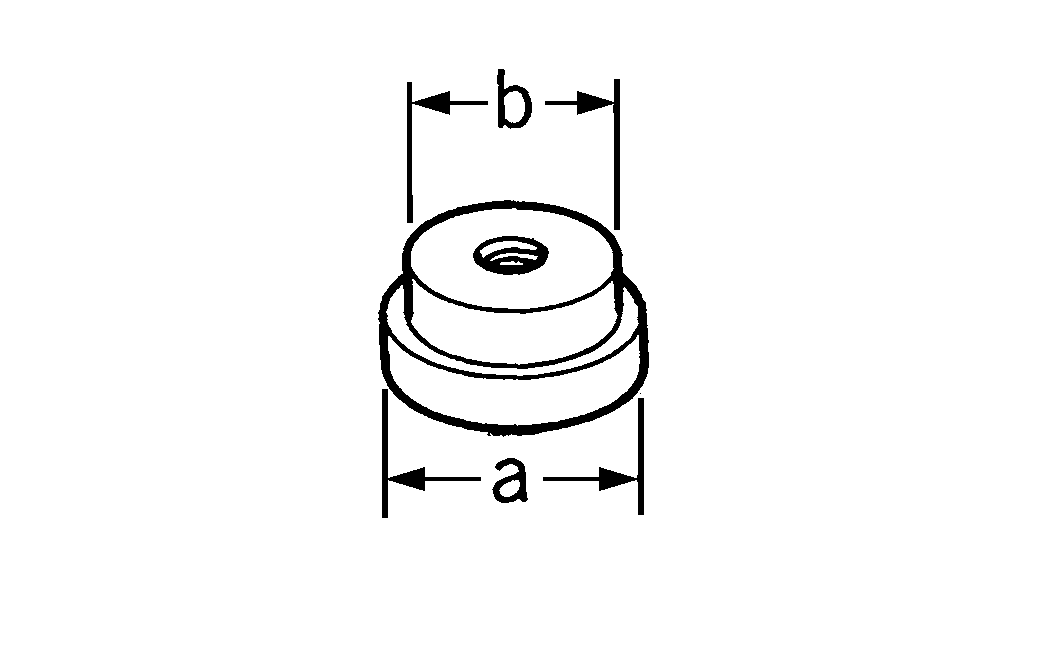

KV40104710 (--) Drift a: 76.3 mm (3.004 in) dia. b: 67.9 mm (2.673 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing front oil seal
KV40104830 (--) Drift a: 70 mm (2.76 in) dia. b: 63.5 mm (2.50 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing side oil seal
ST30613000 (J-25742-3) Drift a: 72 mm (2.83 in) dia. b: 48 mm (1.89 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and Installing rear cover (2 pieces are used.) Removing and Installing differential case (2 pieces are used.) Installing pinion front bearing outer race

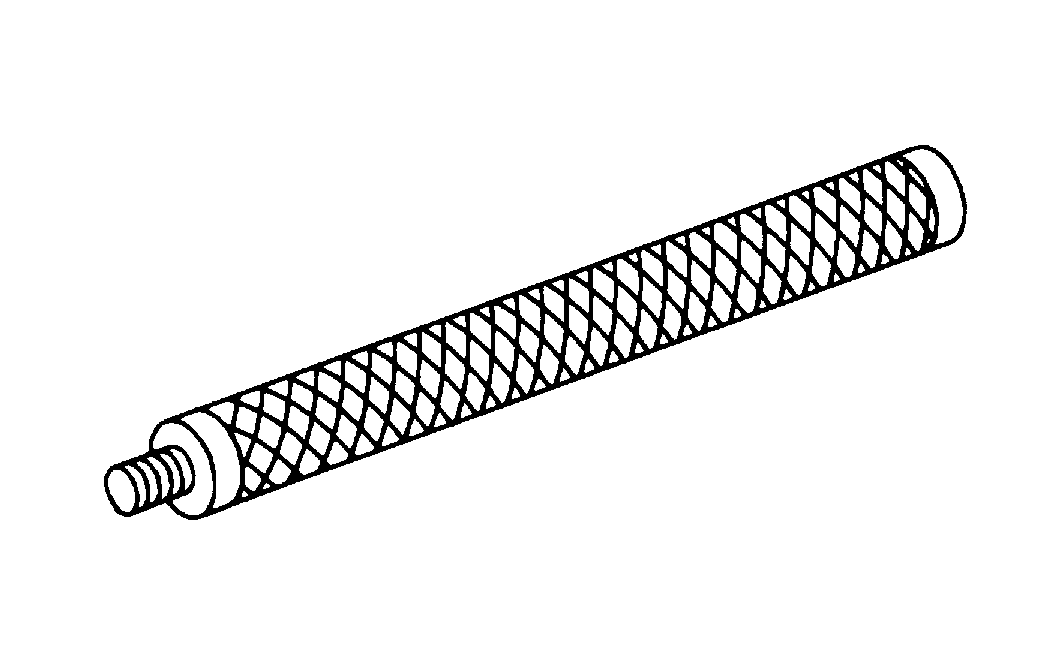

ST30611000 (J-25742-1) Drift bar	Courtesy of NISSAN NORTH AMERICA, INC.	Installing pinion front bearing outer race (Use with ST30613000)

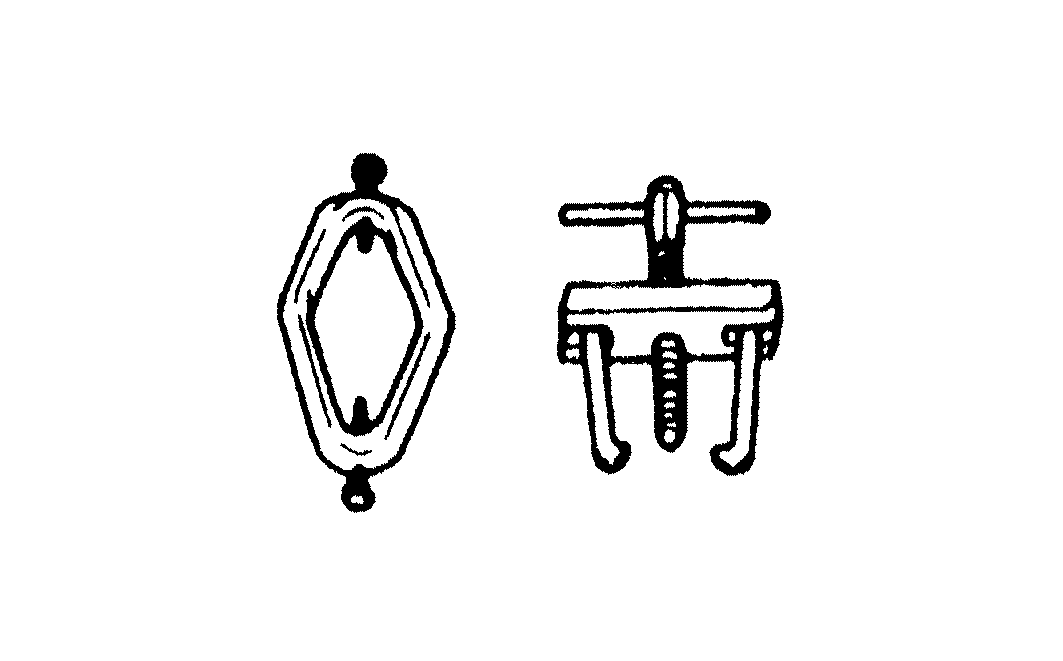

ST33051001 (J-22888-20) Puller	Courtesy of NISSAN NORTH AMERICA, INC.	Removing side bearing inner race

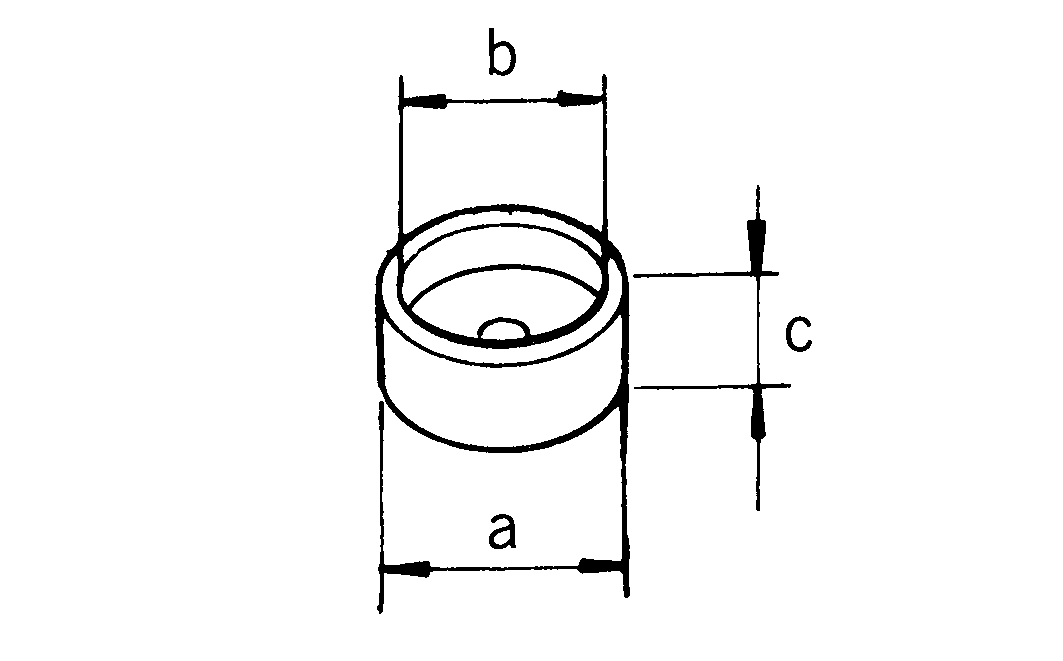

KV40104920 (--) Adaptor a: 44.7 mm (1.760 in) dia. b: 41 mm (1.61 in) dia. c: 15 mm (0.59 in)	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing side bearing inner race

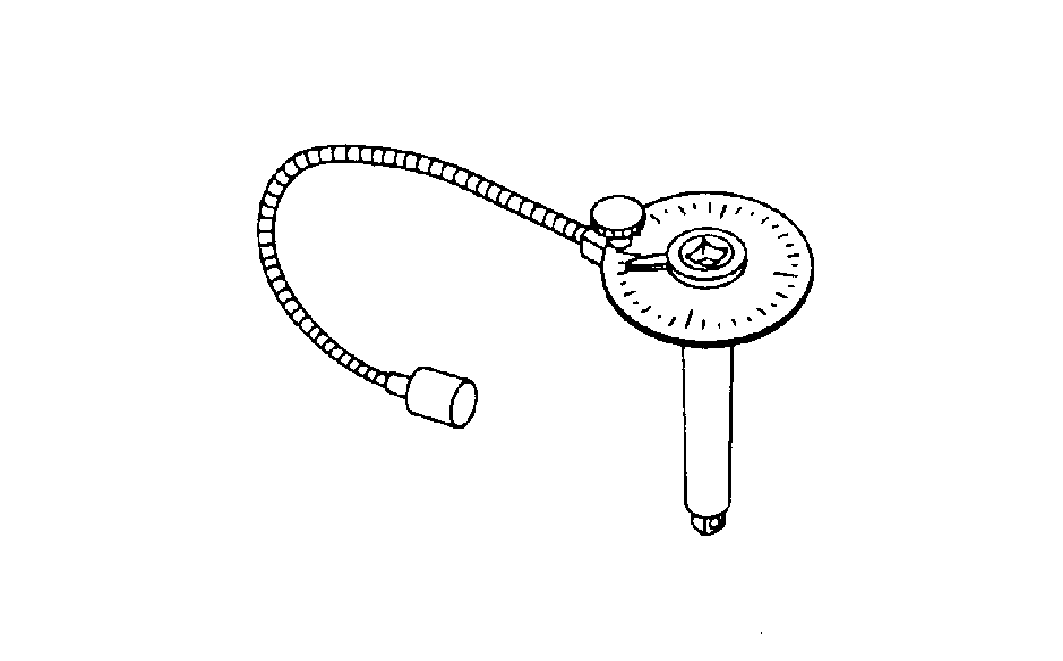

KV10112100 (BT-8653-A) Angle wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Tightening the drive gear mounting bolt

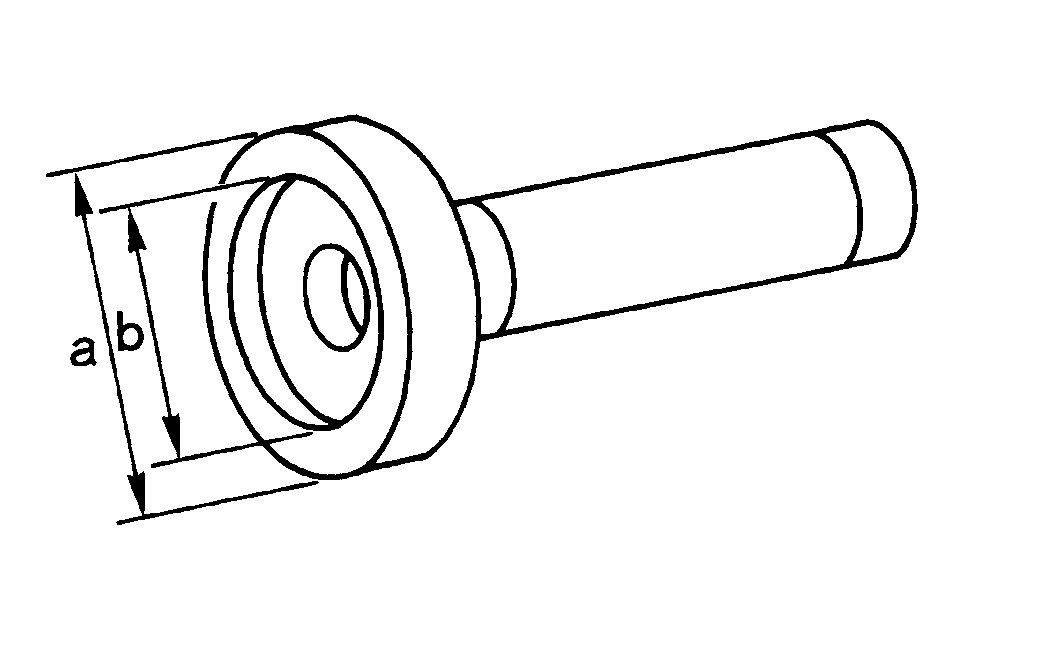

KV38100200 (J-26233) Drift a: 65 mm (2.56 in) dia. b: 49 mm (1.93 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing side bearing inner race

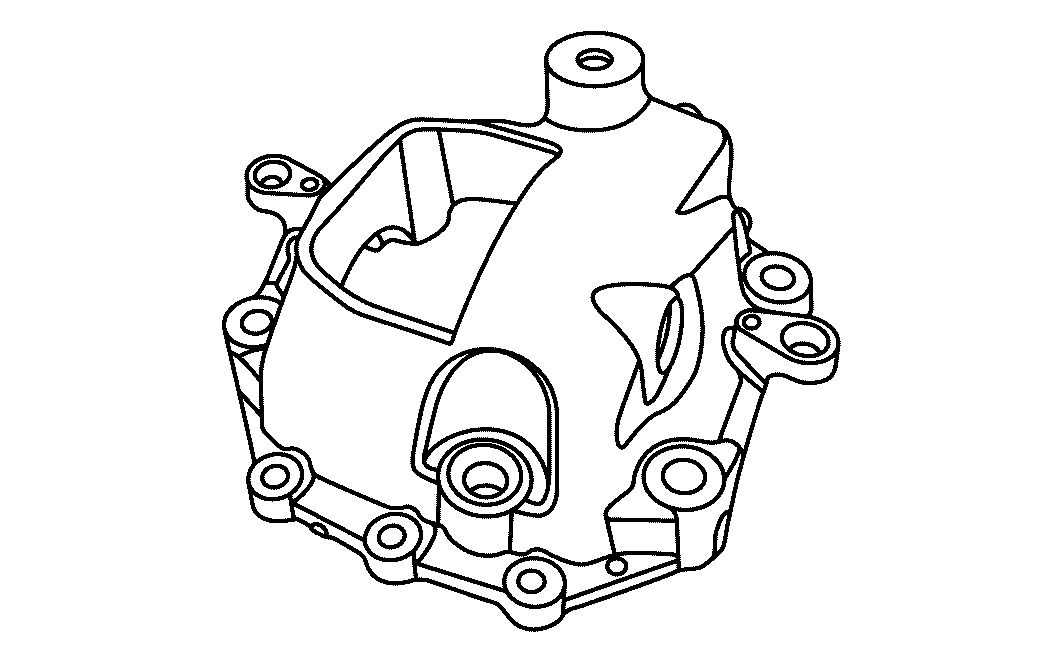

KV385J9010 (--) Dummy cover set	Courtesy of NISSAN NORTH AMERICA, INC.	Checking backlash Checking drive gear runout Checking tooth contact
ST30720000 (J-25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing pinion rear bearing outer race

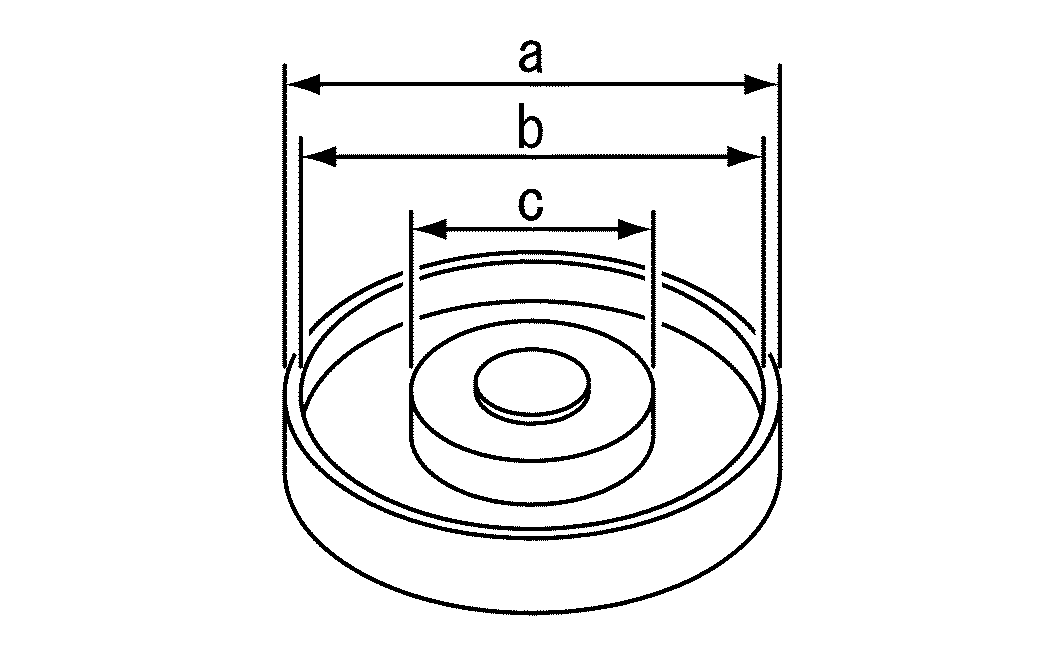

KV40105230 (--) Drift a: 92 mm (3.62 in) dia. b: 86 mm (3.39 in) dia. c: 45 mm (1.77 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing pinion rear bearing outer race

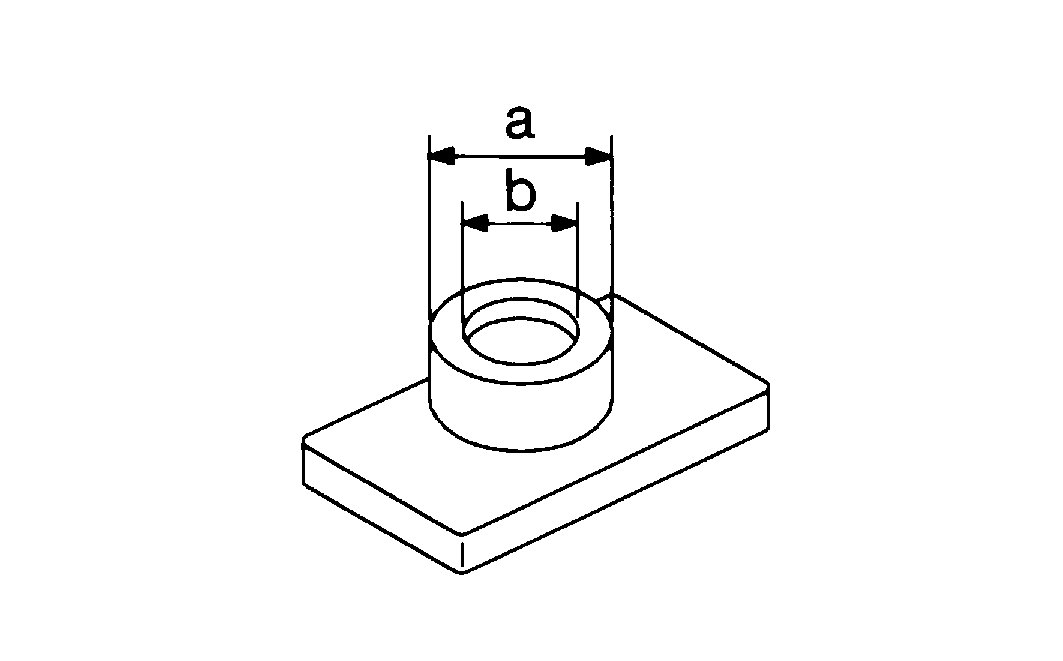

ST38220000 (--) Press stand a: 75 mm (2.95 in) dia. b: 63 mm (2.48 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing pinion front bearing inner race
