AWD models

WARNING: This page is about a different variant/trim than selected.
  1. The ignition switch OFF.

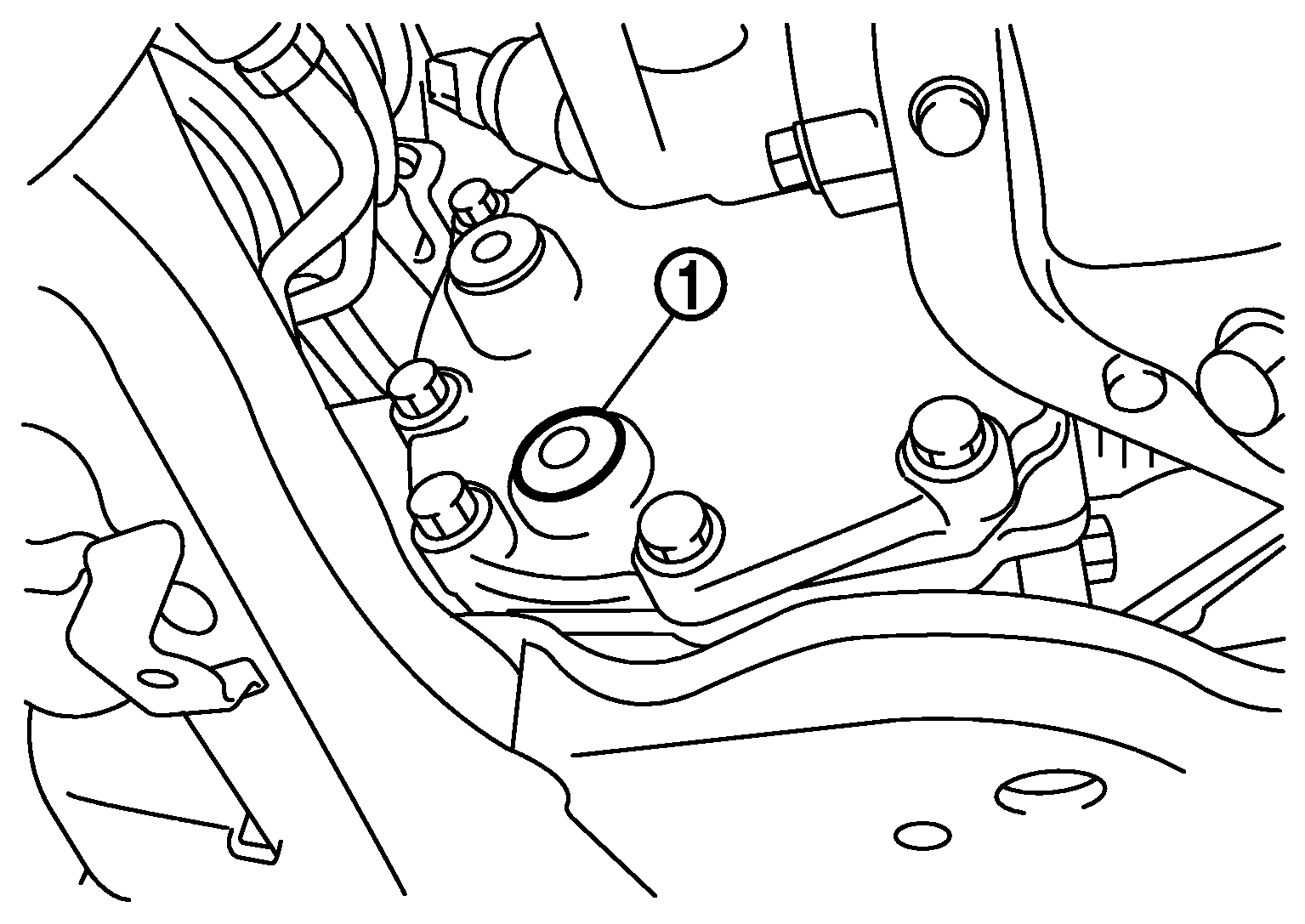

  2. Remove drain plug SYMBOL and drain gear oil.
    GNSJPDID0189Z-189Courtesy of NISSAN NORTH AMERICA, INC.
  3. Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Exploded View .
    CAUTION: Never reuse gasket.
