FRONT FINAL DRIVE SIDE SHAFT : Disassembly & Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

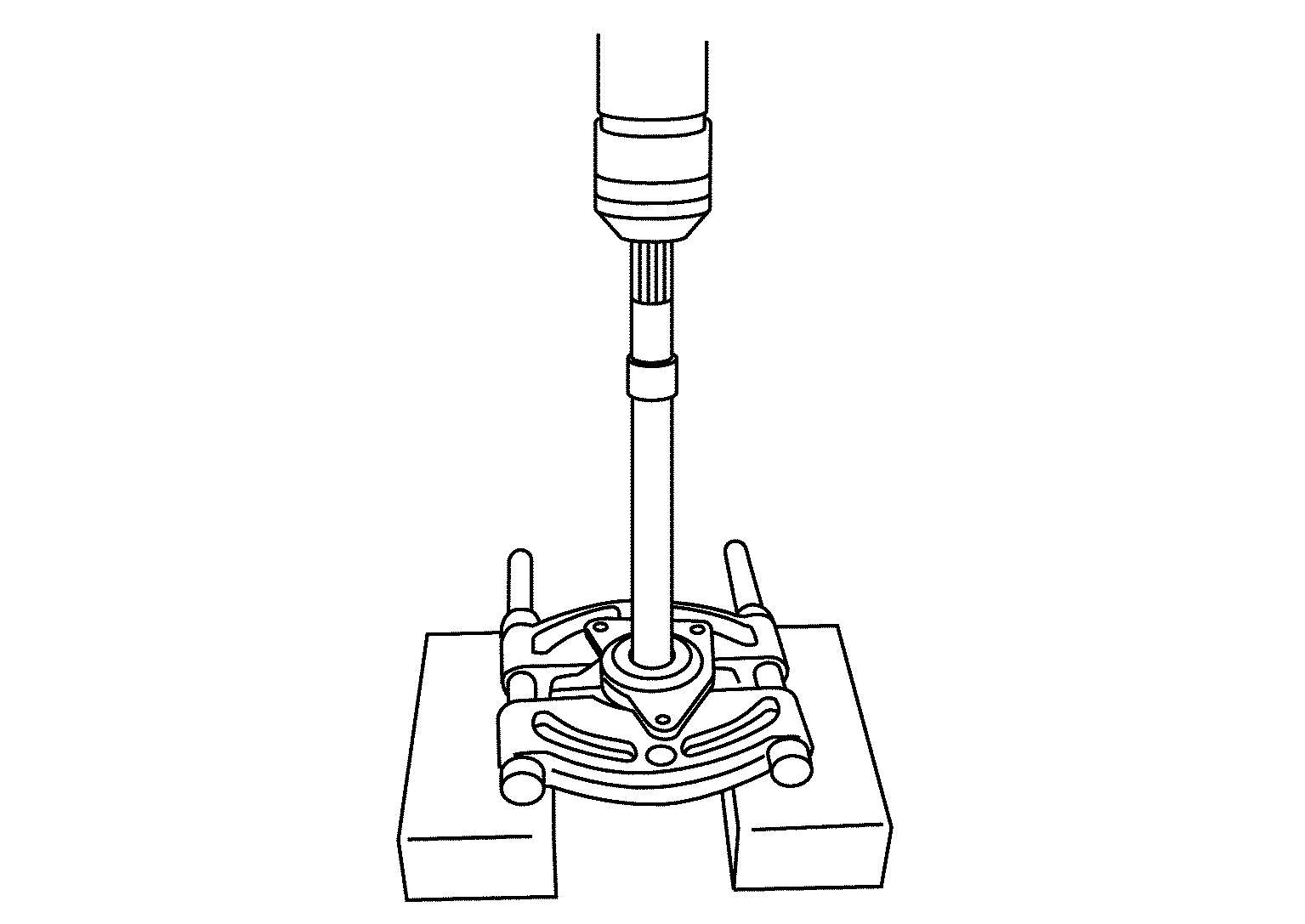

  1. Hold extension tube retainer with separator (commercial service tool), then press out side shaft using a press.
    G04076237Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove dust seal from side shaft.

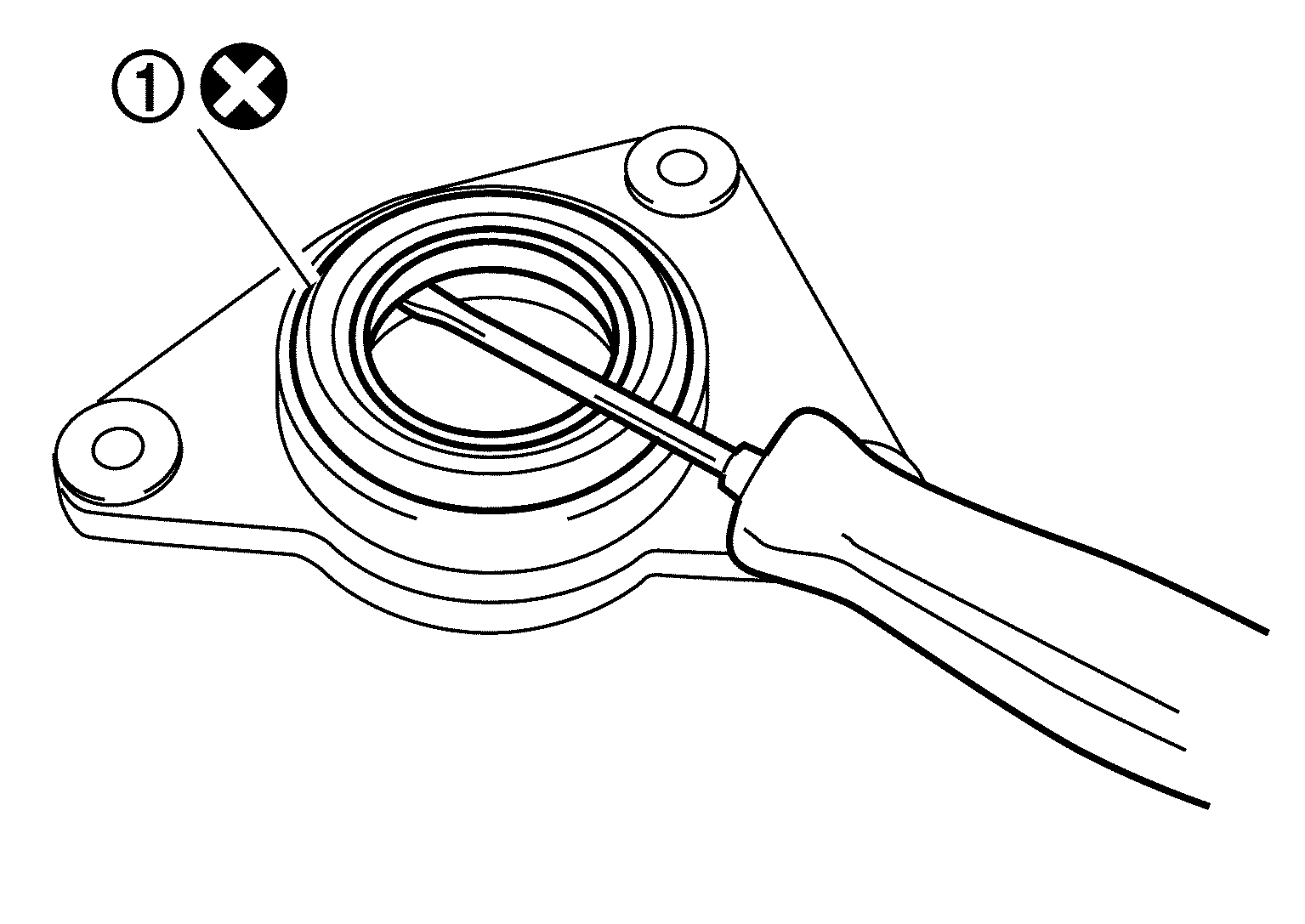

  3. Remove side shaft oil seal SYMBOL from extension tube retainer with oil seal remover (commercial service tool).
    G04076238Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never damage extension tube retainer.
  4. Remove side shaft bearing from extension tube retainer.
  5. Remove O-ring from extension tube retainer.
  6. Perform inspection after disassembly. Refer to FRONT FINAL DRIVE SIDE SHAFT : Inspection .
