FRONT FINAL DRIVE SIDE SHAFT : Disassembly & Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

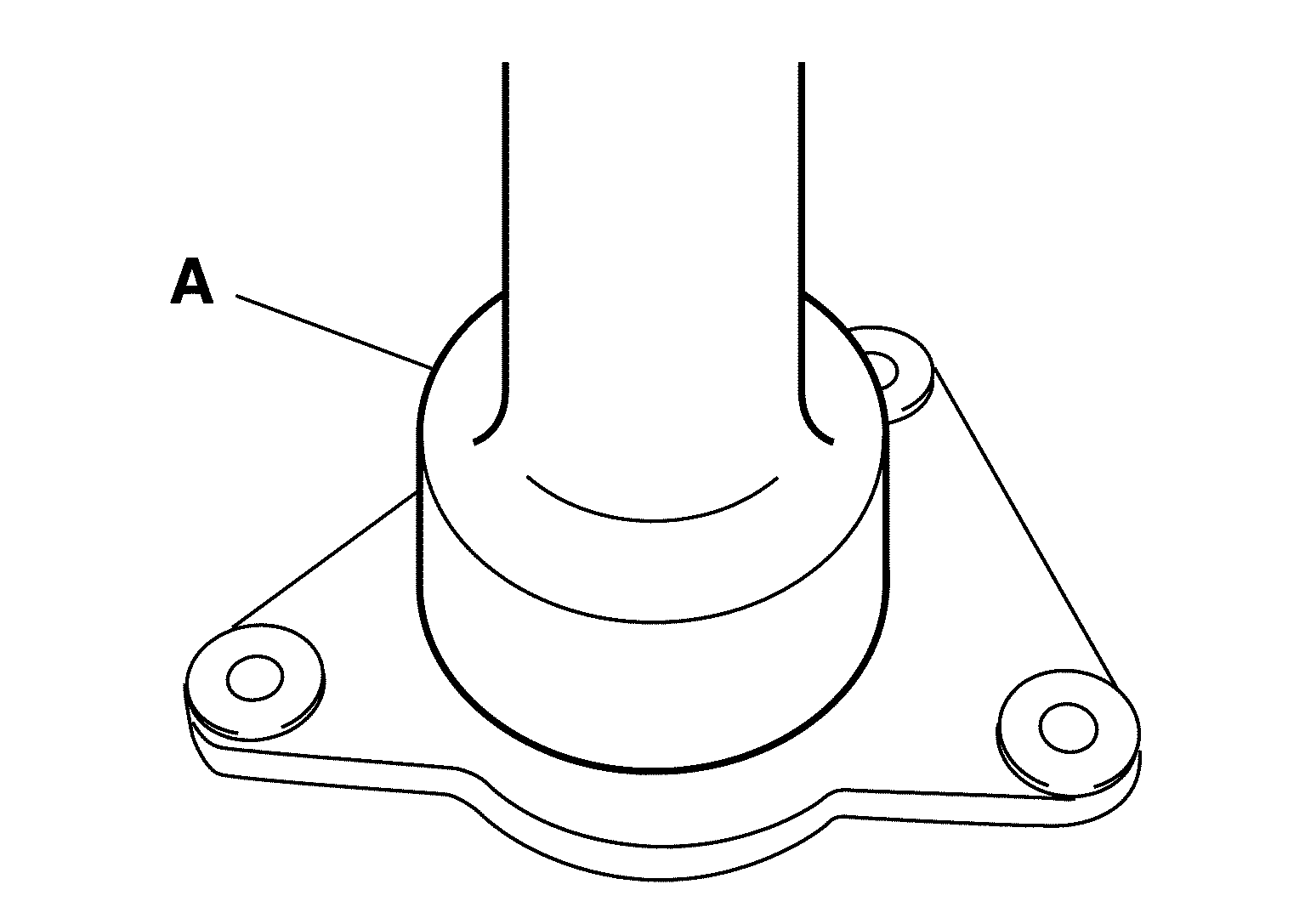

  1. Using the drift (A) [SST: KV38100200 (--)], install side shaft oil seal.
    G04076293Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
  2. Install dust seal.

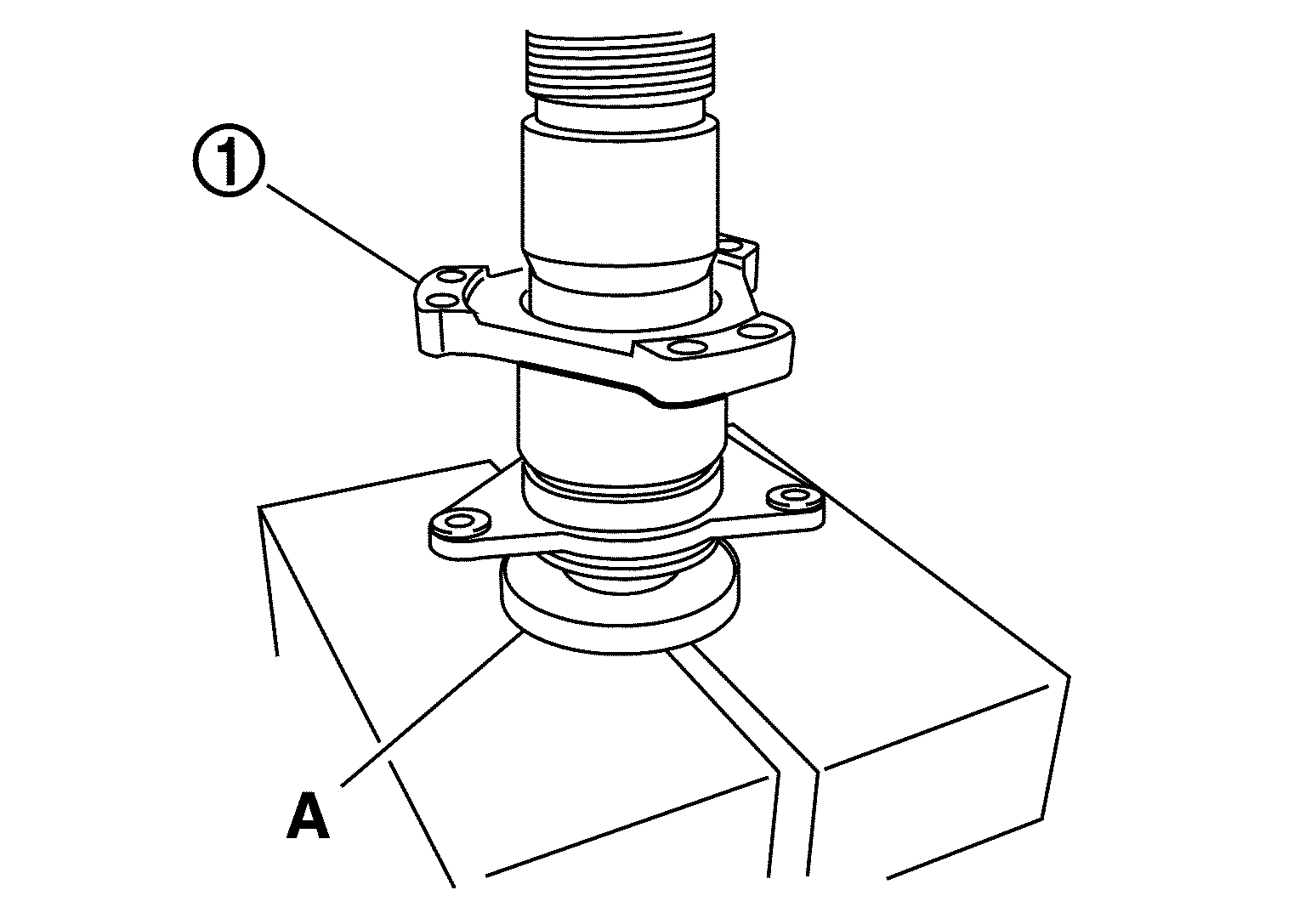

  3. Support side shaft bearing with the drift (A) [SST: ST30032000 (J-26010-01)], then press side shaft SYMBOL into the side shaft bearing together with extension retainer using a press.
    G04076294Courtesy of NISSAN NORTH AMERICA, INC.
  4. Apply multi-purpose grease to O-ring, and install it to extension tube retainer.
    CAUTION: Never reuse O-ring.
