FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Adjustment: Backlash

WARNING: This page is about a different variant/trim than selected.

Before inspection and adjustment, drain gear oil.

  1. Remove carrier cover. Refer to FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Disassembly & Assembly .

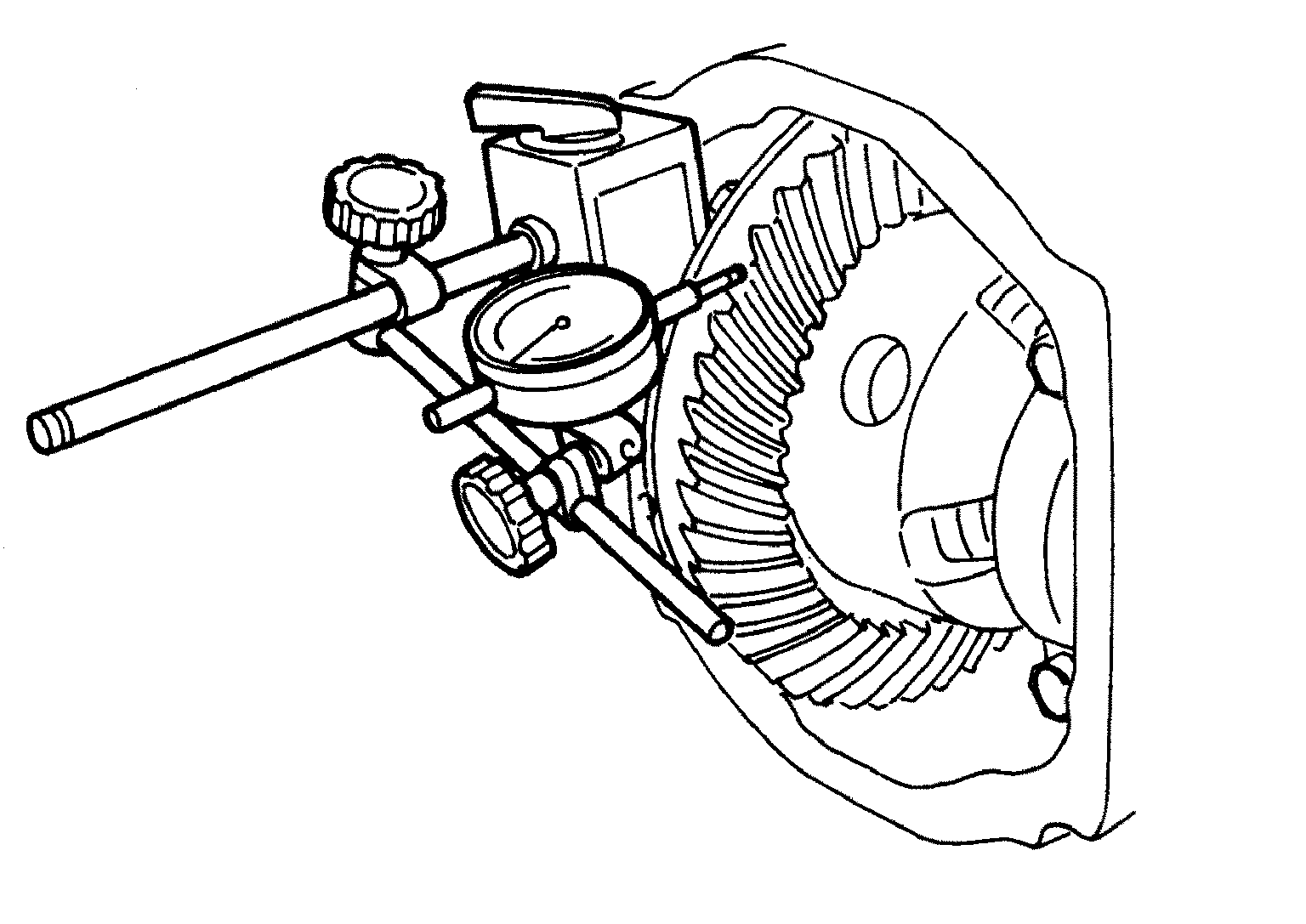

  2. Fit a dial indicator to the drive gear face to measure the backlash.
    GNSSDIA09J-009Courtesy of NISSAN NORTH AMERICA, INC.

    Backlash

    : Refer to FRONT FINAL DRIVE : Service Data .
    • If the backlash is outside of the specified value, change the thickness of side bearing adjusting washer.

      When the backlash is large:

      Decrease side bearing adjusting washer thickness. For selecting adjusting washer, refer to the latest parts information.

      When the backlash is small:

      Increase side bearing adjusting washer thickness. For selecting adjusting washer, refer to the latest parts information.
