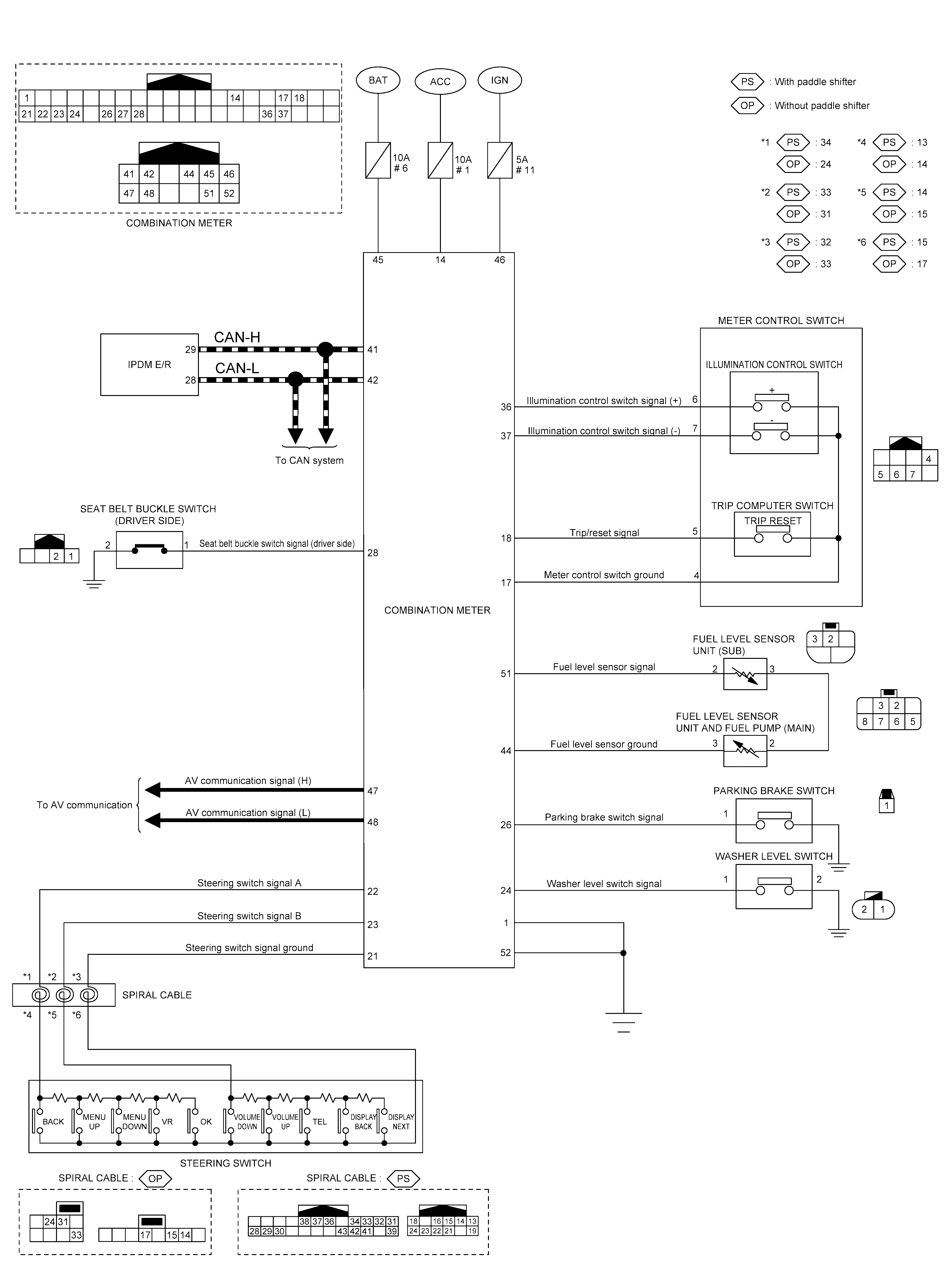

Home >> Infiniti >> 2021 >> Q50 Signature Edition, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator (Diagnostics) >> Description >> System >> Meter System >> Circuit Diagram
