Component Inspection

1. Remove steering switch. Refer to STEERING SWITCH : Removal & Installation .
2. Measure the resistance between the steering switch connector.
   Without paddle shifter



   Steering switch		Condition	Resistance (Approx.) Ohm
   Terminal	Terminal
   14	17	OK switch is pressed	1982 - 2064
   		VR switch is pressed	708 - 738
   		MENU DOWN switch is pressed	314 - 328
   		MENU UP switch is pressed	118 - 124
   		BACK switch is pressed	0
   15		DISPLAY NEXT switch is pressed	1982 - 2064
   		DISPLAY BACK switch is pressed	708 - 738
   		TEL switch is pressed	314 - 328
   		VOL UP switch is pressed	118 - 124
   		VOL DOWN switch is pressed	0

   Courtesy of NISSAN NORTH AMERICA, INC.

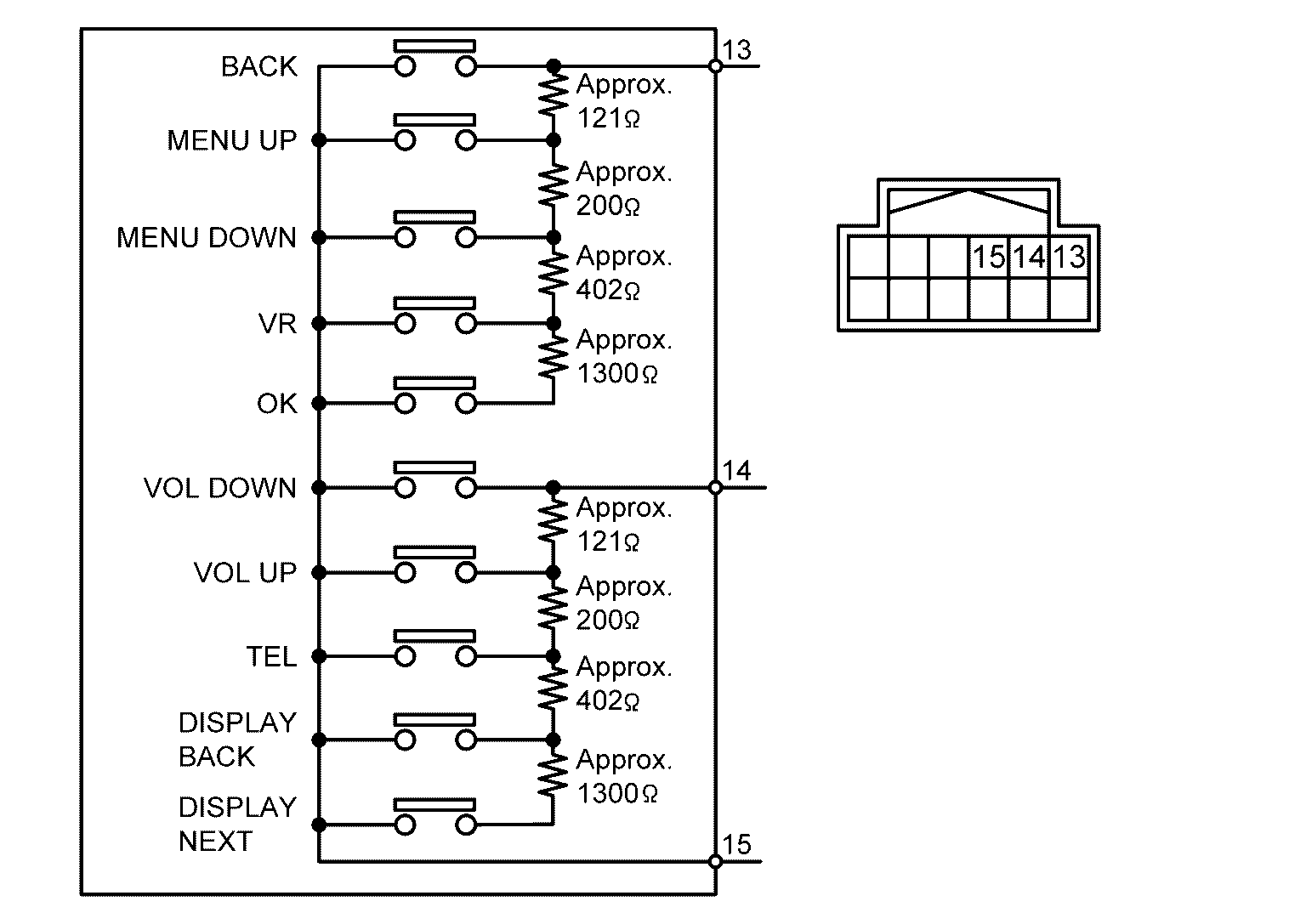

   With paddle shifter



   Steering switch		Condition	Resistance (Approx.) Ohm
   Terminal	Terminal
   13	15	OK switch is pressed	1982 - 2064
   		VR switch is pressed	708 - 738
   		MENU DOWN switch is pressed	314 - 328
   		MENU UP switch is pressed	118 - 124
   		BACK switch is pressed	0
   14		DISPLAY NEXT switch is pressed	1982 - 2064
   		DISPLAY BACK switch is pressed	708 - 738
   		TEL switch is pressed	314 - 328
   		VOL UP switch is pressed	118 - 124
   		VOL DOWN switch is pressed	0

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace steering switch. Refer to STEERING SWITCH : Removal & Installation .
