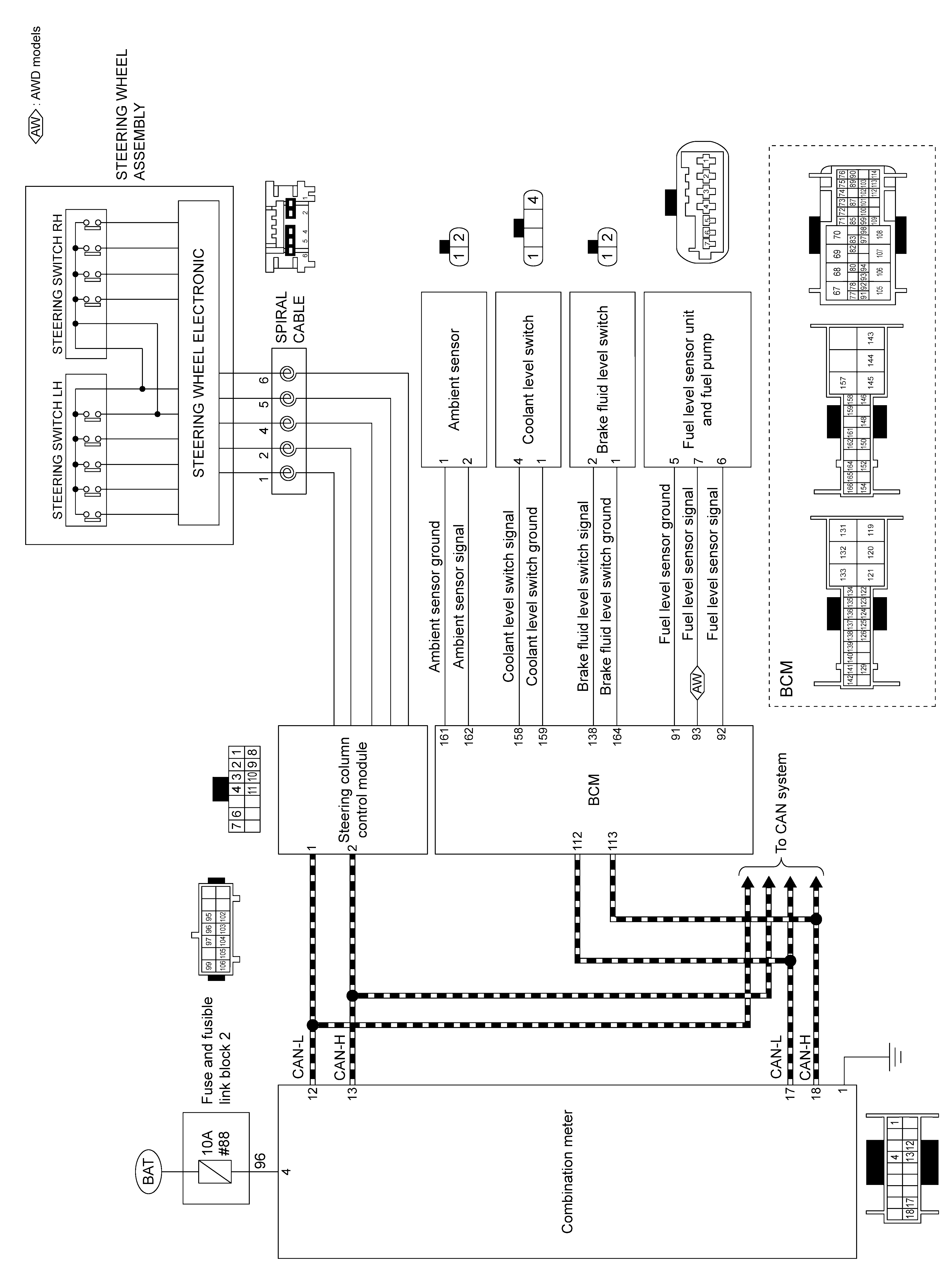

Home >> Infiniti >> 2019 >> QX30 Pure >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> System >> Circuit Diagram
