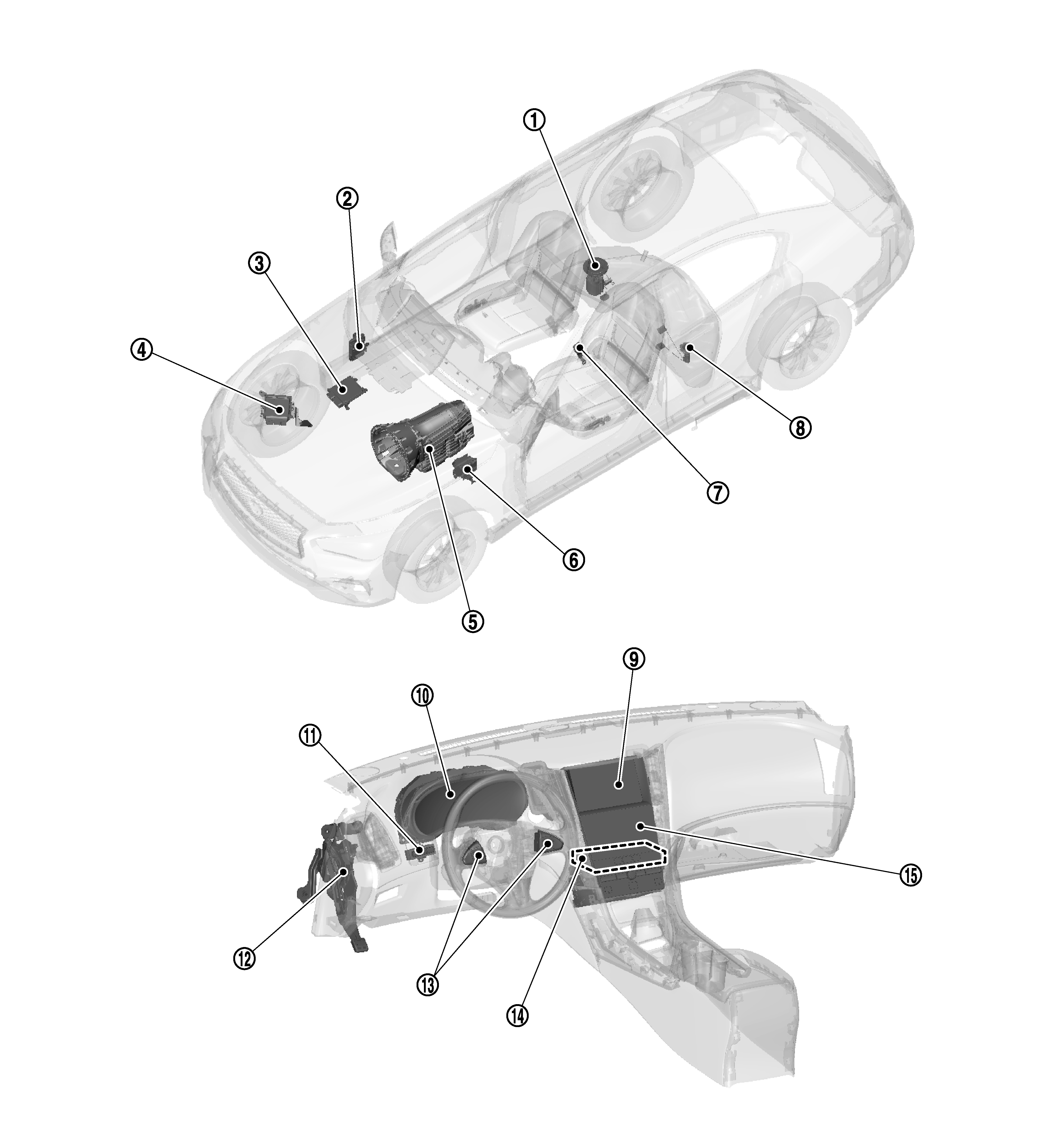

Component Location

No.

Component

Function

Fuel level sensor unit (main)

Transmits the fuel level sensor signal to the combination meter.

BCM

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

ECM (2.0L turbo gasoline engine models)

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to the appropriate service information for detailed installation location.

ECM (VR30DDTT engine models)

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

TCM

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

ABS actuator and electric unit (control unit)

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Seat belt buckle switch (driver side)

Transmits the seat belt buckle switch signal (driver side) to the combination meter.

Fuel level sensor unit (sub)

Transmits the fuel level sensor signal to the combination meter.

Display control unit

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Combination meter

Refer to Combination Meter .

Meter control switch

Refer to Meter Control Switch .

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

Steering switch

Refer to Steering Switch .

A/C auto amp.

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Integral switch

Transmits the meter setting request signal to the combination meter.
