Removal and Installation: Removal

WARNING: Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 minutes or more.
CAUTION: When removing, always use a remover tool that is made of plastic.
  1. Release front pillar portion of front body side welt LH. Refer to Removal and Installation .
  2. Remove instrument side finisher LH.

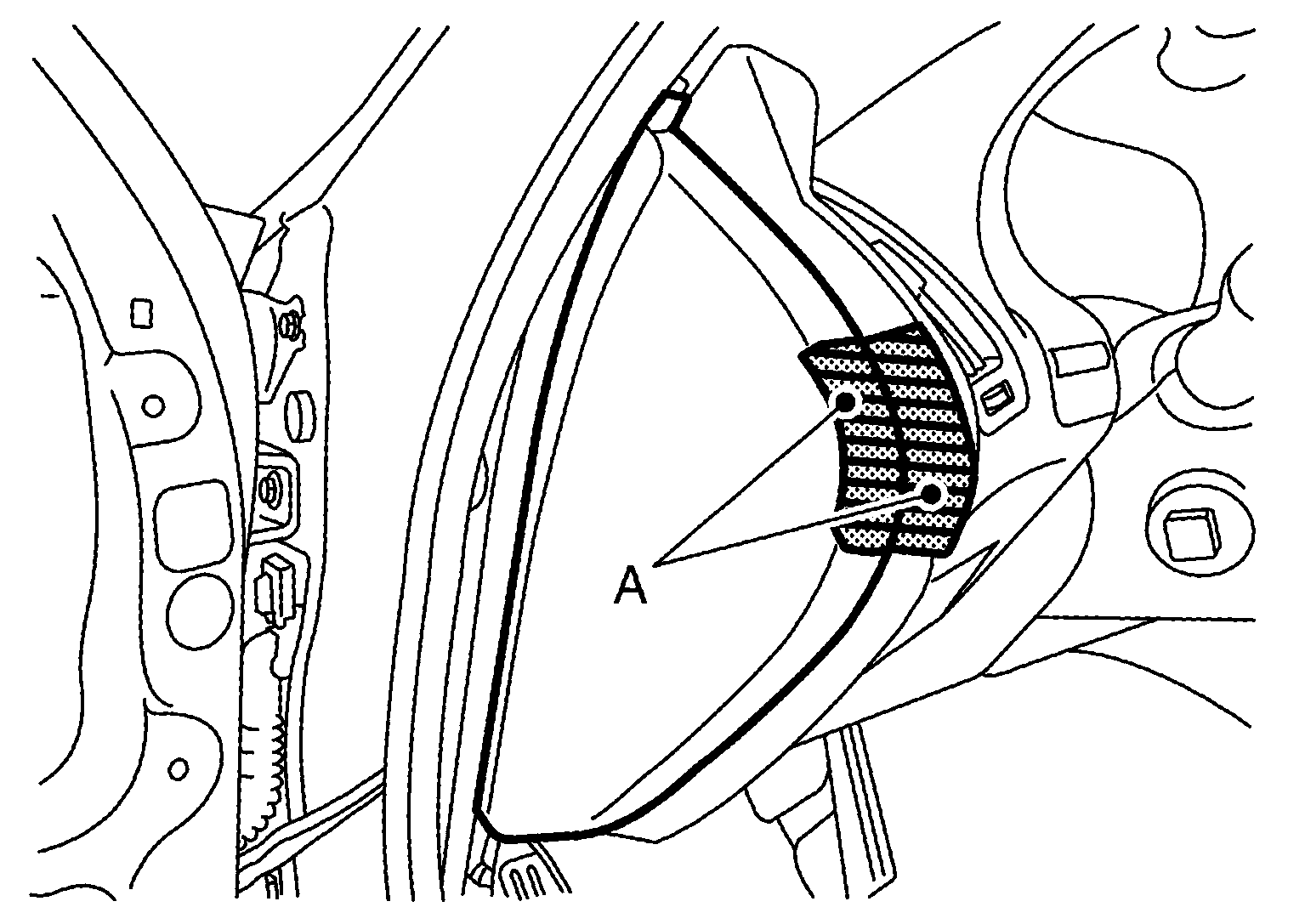

    1. Apply protective tape (A) on the part to protect it from damage.
      GNSJMJIA8893Z-893Courtesy of NISSAN NORTH AMERICA, INC.

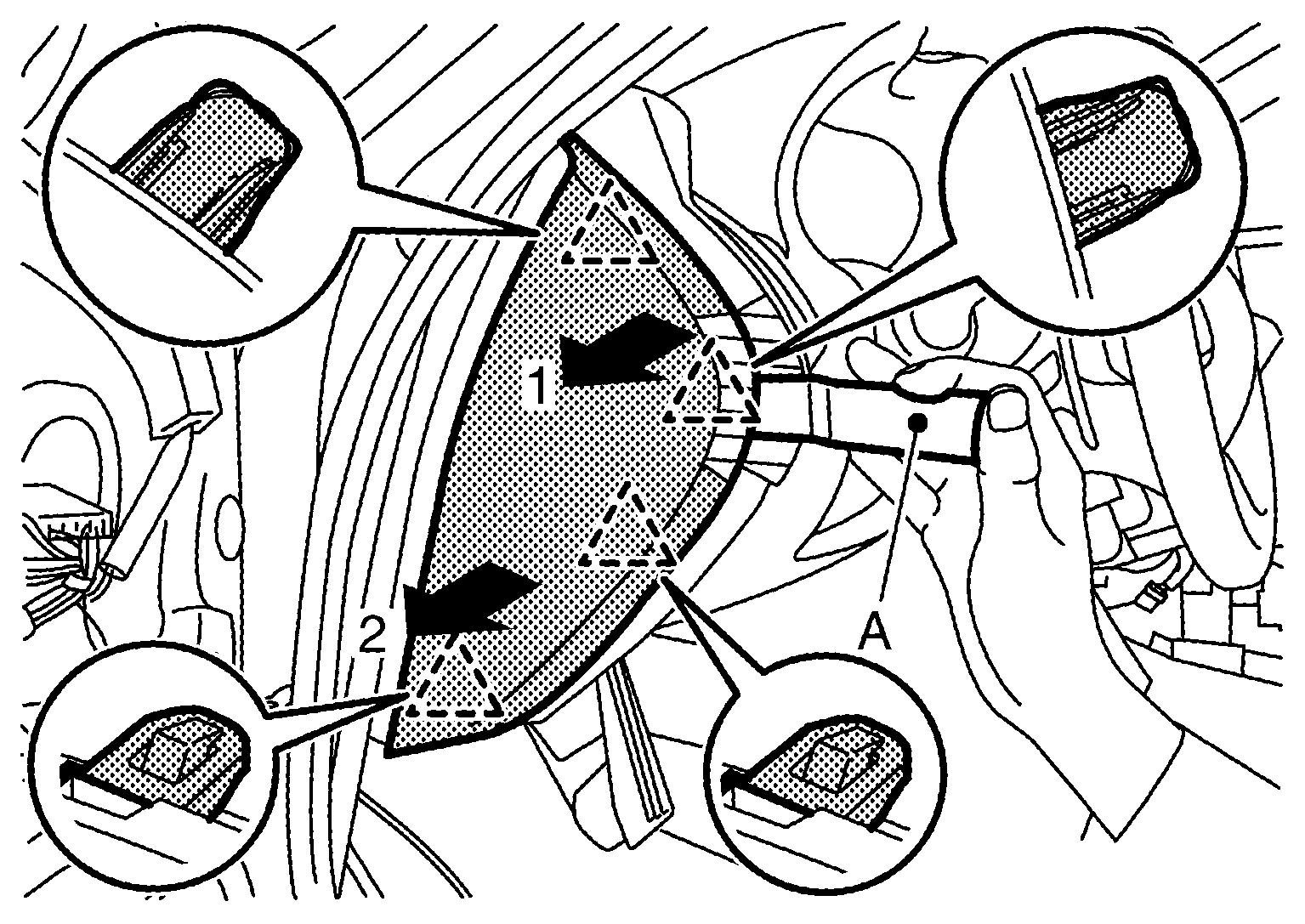

    2. Pull instrument side finisher LH, and then disengage pawls using a remover tool (A) according to the numerical order 1->2 as shown in the illustration.
      GNSJMJIA8894Z-894Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
  3. Remove front pillar garnish LH. Refer to Removal and Installation .
  4. Remove instrument lower panel LH.
    1. Disconnect hood lock control cable. Refer to Removal and Installation .

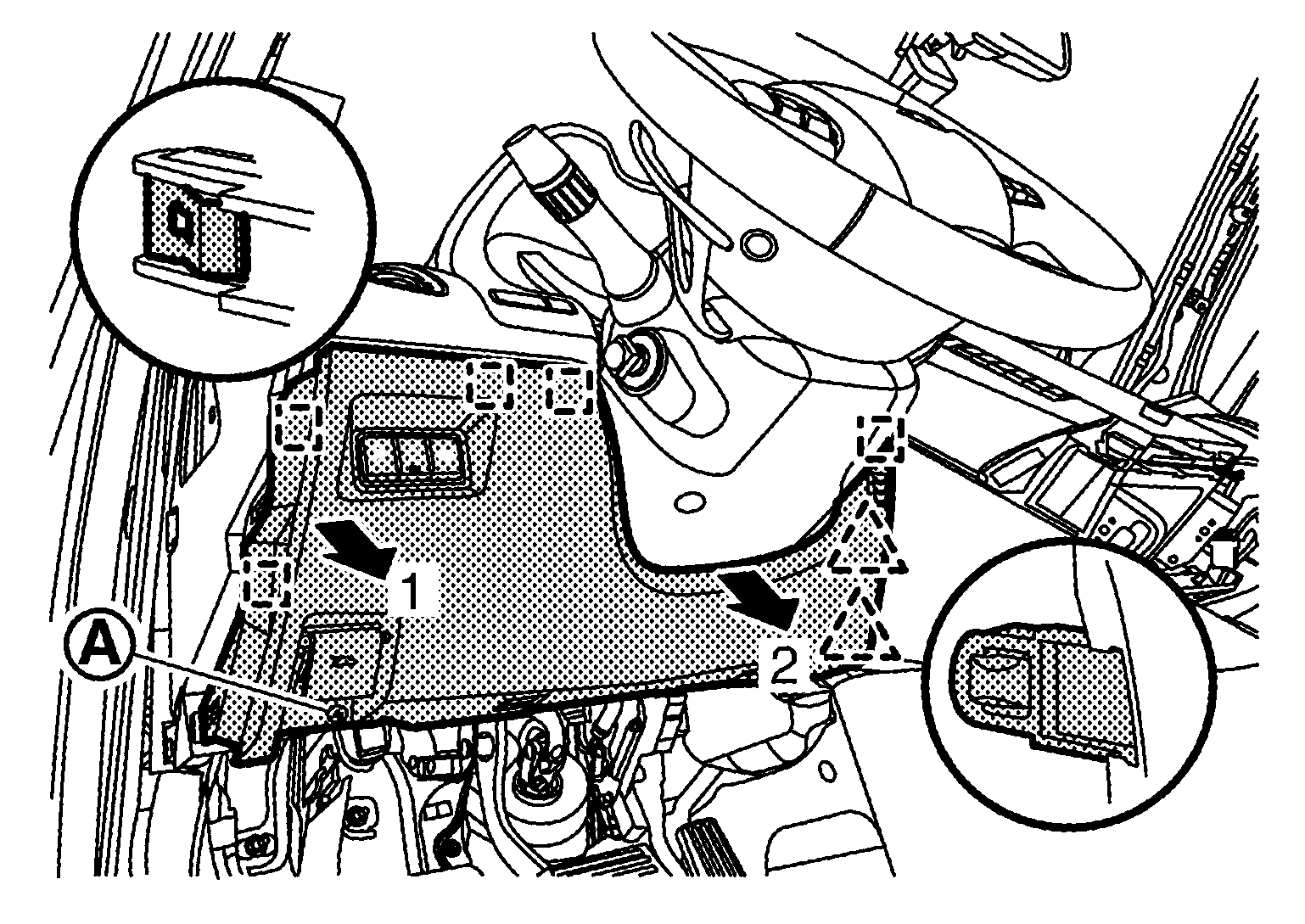

    2. Remove fixing screw SYMBOL .
      GNSJMJIA8895Z-895Courtesy of NISSAN NORTH AMERICA, INC.
    3. Pull back instrument lower panel LH, and then disengage pawls and metal clips according to the numerical order 1->2 as shown in the illustration.

      SYMBOL

      : Pawl

      SYMBOL

      : Metal clip
      CAUTION: Remove the pawls and metal clips slowly so that they are not damaged.

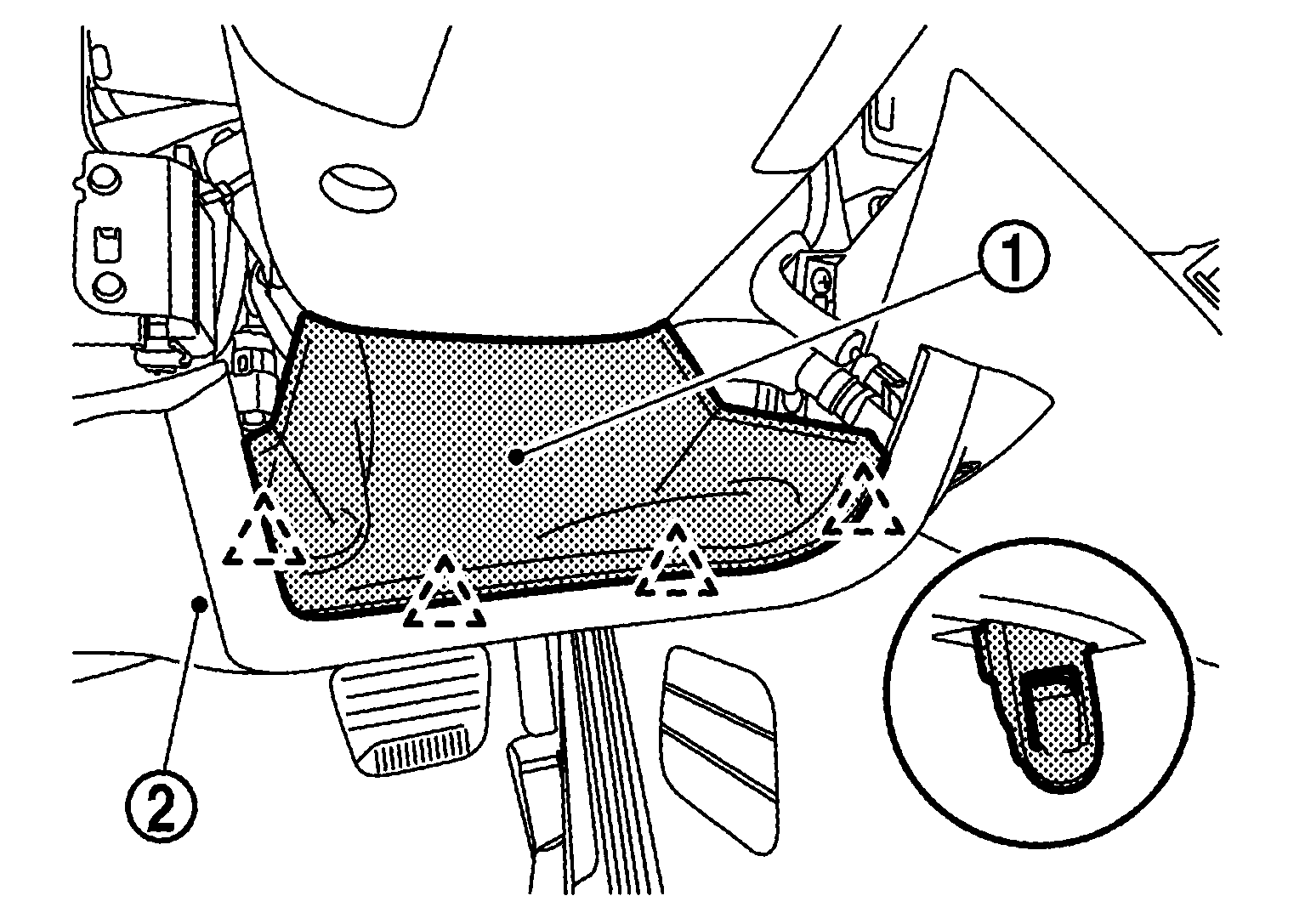

    4. Disengage steering column lower cover apron portion SYMBOL fixing pawls from instrument lower panel LH SYMBOL .
      GNSJMJIA8896Z-896Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
    5. Disconnect harness fixing clips, and then remove harness connectors and aspirator duct.

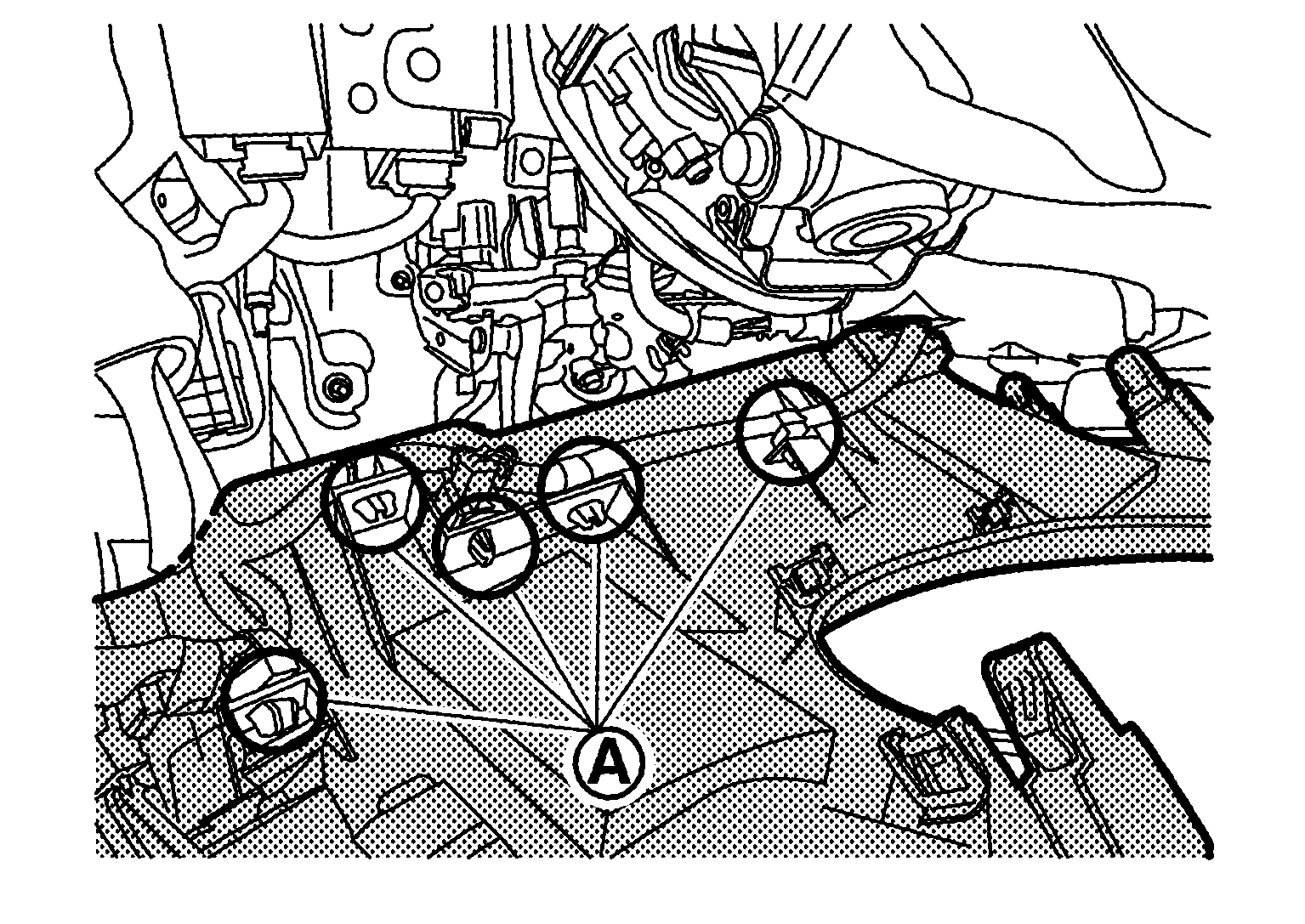

      CAUTION: Harness is installed on the back side of instrument lower panel LH using clips SYMBOL as shown in the illustration. Remove instrument lower panel LH slowly without pulling it strongly.
      GNSJMJIA8897Z-897Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove center console assembly. Refer to Removal and Installation .
  6. Remove instrument side panel LH.

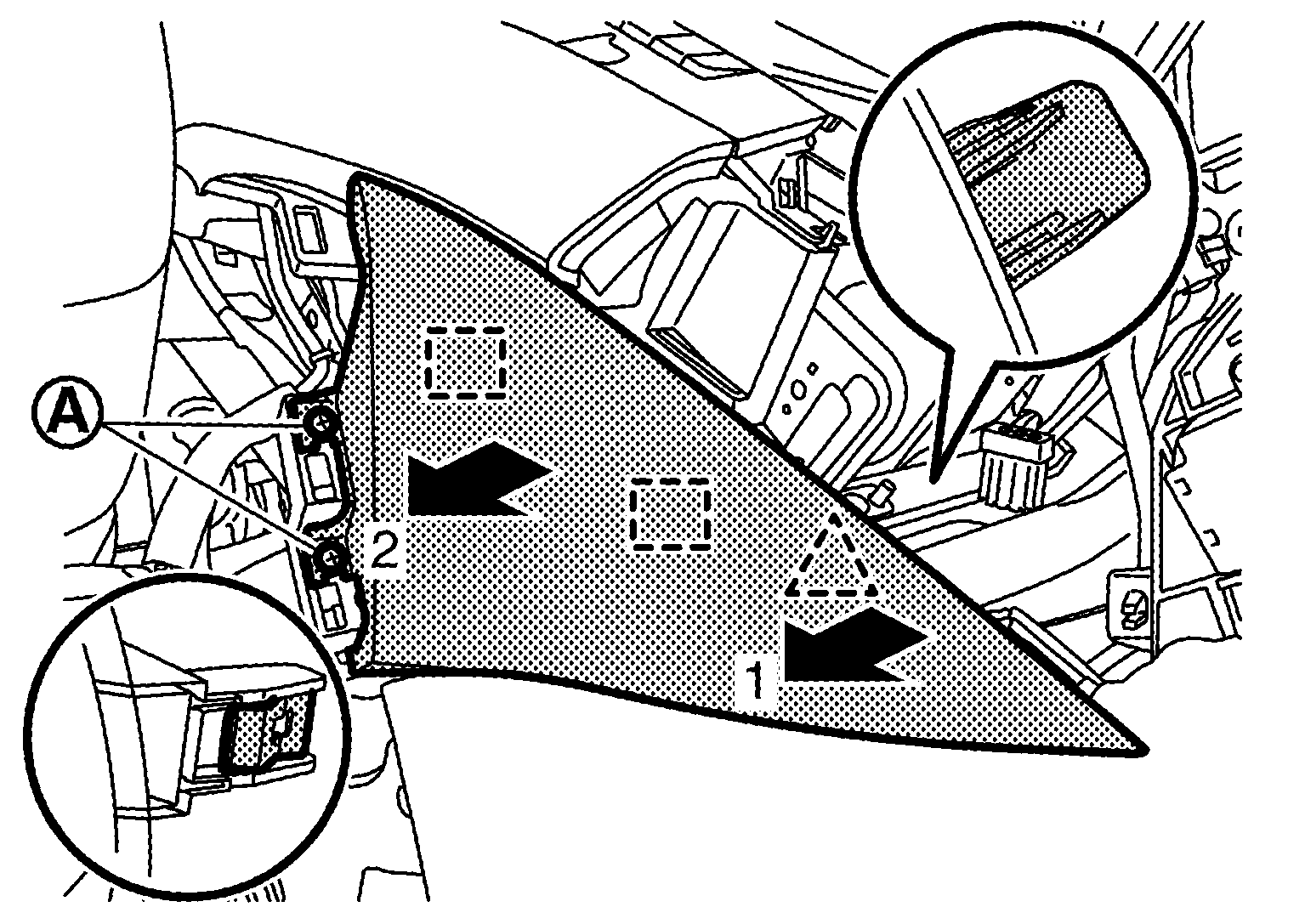

    1. Remove fixing screws SYMBOL .
      GNSJMJIA8898Z-898Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull instrument side panel LH, and then disengage pawls and metal clips according to the numerical order 1->2 as shown in the illustration.

      SYMBOL

      : Pawl

      SYMBOL

      : Metal clip
  7. Remove driver air bag module. Refer to Removal and Installation .
  8. Remove steering wheel. Refer to the followings:
  9. Remove steering column covers.
    1. Remove steering column masks with a remover tool.

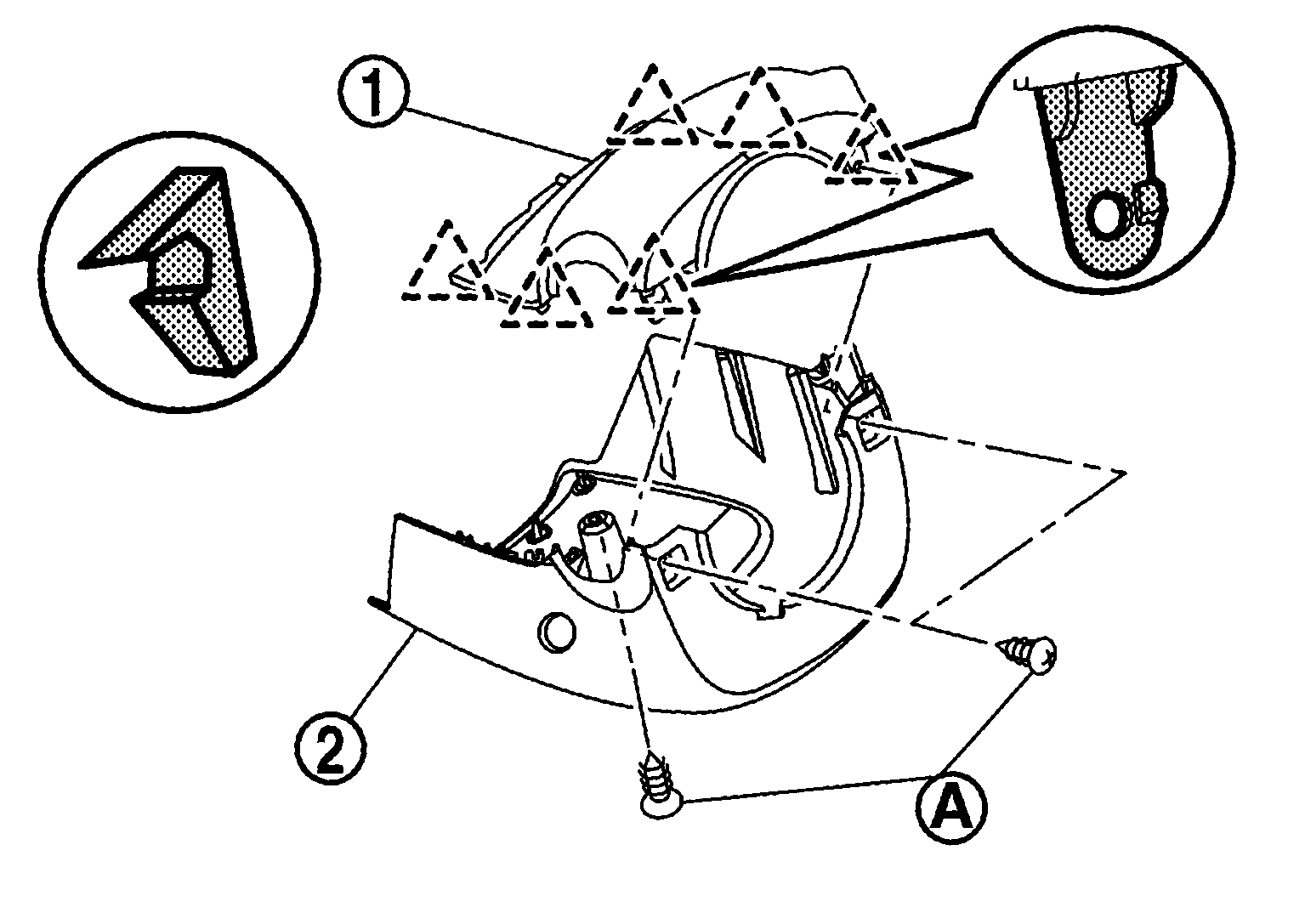

    2. Remove fixing screws SYMBOL from steering column upper cover SYMBOL and steering column lower cover SYMBOL .
      GNSJMJIA8906Z-906Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl

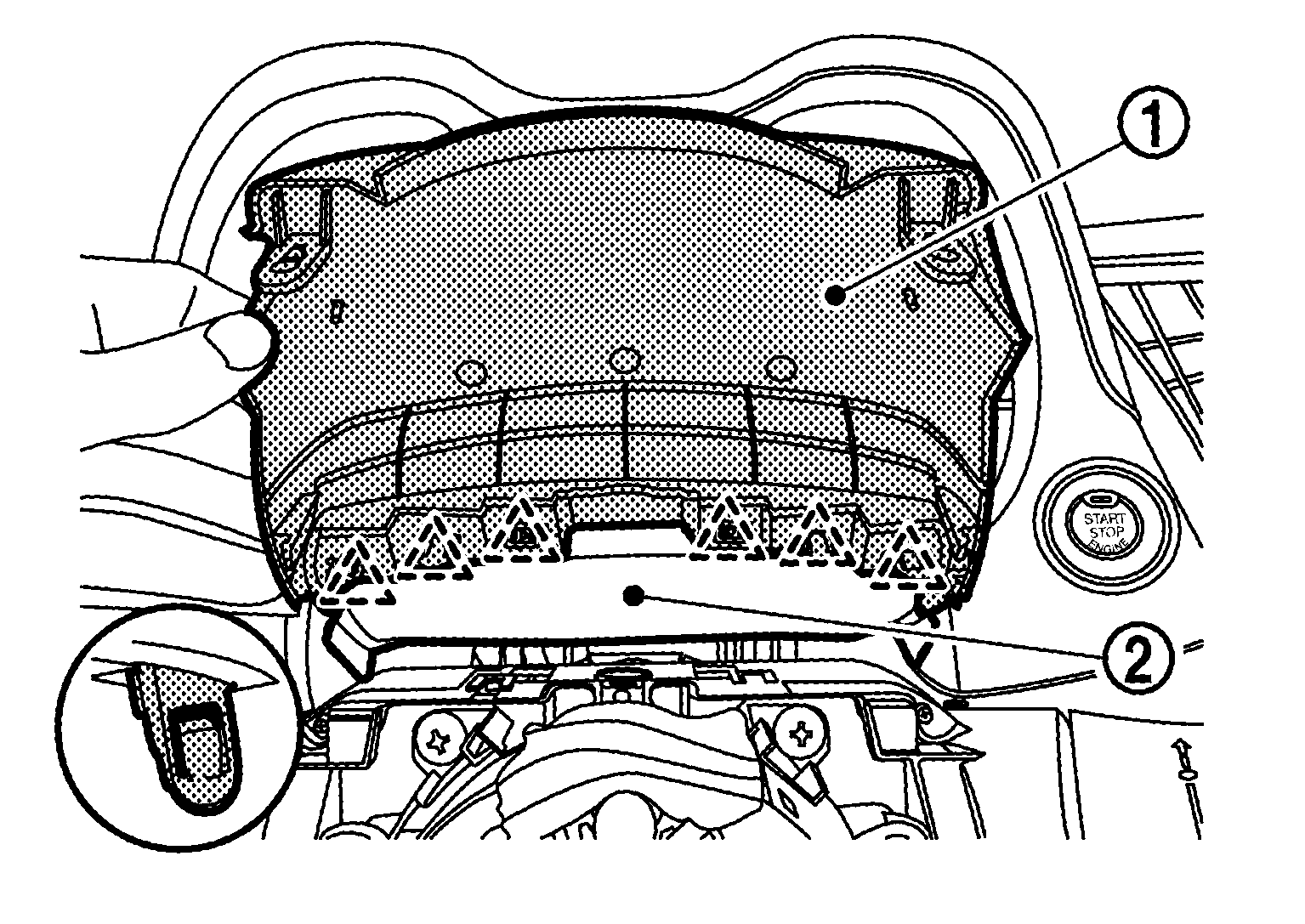

    3. Disengage fixing pawls of cluster lid A apron portion SYMBOL and remove steering column upper cover SYMBOL .
      GNSJMJIA8904Z-904Courtesy of NISSAN NORTH AMERICA, INC.
    4. Pull down steering column lower cover, remove harness connector and then remove steering column lower cover.
  10. Remove spiral cable. Refer to Removal and Installation .
  11. Remove combination switch. Refer to Removal and Installation .
  12. Remove cluster lid A.
    1. Cover steering shaft with a shop cloth to prevent damage.

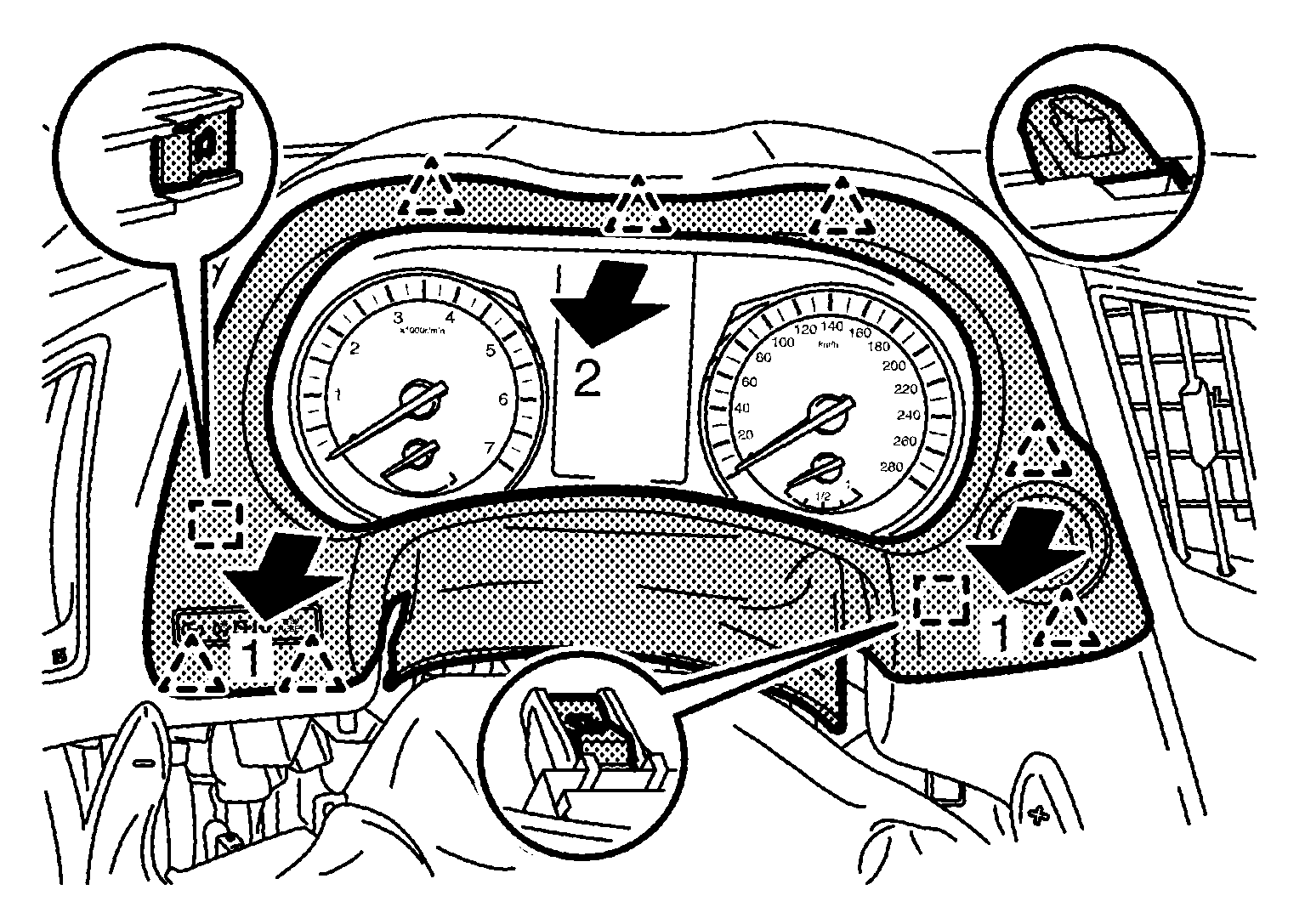

    2. Pull back cluster lid A, and then disengage pawls and metal clips according to the numerical order 1->2 as shown in the illustration.
      GNSJMJIA8907Z-907Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl

      SYMBOL

      : Metal clip
  13. Remove combination meter. Refer to Removal and Installation .
  14. Remove instrument finisher C and D.

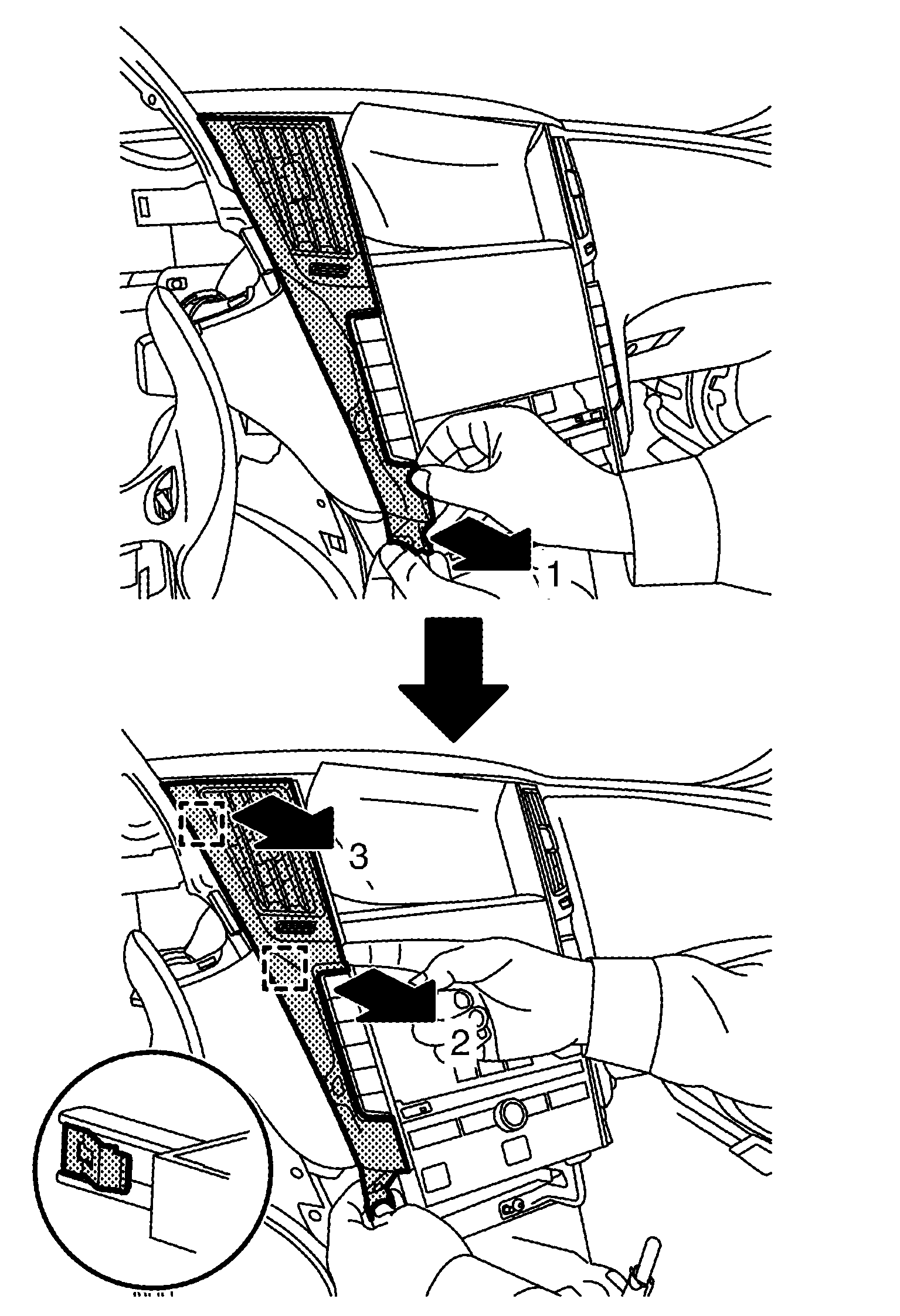

    1. Pull back instrument finisher, and then disengage the fixing metal clips according to the numerical order 1->3 as shown in the illustration.
      GNSJMJIA8908Z-908Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Metal clip

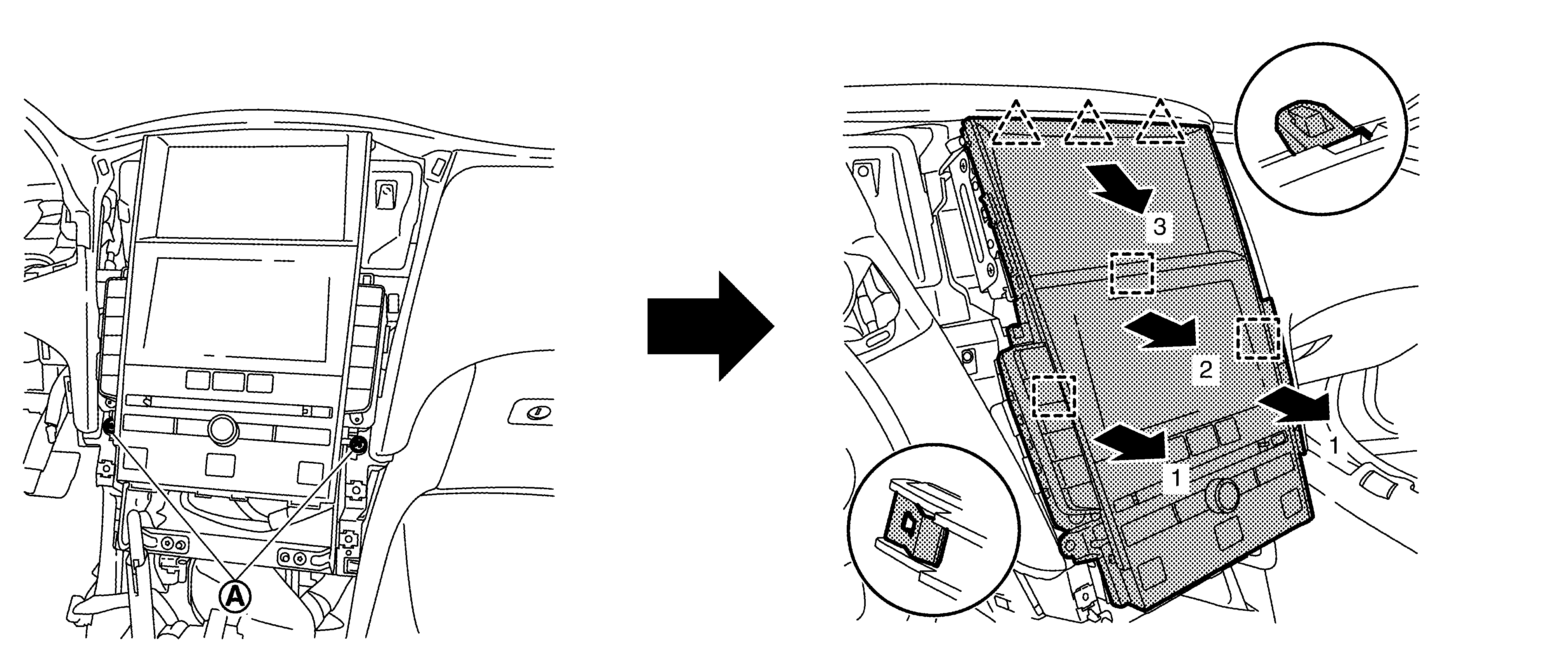

  15. Remove integral switch.
    GNSJMJIA8909Z-909Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Metal clip
    1. Remove fixing screw SYMBOL .
    2. Disengage integral switch pawls and metal clips according to the numerical order 1-> 3 as shown in the illustration above.
    3. Disconnect harness connectors and remove integral switch.
  16. Remove display control unit.

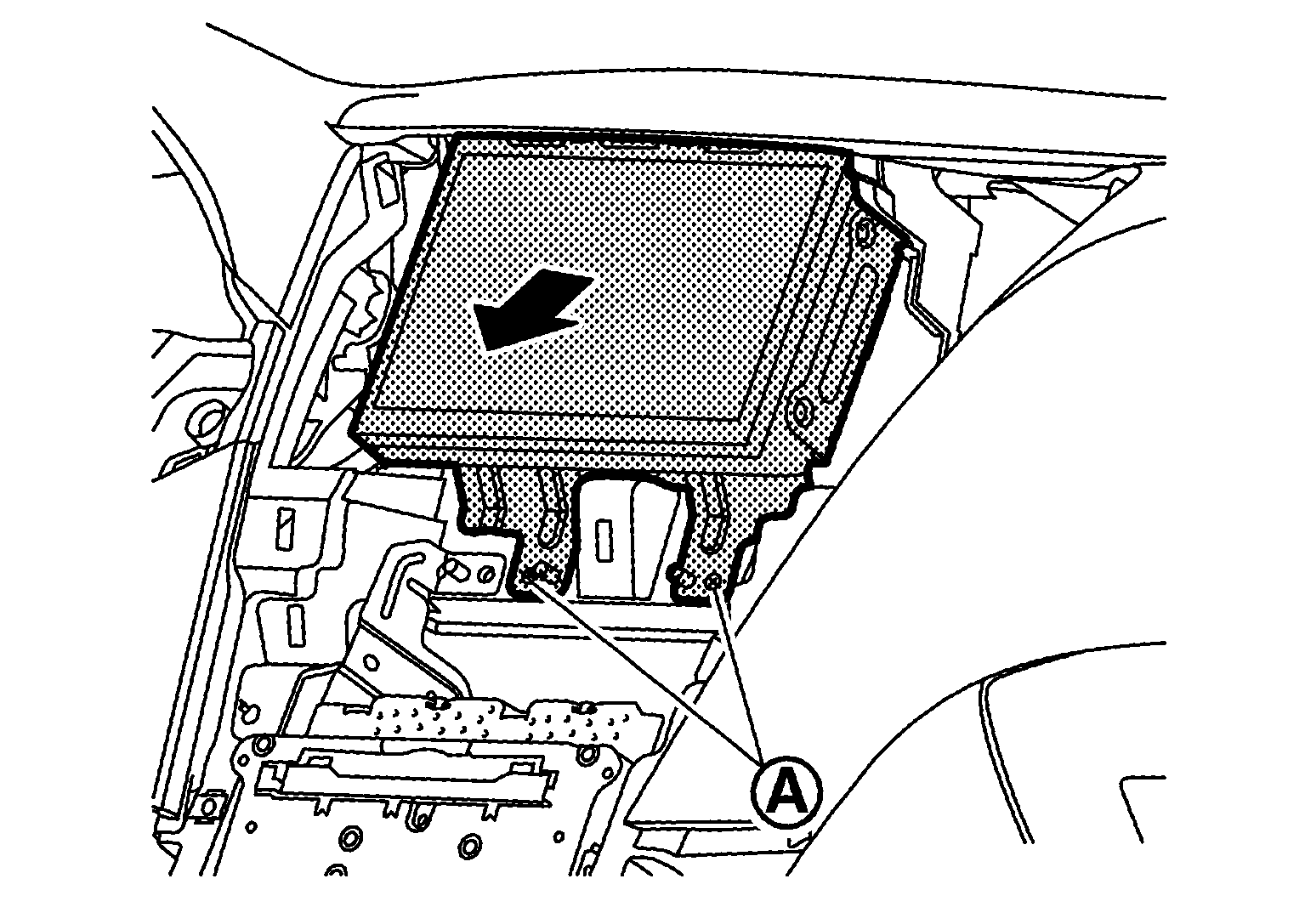

    1. Remove fixing screws SYMBOL .
      GNSJMJIA8910Z-910Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back display control unit to remove.
    3. Disconnect harness connectors and remove display control unit.

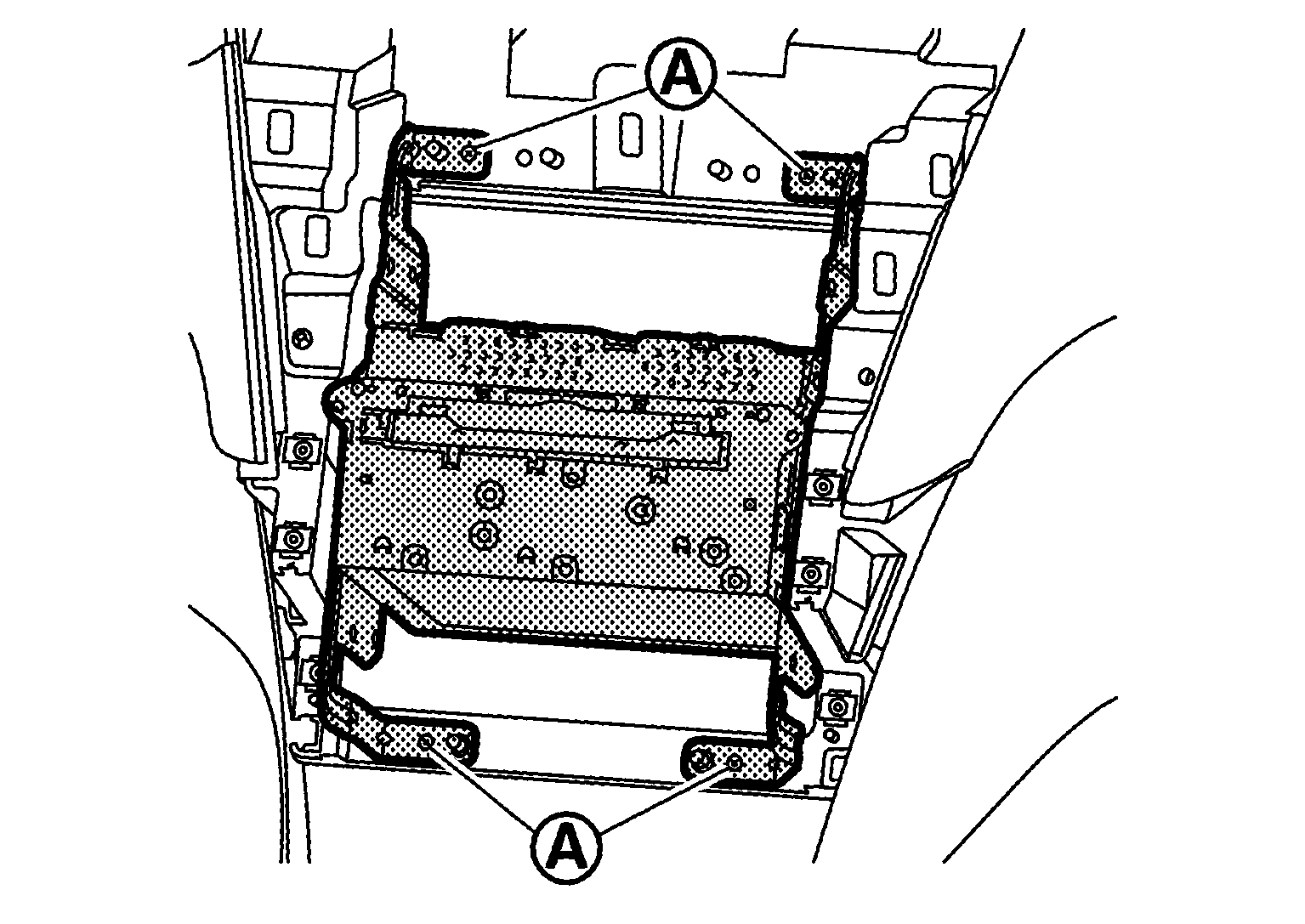

  17. Remove AV & NAVI control unit.
    GNSJMJIA8911Z-911Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove fixing screws SYMBOL .
    2. Pull back AV & NAVI control unit to remove.
    3. Disconnect harness connector.
  18. Release front pillar portion of front body side welt RH. Refer to Removal and Installation .
  19. Remove instrument side finisher RH.

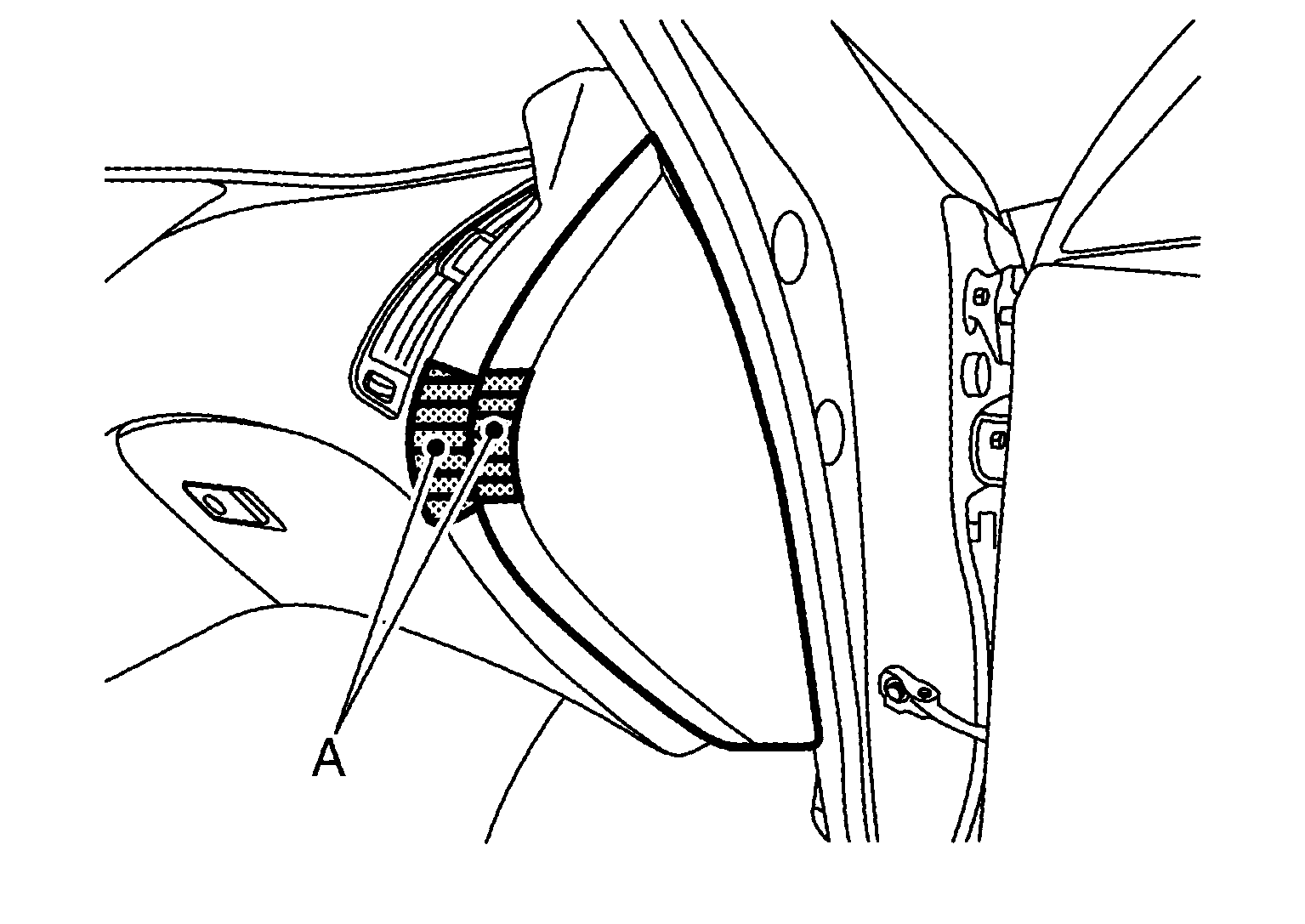

    1. Apply protective tape (A) on the part to protect it from damage.
      GNSJMJIA8984Z-984Courtesy of NISSAN NORTH AMERICA, INC.

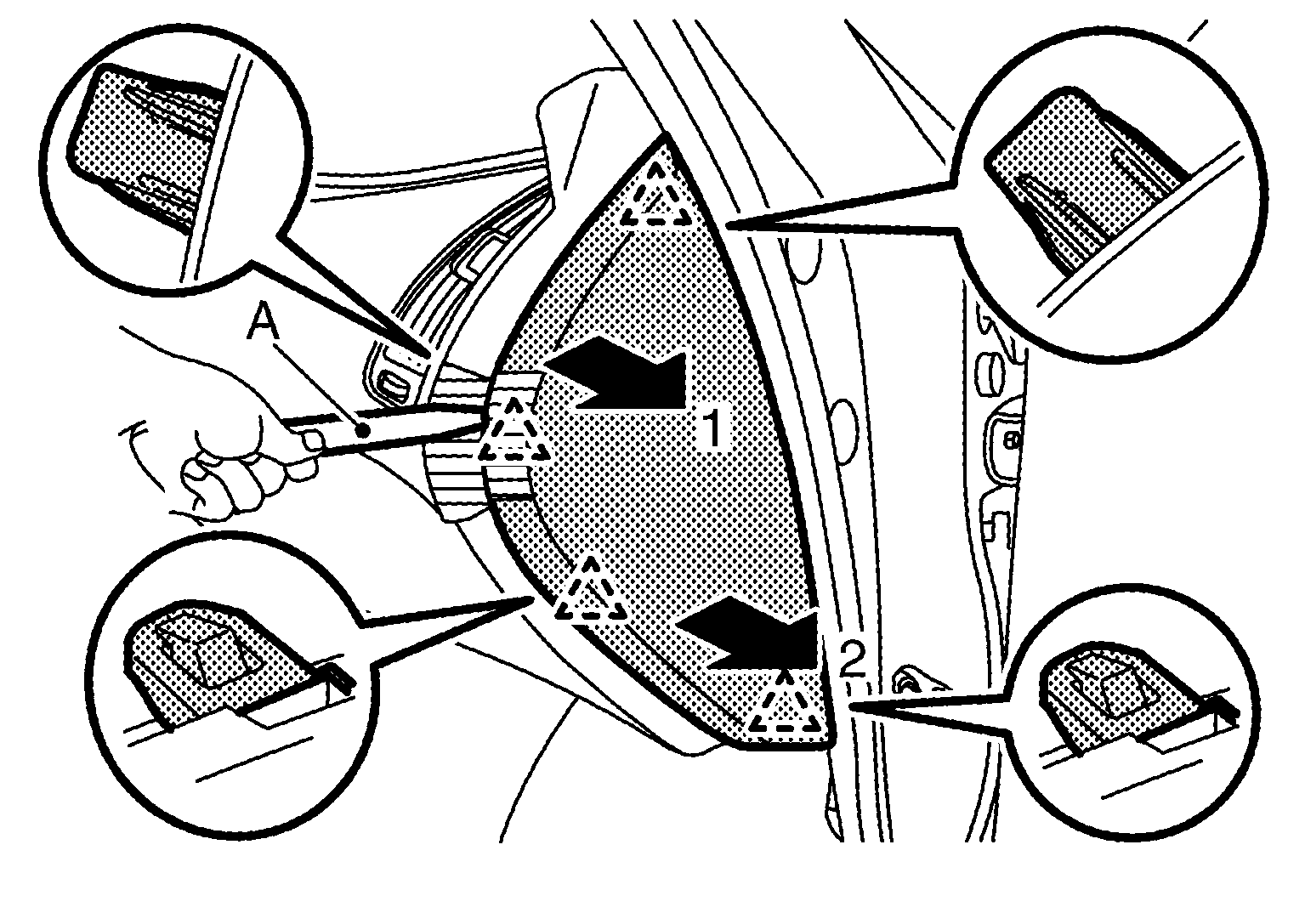

    2. Pull instrument side finisher RH, and then disengage pawls using a remover tool (A) according to the numerical order 1->2 as shown in the illustration.
      GNSJMJIA8985Z-985Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
  20. Remove front pillar garnish RH. Refer to Removal and Installation .
  21. Remove glove box assembly.
    1. Open glove box assembly approximately 50 mm.

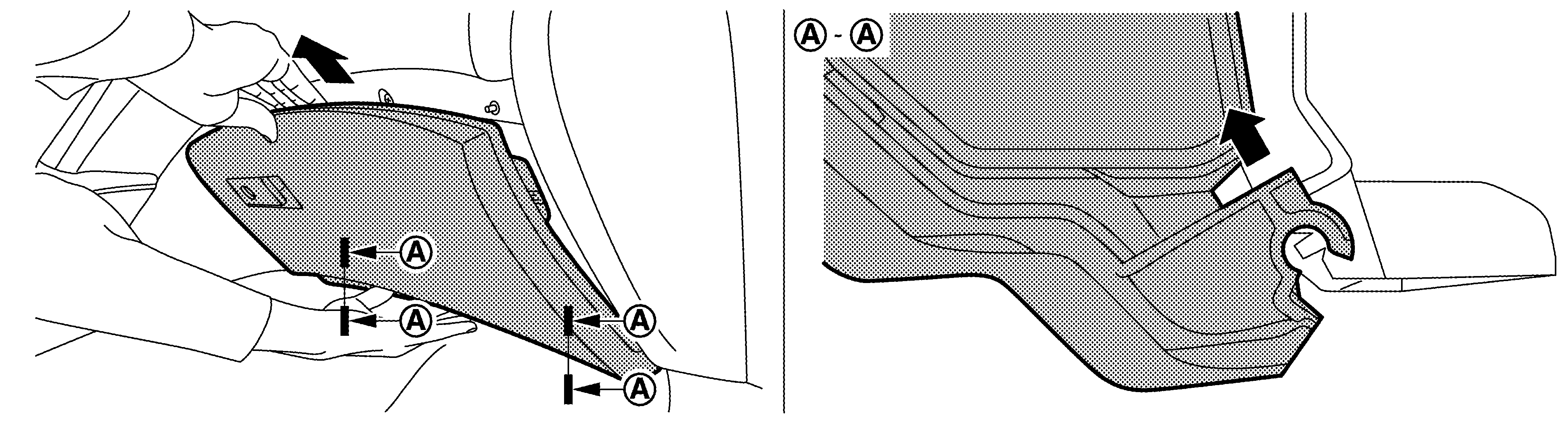

    2. Pull glove box assembly toward the direction of the arrow as shown in the illustration to disengage joint from instrument lower panel RH.
      GNSJMJIB0934Z-934Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: If working in a state that fully opened glove box assembly, parts may be damaged due mating strong. Pull glove box assembly diagonally upward in a state that opened it approximately 50 mm.

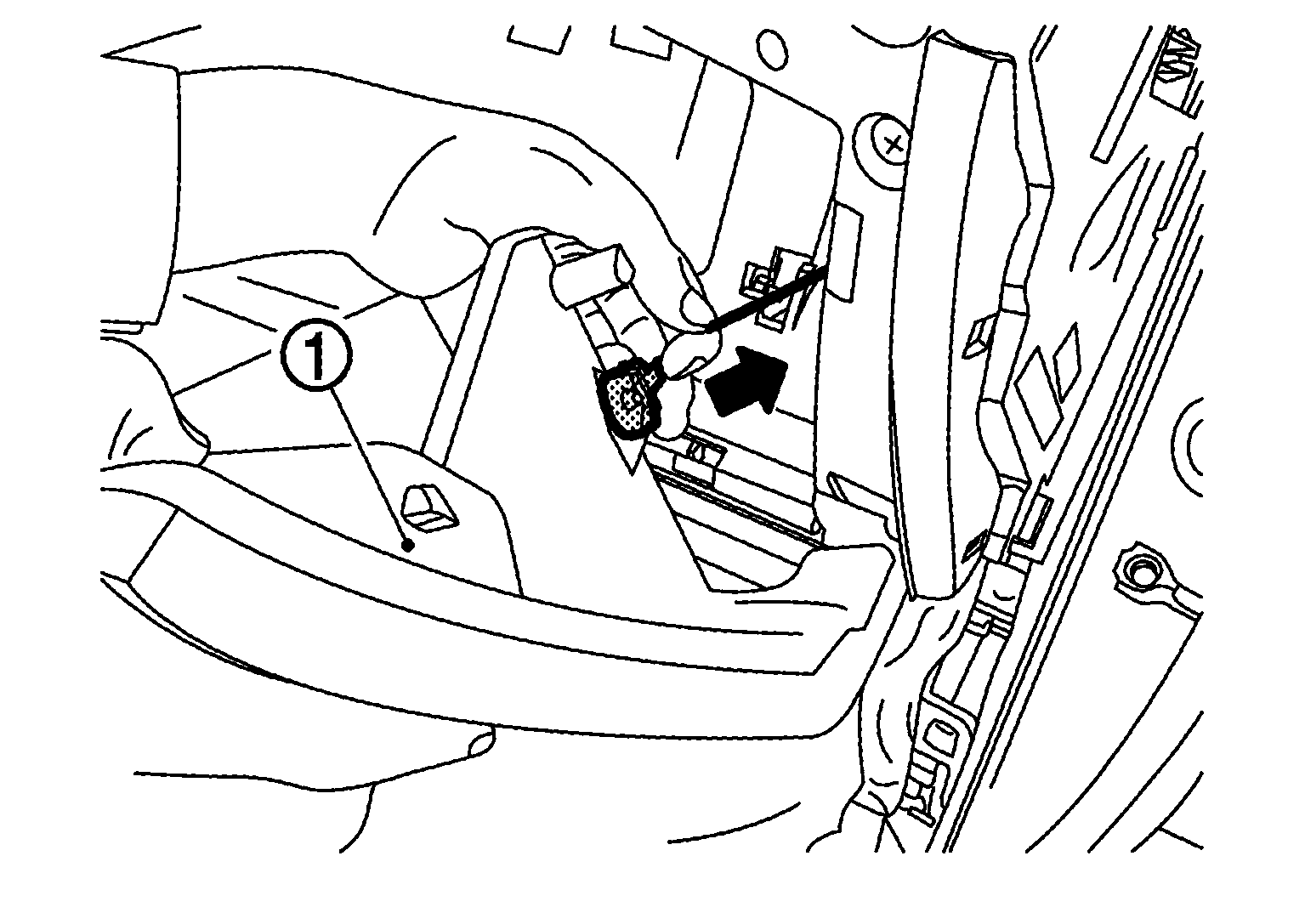

    3. Pull glove box assembly damper string and remove it from glove box assembly SYMBOL .
      GNSJMJIA8987Z-987Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Never excessively pull damper string.
  22. Remove instrument lower cover.

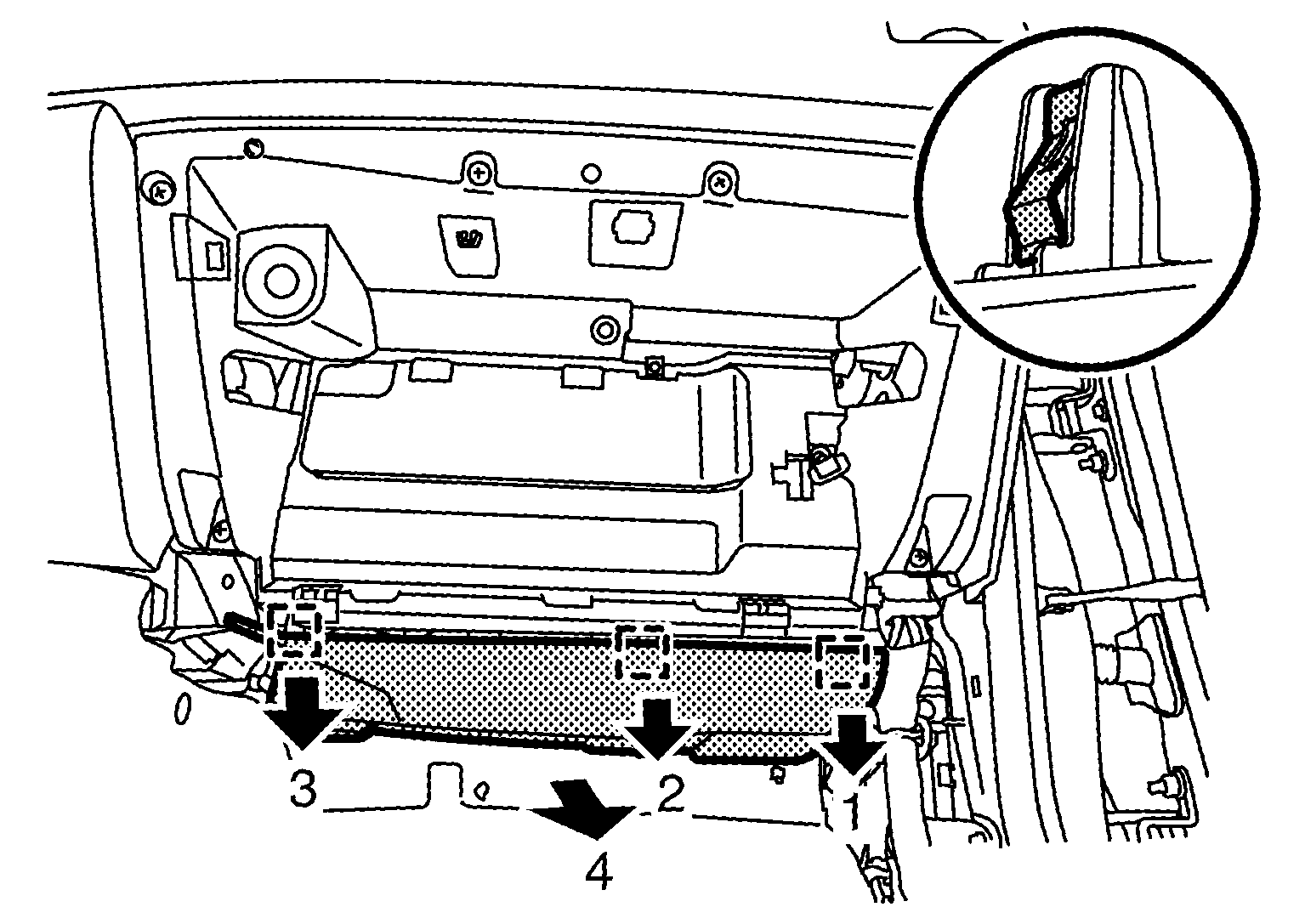

    1. Pull downward to disengage the fixing metals clips in the numerical order 1->4 as shown in the illustration.
      GNSJMJIA8988Z-988Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Metal clip
    2. Pull back instrument lower cover.
    3. Disconnect harness connectors.
  23. Remove instrument lower panel RH.

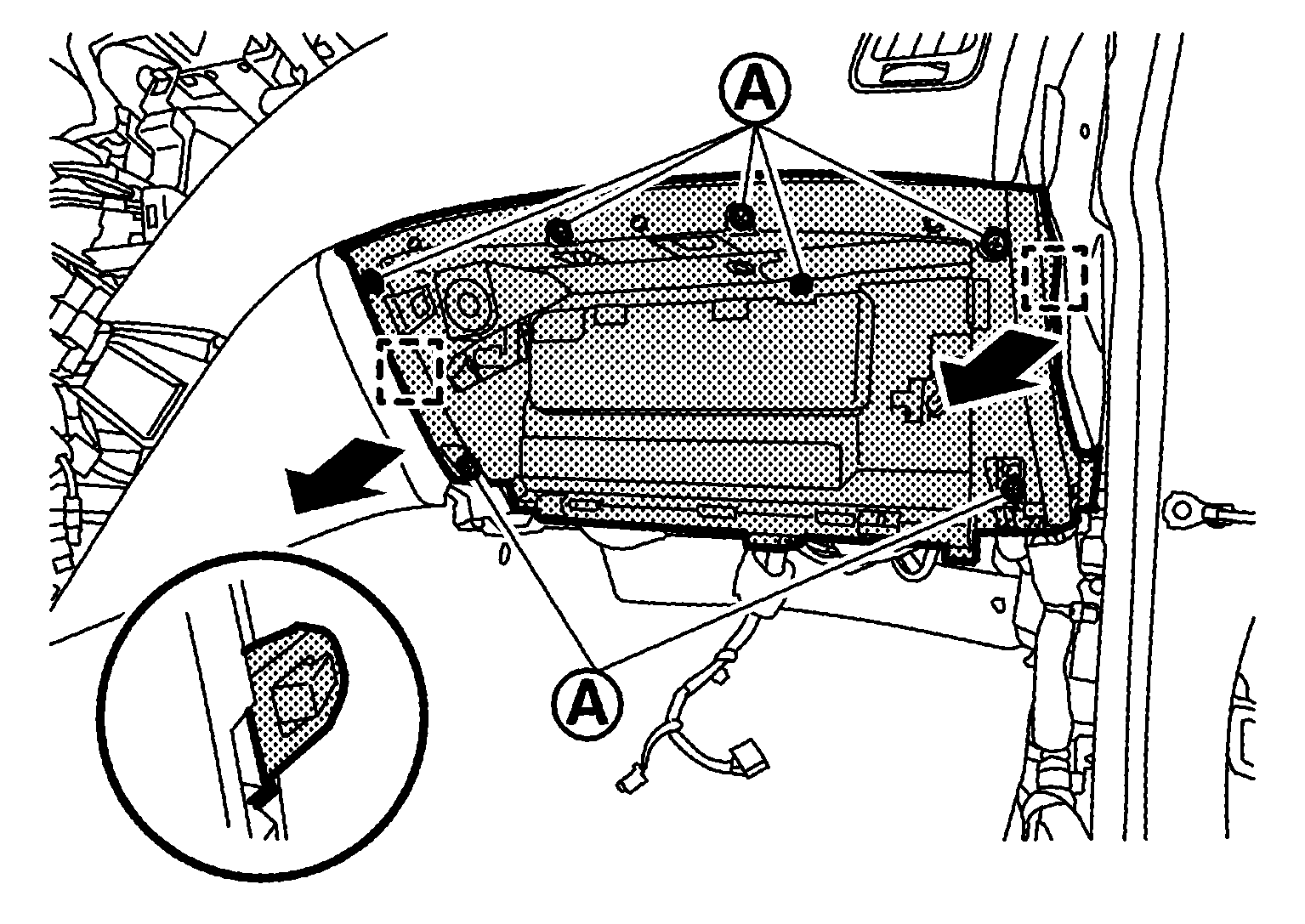

    1. Remove instrument lower panel RH fixing screws SYMBOL .
      GNSJMJIA8989Z-989Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back instrument lower panel RH, and then disengage the fixing metal clips.

      SYMBOL

      : Metal clip
    3. Disconnect harness connector.
  24. Remove instrument side panel RH

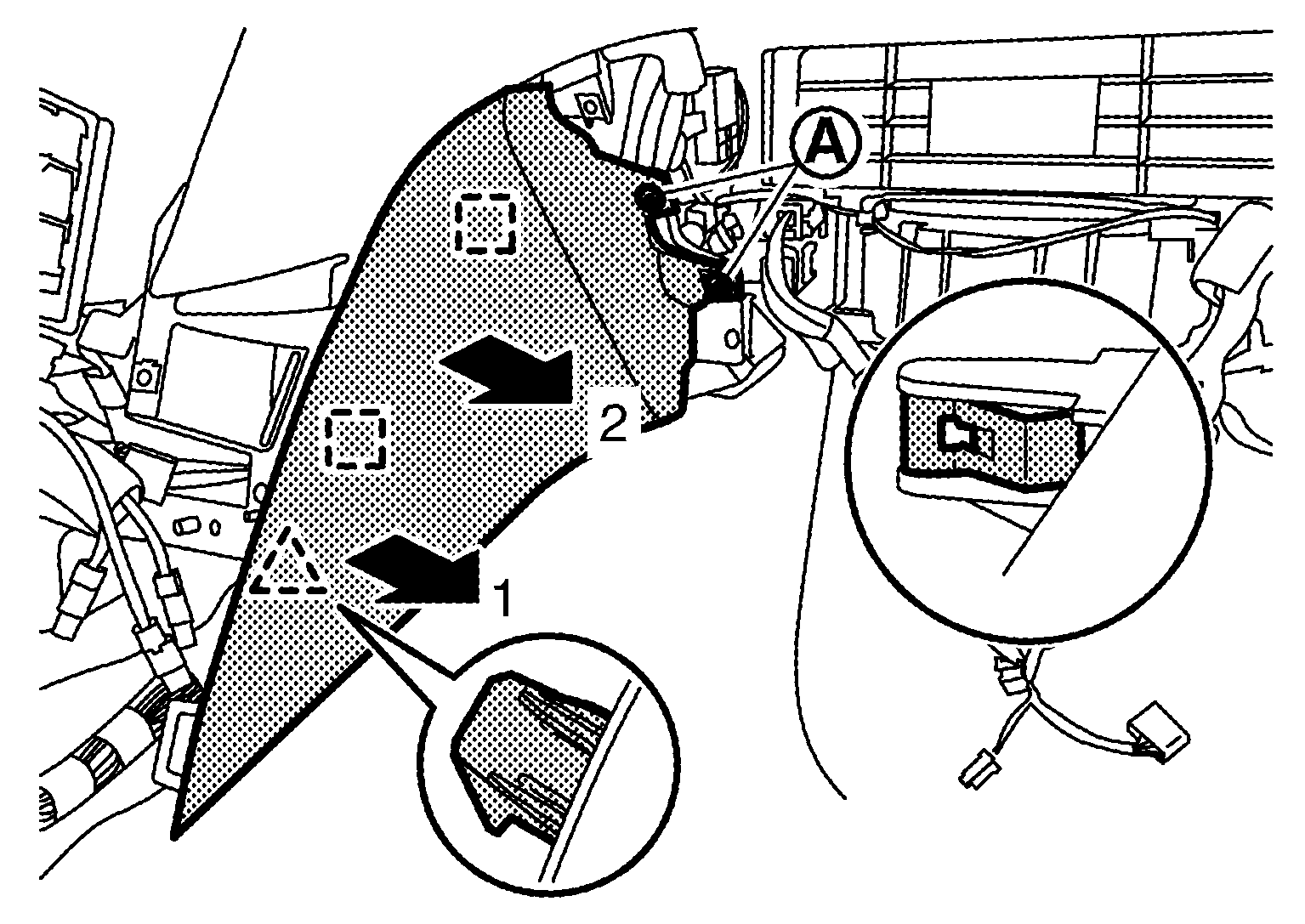

    1. Remove fixing screws SYMBOL .
      GNSJMJIA8990Z-990Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull instrument side panel RH, and then disengage pawls and metal clips according to the numerical order 1->2 as shown in the illustration.

      SYMBOL

      : Pawl

      SYMBOL

      : Metal clip
  25. Remove front speaker grille.

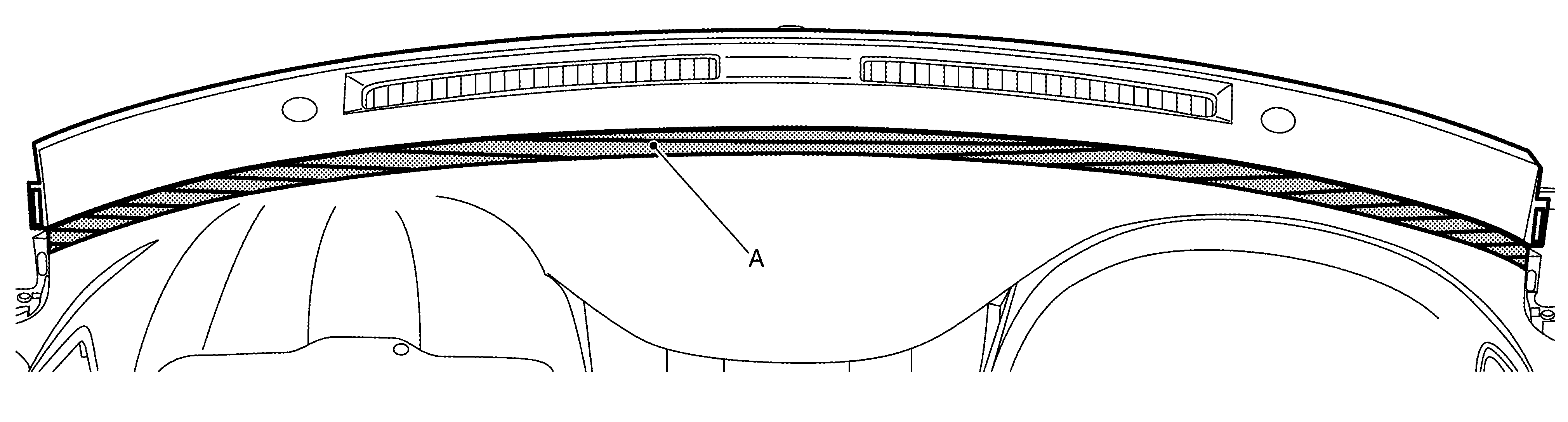

    1. Apply protective tape (A) on the part to protect it from damage.
      GNSJMJIA8992Z-992Courtesy of NISSAN NORTH AMERICA, INC.

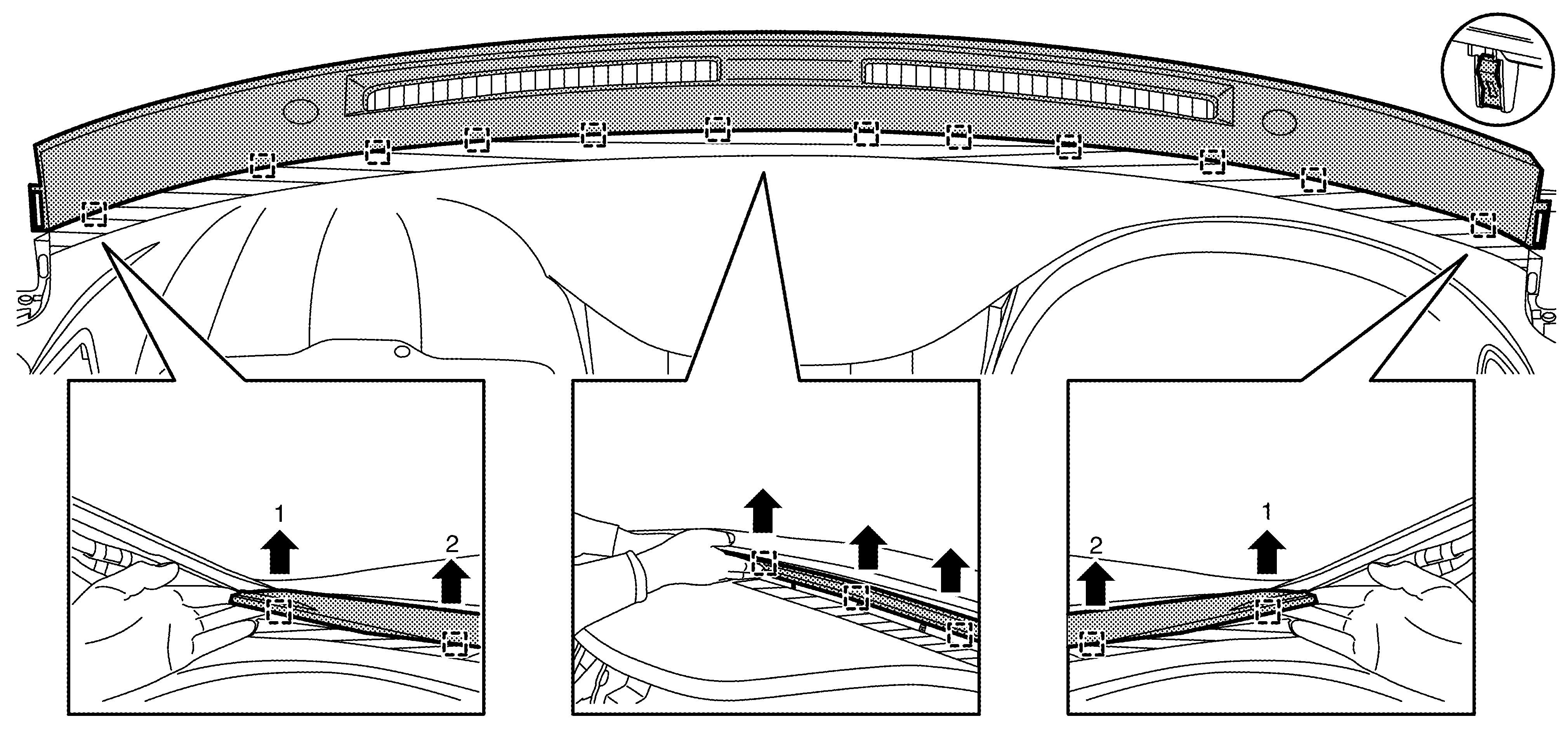

    2. Disengage front speaker grille fixing metal clips starting from both sides and work toward the center of the front speaker grille as 1->2 as shown in the illustration.
      GNSJMJIA8993Z-993Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Metal clip
    3. Disconnect optical sensor and sunload sensor harness connector.
  26. Remove front squawker LH. Refer to Removal and Installation .
  27. Remove center squawker. Refer to Removal and Installation .
  28. Remove front squawker RH. Refer to Removal and Installation .
  29. Disconnect passenger air bag module harness connector. Refer to Removal and Installation .
  30. Remove passenger air bag module mounting bolt.
  31. Remove instrument panel assembly.

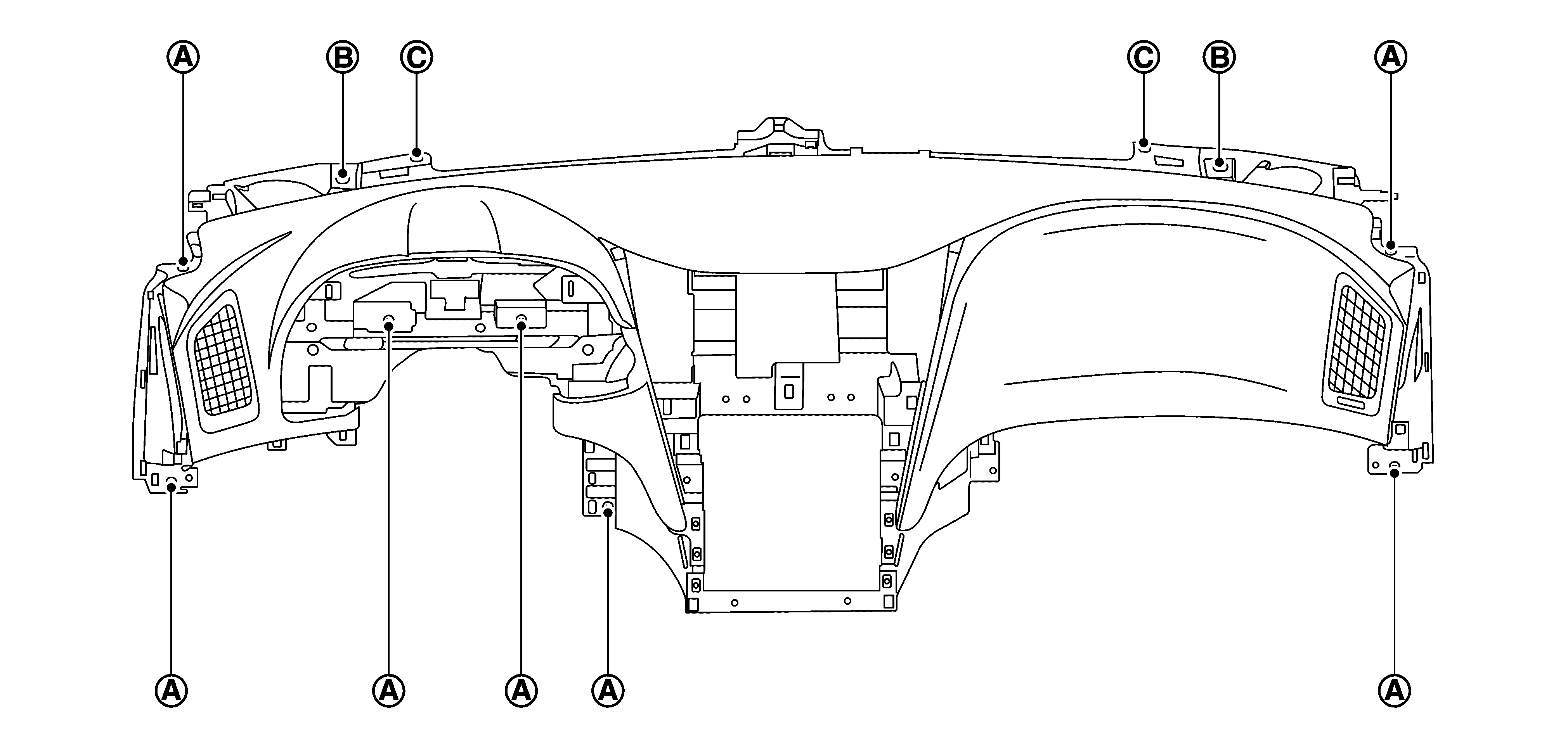

    1. Remove instrument panel assembly fixing screws SYMBOL , mounting bolt SYMBOL and clip SYMBOL .
      GNSJMJIA8991Z-991Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disengage harness of front pillar LH and RH portions from instrument panel assembly.
    3. Remove harness fixing clips and disengage harness from instrument panel assembly.
    4. Remove instrument panel assembly from passenger door opening portion.
      CAUTION:
      • Cover shift selector upper surface with a shop cloth to prevent it from being damaged.
      • When removing instrument panel assembly, 2 workers are required to prevent it from dropping.
  32. Remove the following parts after removing instrument panel assembly.
