Removal and Installation: Removal

1. Put selector lever in "N" position.
2. Remove selector lever knob. Refer to Removal and Installation .
3. Remove center console side finisher (LH and RH).
   1. Put front seat assembly (LH and RH) to rearmost position.

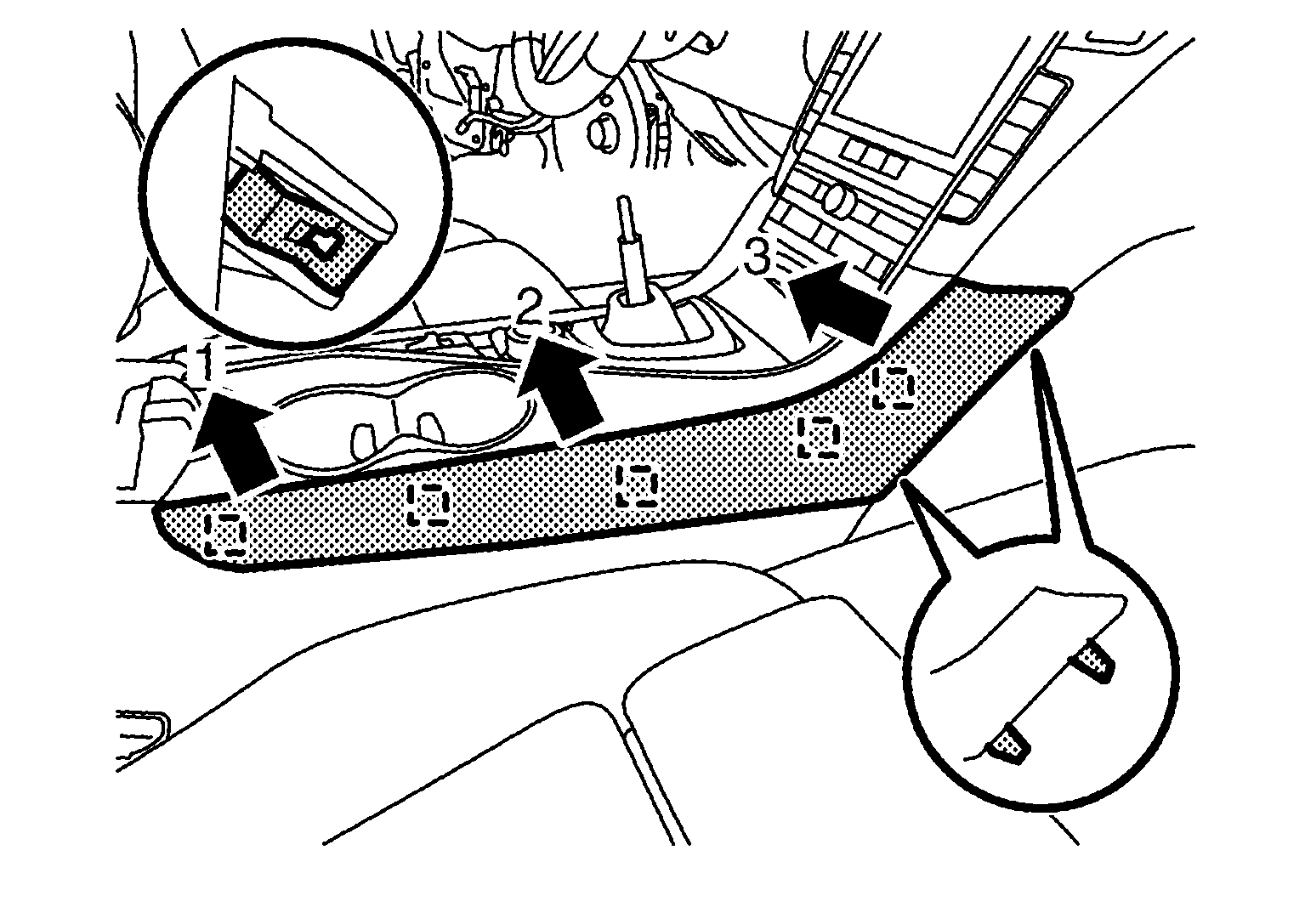

   2. Pull instrument center console side finisher and then disengage metal clips according to the numerical order 1->3 as shown in the illustration.

      Courtesy of NISSAN NORTH AMERICA, INC.

      : Metal clip

4. Remove console upper finisher

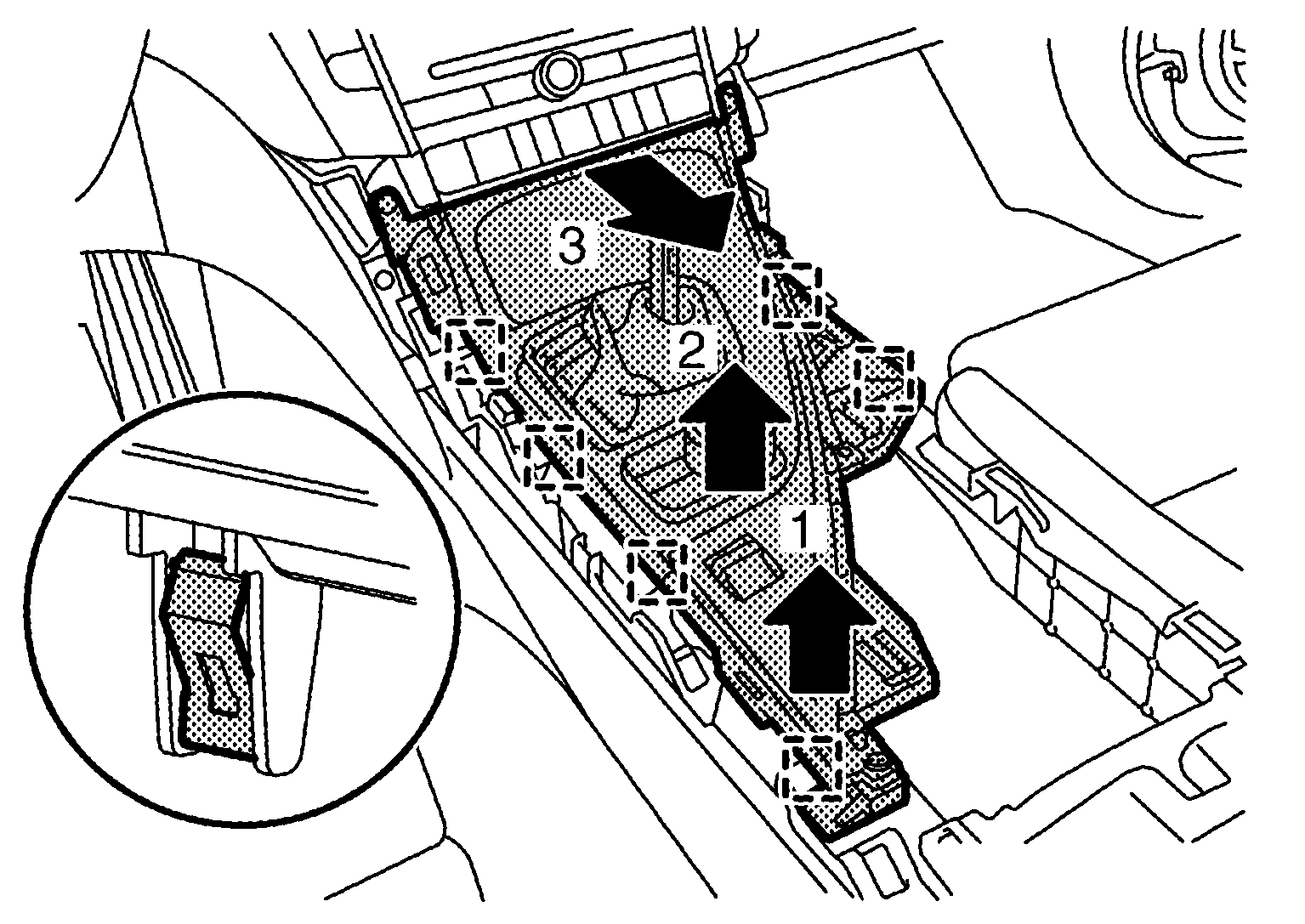

   1. Pull up console upper finisher, and then disengage the fixing metal clips according to the numerical order 1-> 2 as shown in the illustration.

      Courtesy of NISSAN NORTH AMERICA, INC.

   2. Pull out the front part of console upper finisher to remove the guide as shown by the arrow 3 and remove console upper finisher.

Remove console finisher assembly.

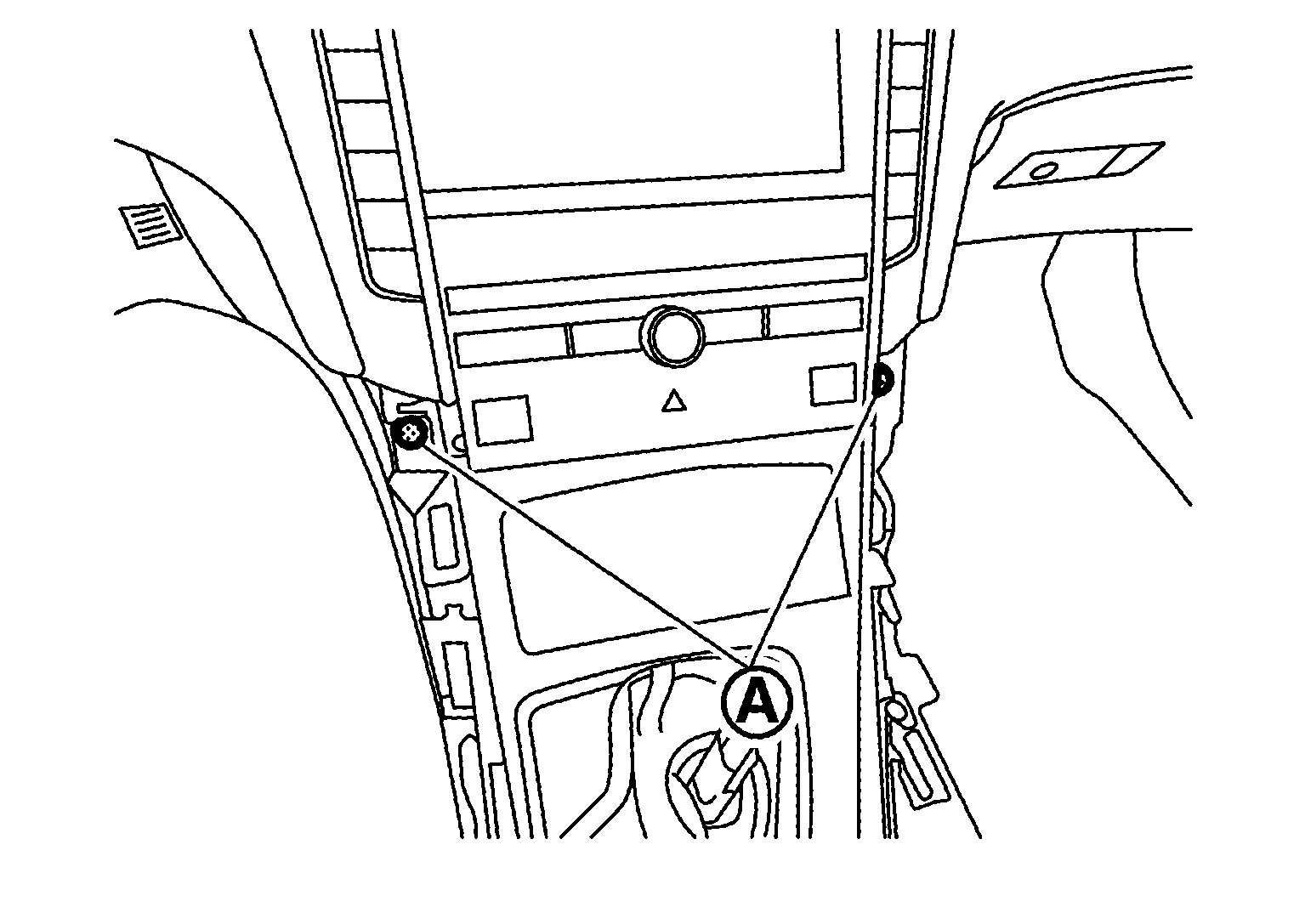

1. Remove console finisher assembly fixing screws .

   Courtesy of NISSAN NORTH AMERICA, INC.

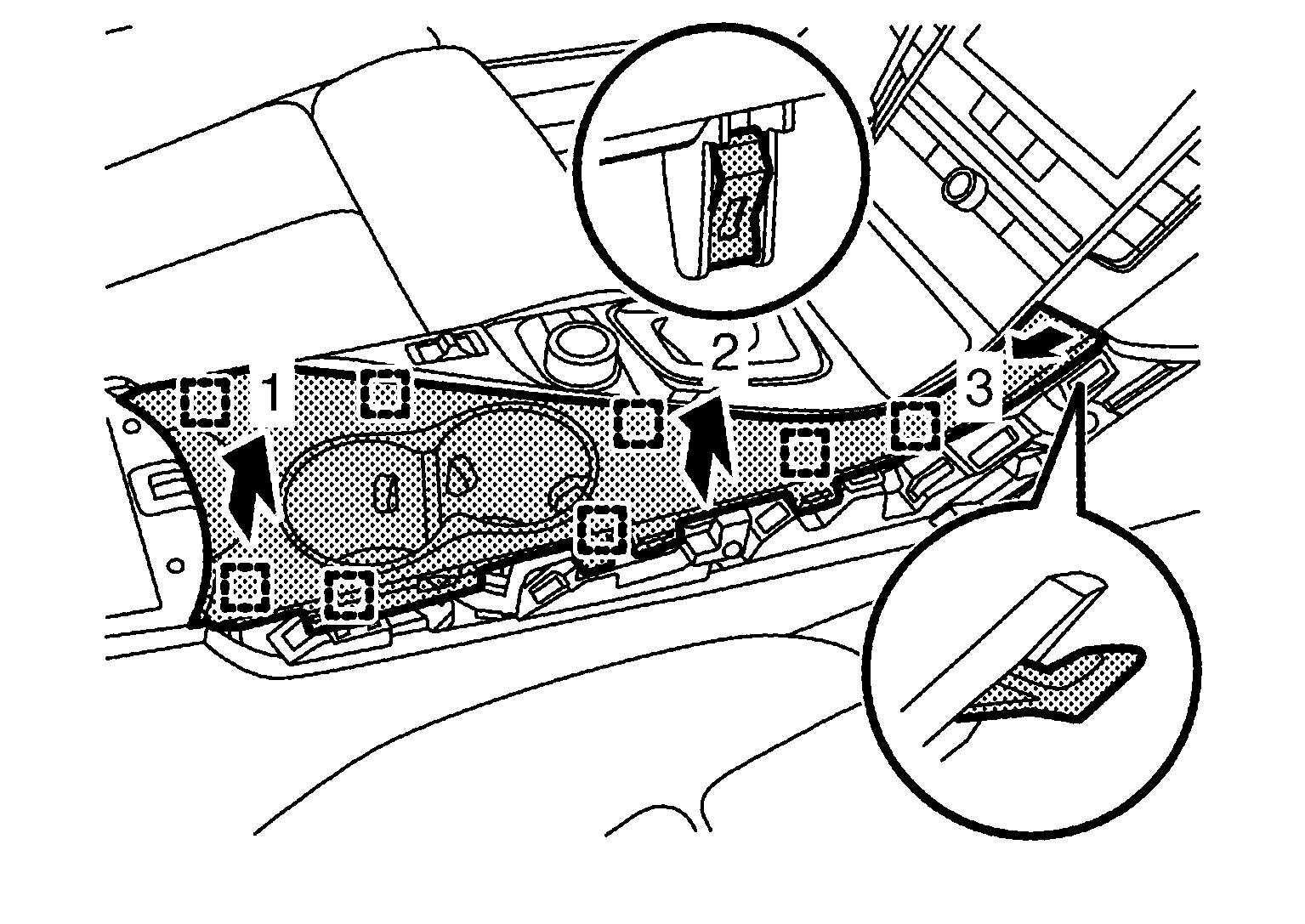

2. Pull up console finisher assembly, and then disengage metal clips according to the numerical order 1->3 as shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Metal clip

3. Disconnect all the harness connectors and remove console finisher assembly.

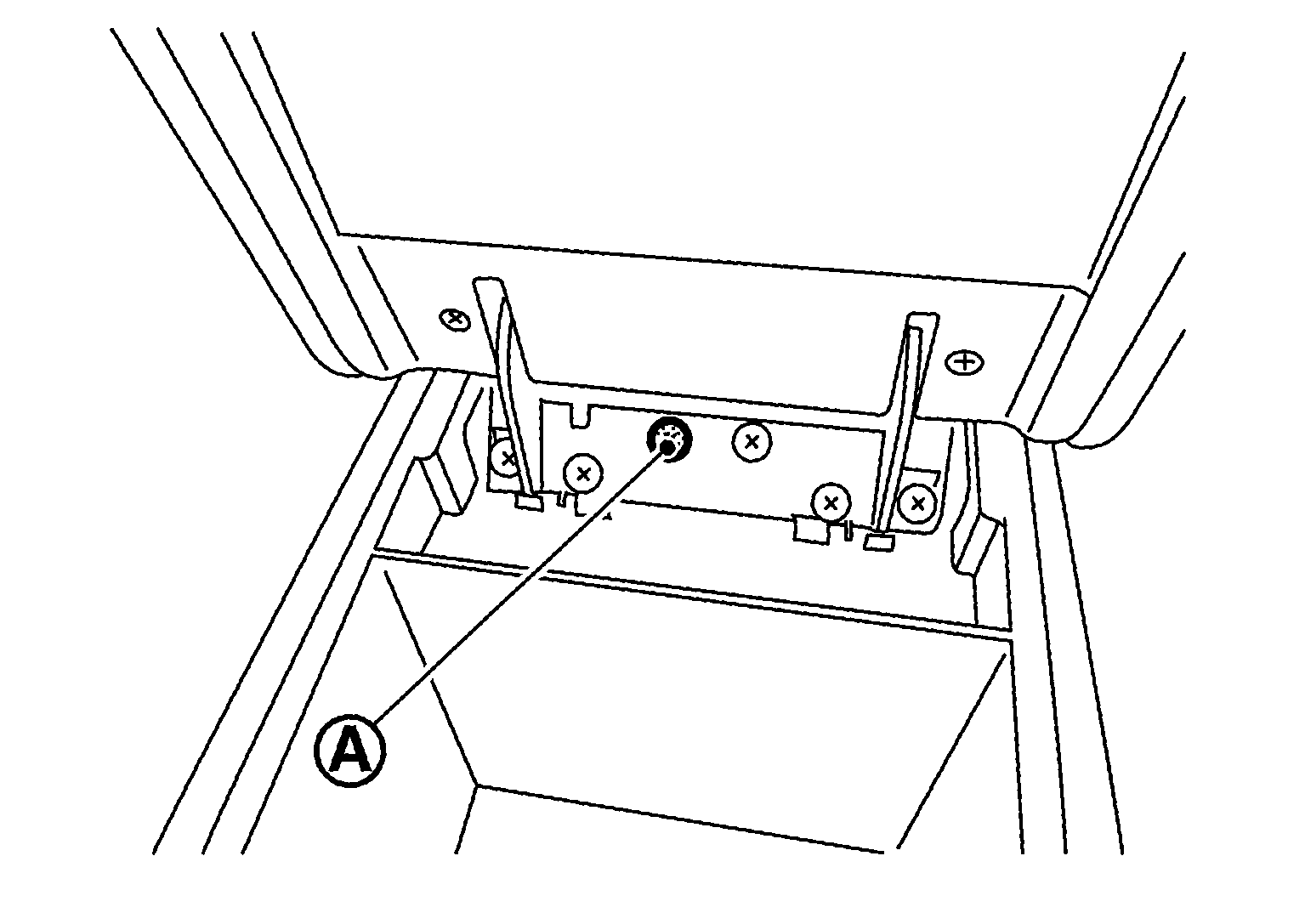

Remove console mask.

1. Open the console lid.

   Courtesy of NISSAN NORTH AMERICA, INC.

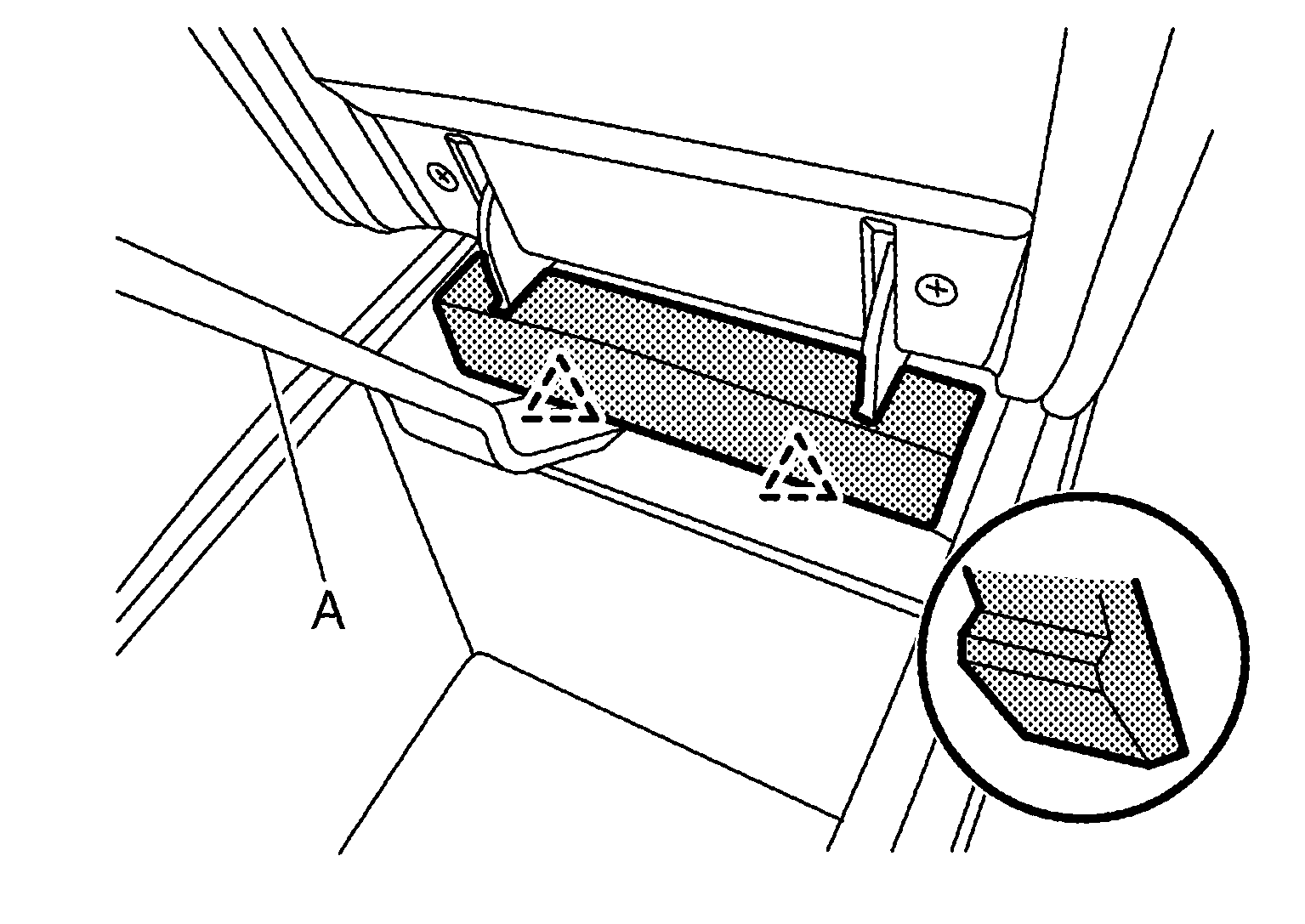

2. Disengage console mask fixing pawl with a remover tool (A).

   : Pawl

Remove console rear finisher assembly.

1. Remove console rear finisher assembly fixing screw .

   Courtesy of NISSAN NORTH AMERICA, INC.

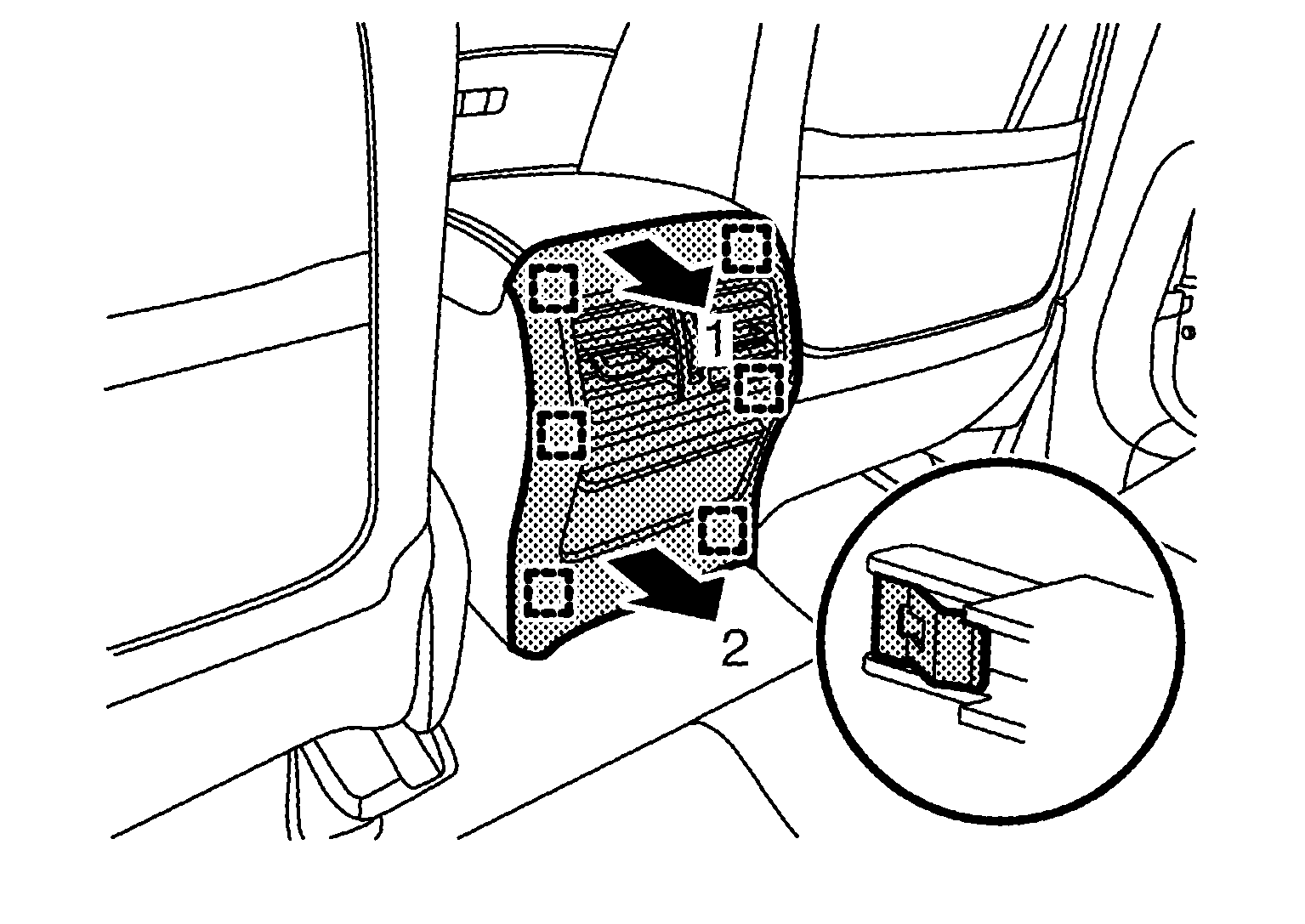

2. Pull back console rear finisher assembly, and then disengage metal clips according to the numerical order 1->2 as shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Metal clip

• Remove rear floor duct 3 . Refer to Removal and Installation .

  Courtesy of NISSAN NORTH AMERICA, INC.

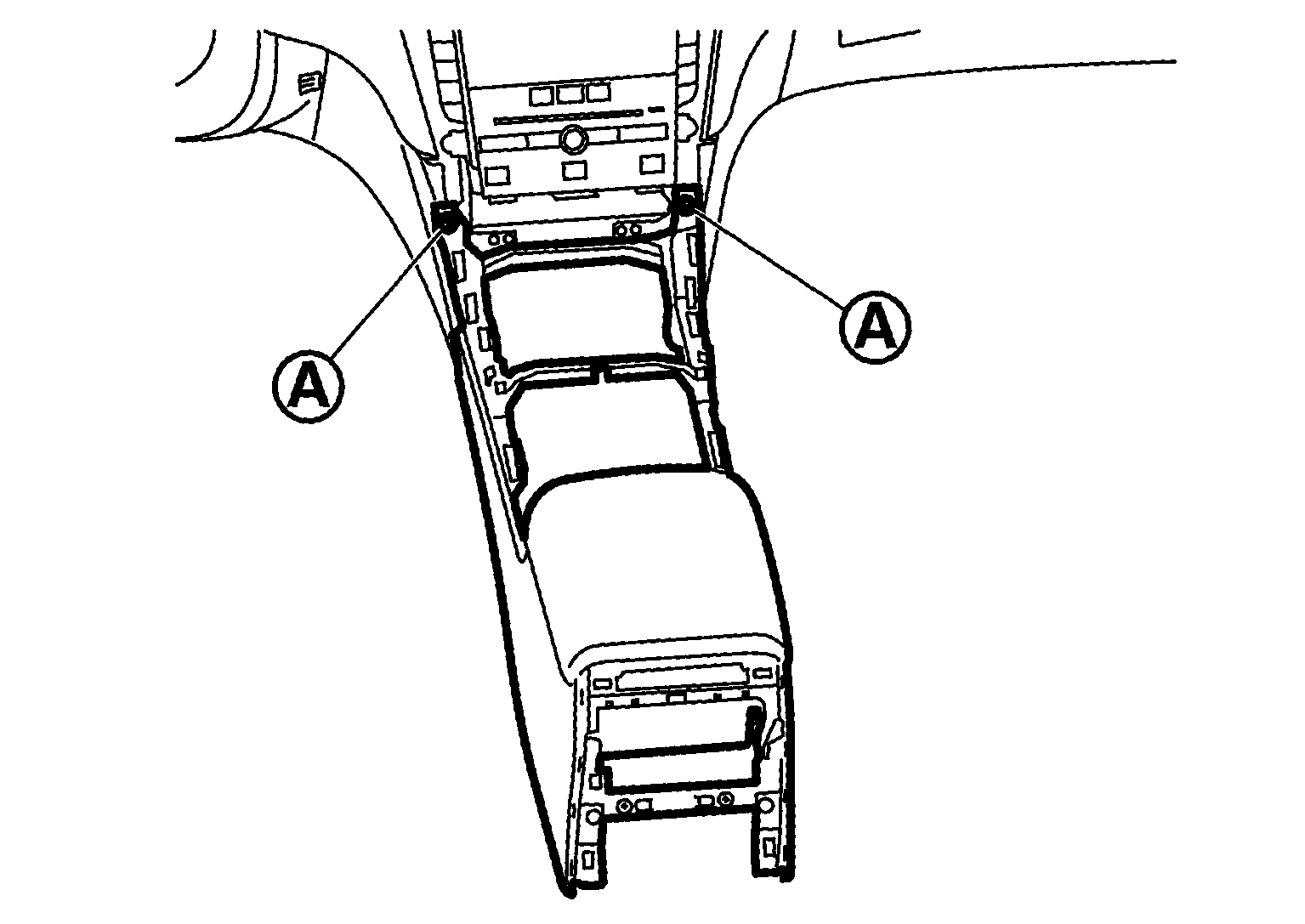

• Remove center console assembly fixing screws .
• Remove center console assembly.

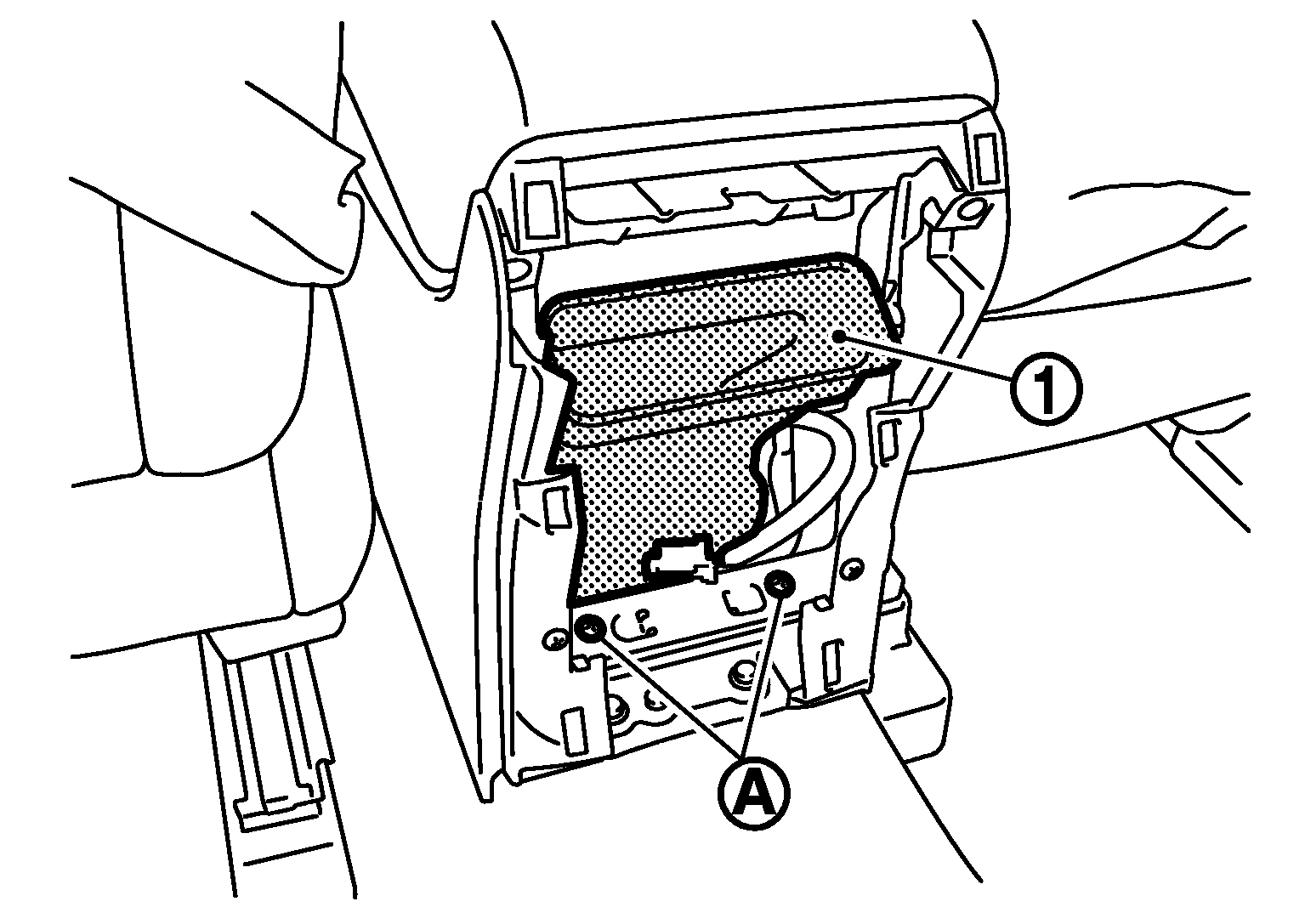

  1. Remove center console assembly fixing screws .

     Courtesy of NISSAN NORTH AMERICA, INC.

  2. Lift up center console assembly back side.
  3. Disconnect harness connector.
• Remove the following part after removing center console assembly.

  Rear ventilator grille. Refer to Removal and Installation .
