Disassembly and Assembly of Center Console Assembly

CAUTION: When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY

  1. Remove console lid fixing screws SYMBOL .

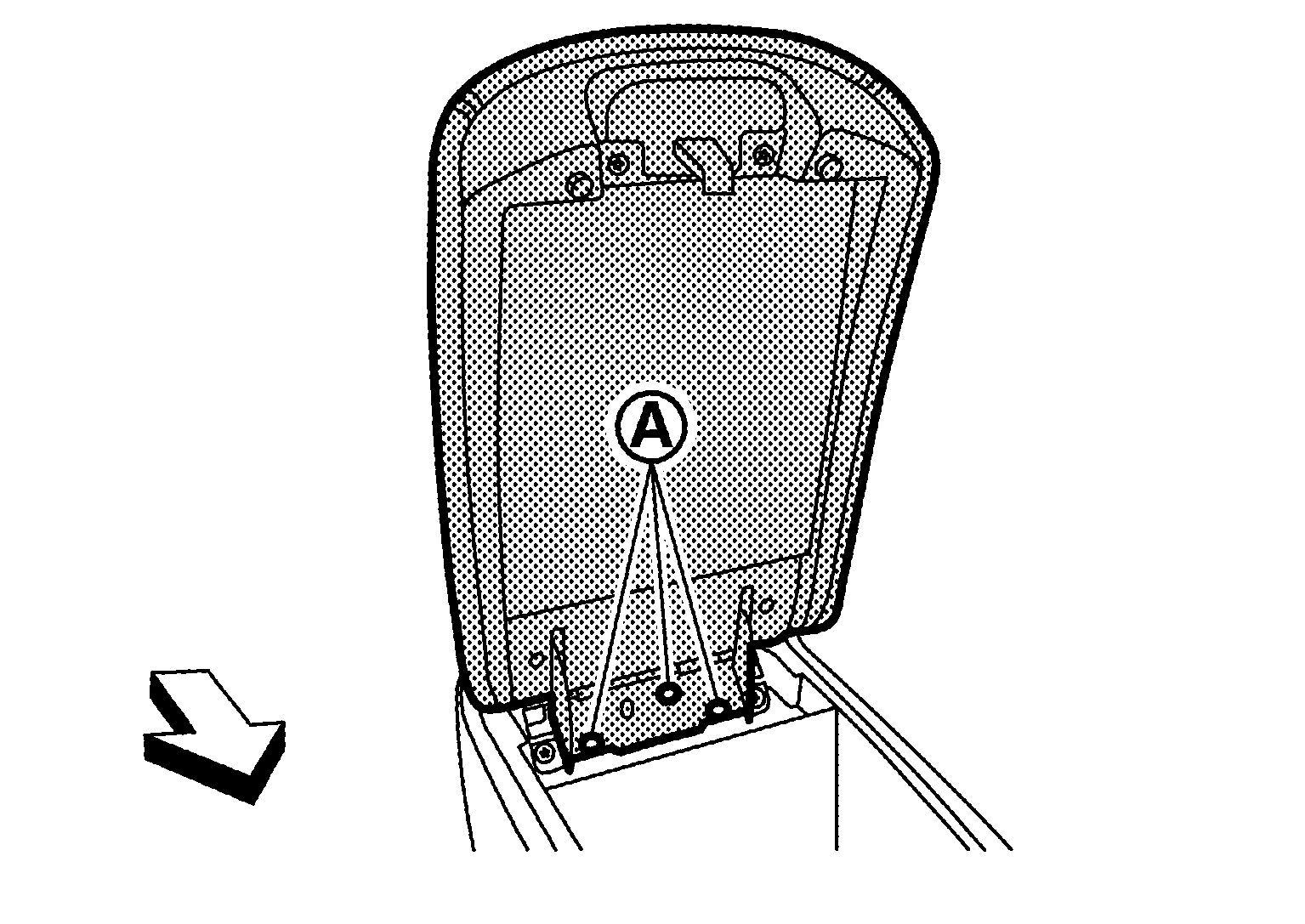

    GNSJMJIA8761Z-761Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front
  2. Remove console reinforcement SYMBOL fixing screws SYMBOL .

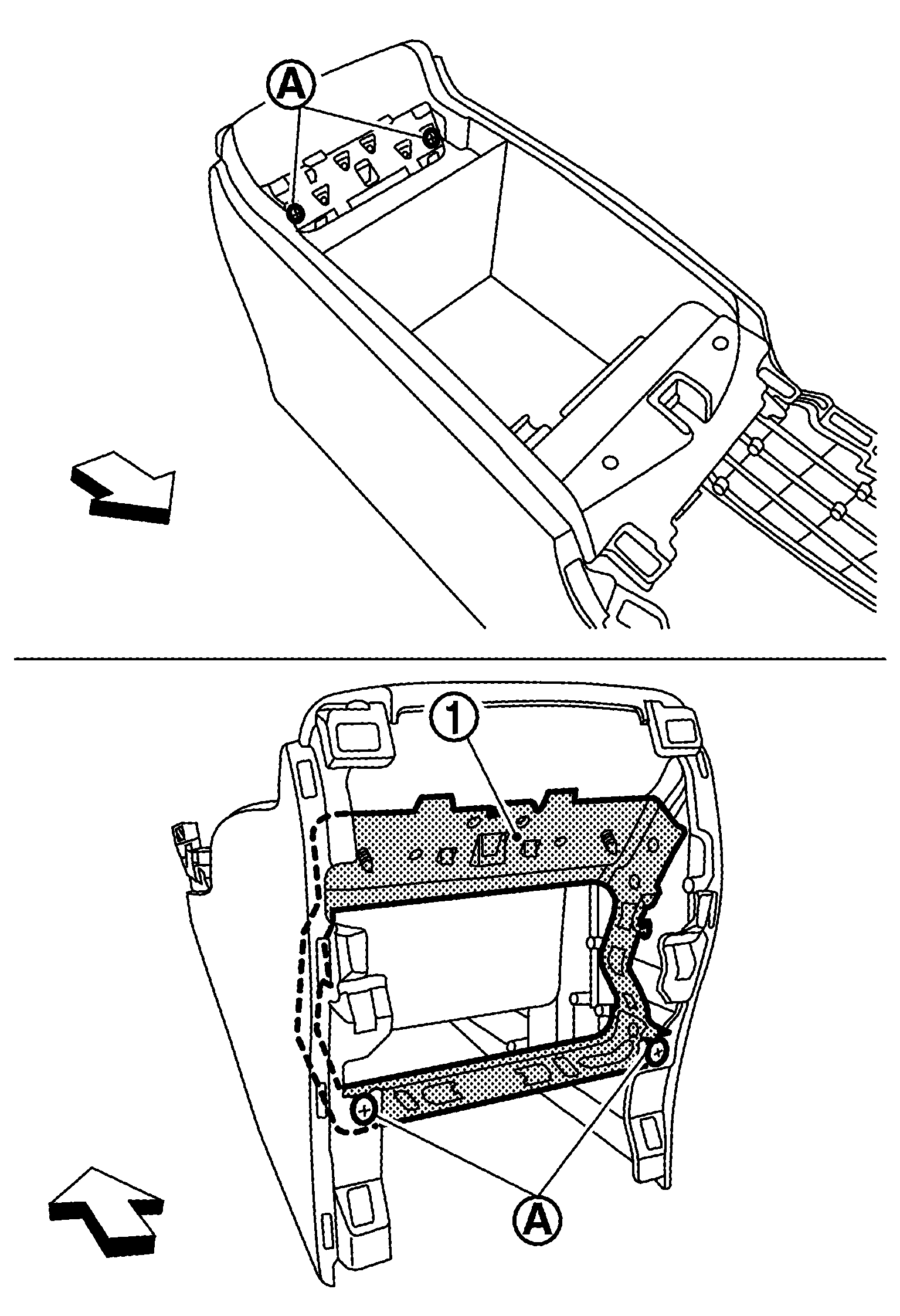

    GNSJMJIA8762Z-762Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front
  3. Disconnect harness connector fixing clip and remove console bracket fixing screws, and then remove console bracket from console box assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.
