REAR LOWER LINK AND COIL SPRING : Exploded View

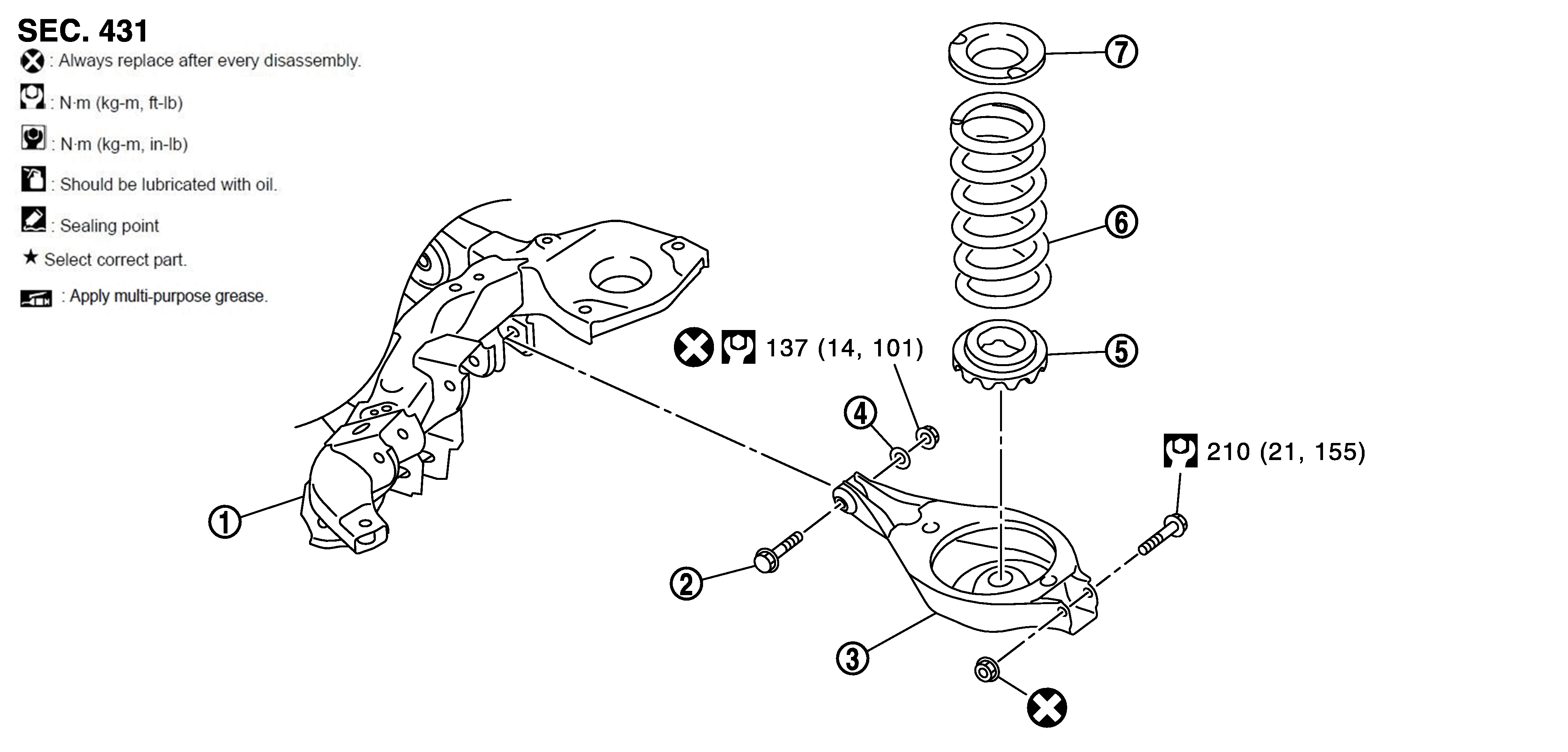

Fig 1: Rear Lower Link And Coil Spring With Torque Specifications
GNSJPEIB0212GB-212Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear suspension member

2.

Adjusting bolt

3.

Rear lower link

4.

Eccentric disc

5.

Rubber seat

6.

Coil spring

7.

Upper seat

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, ft-lb)
