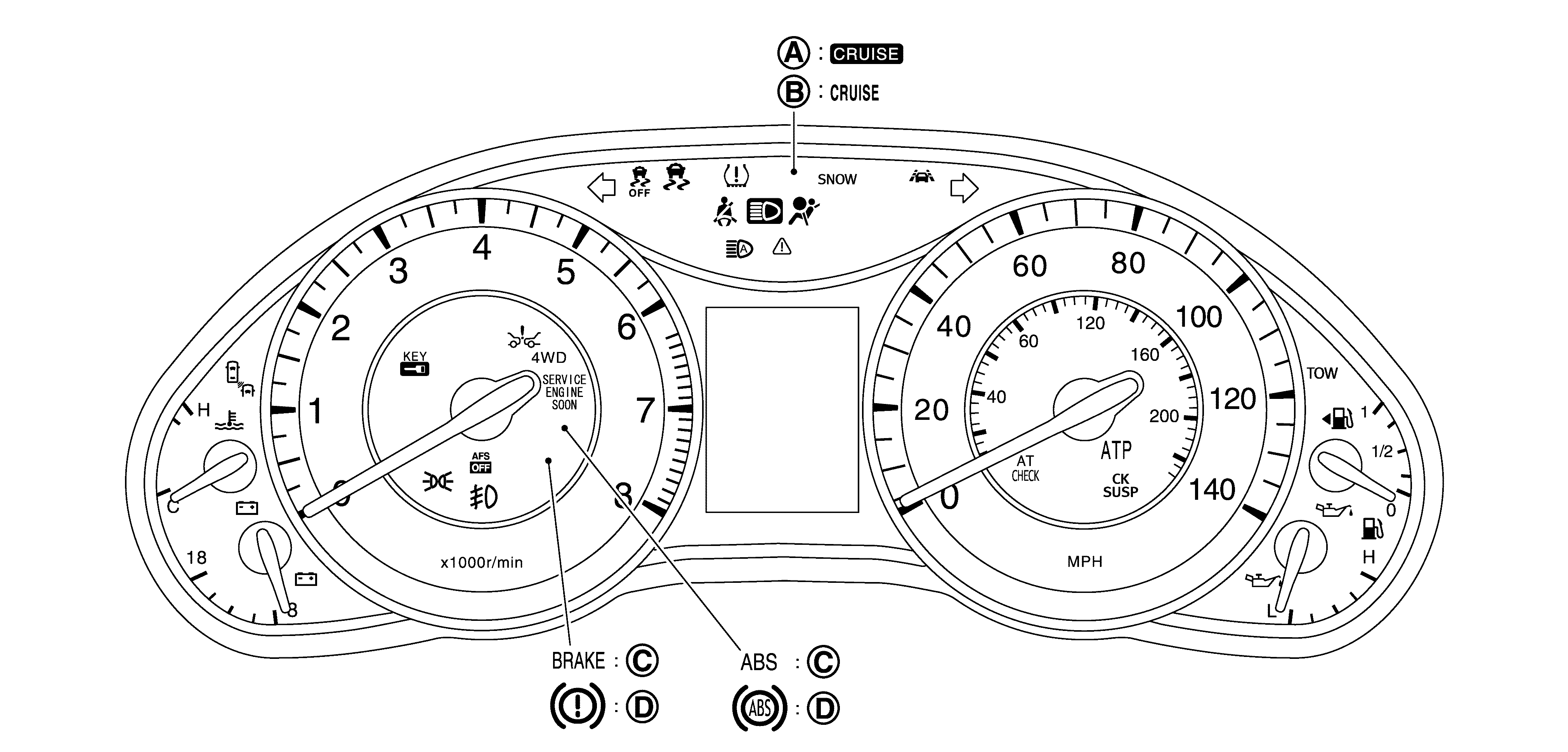

Arrangement Of Combination Meter

GNSILL0164651-651Courtesy of NISSAN NORTH AMERICA, INC.

A.

With ASCD models

B.

With ICC models

C.

For U.S.A.

D.

Except for U.S.A.
