Meter System: Operation

Switch name

Operation

Description

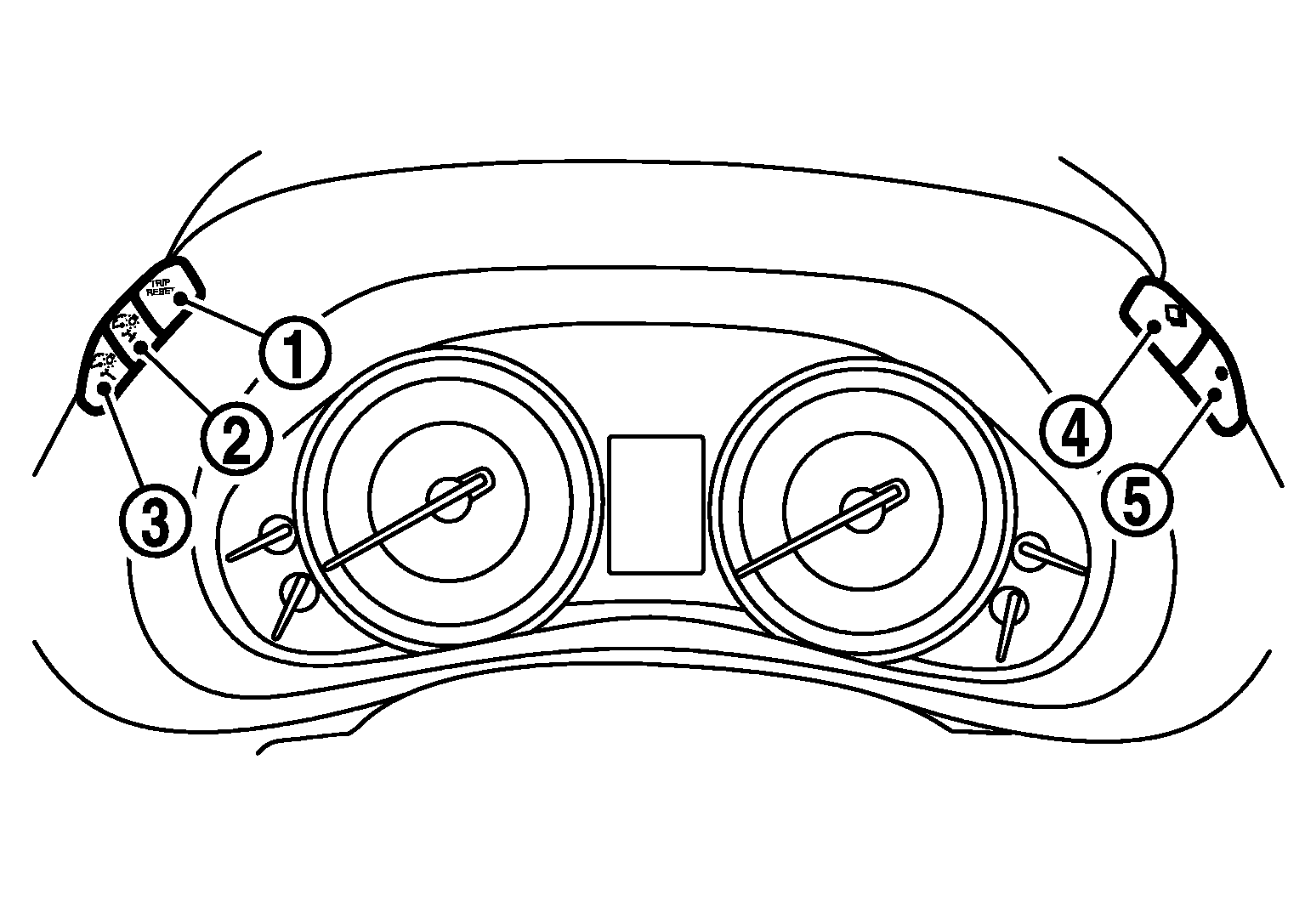

Trip reset and illumination control switch

Trip reset switch (1)

Press

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.

Illumination control switch (+) (2)

An illuminance level of the back light of the combination meter can be adjusted.

Illumination control switch (-) (3)

Trip computer switch

Enter switch (4)

• The information display screen can be switched.
• The item indicated on the information display can be confirmed.
• An indicated value of the trip computer can be reset by pressing and holding the enter switch.

Select switch (5)

When plural items are shown on the information display, a selected item can be changed to the other item.
