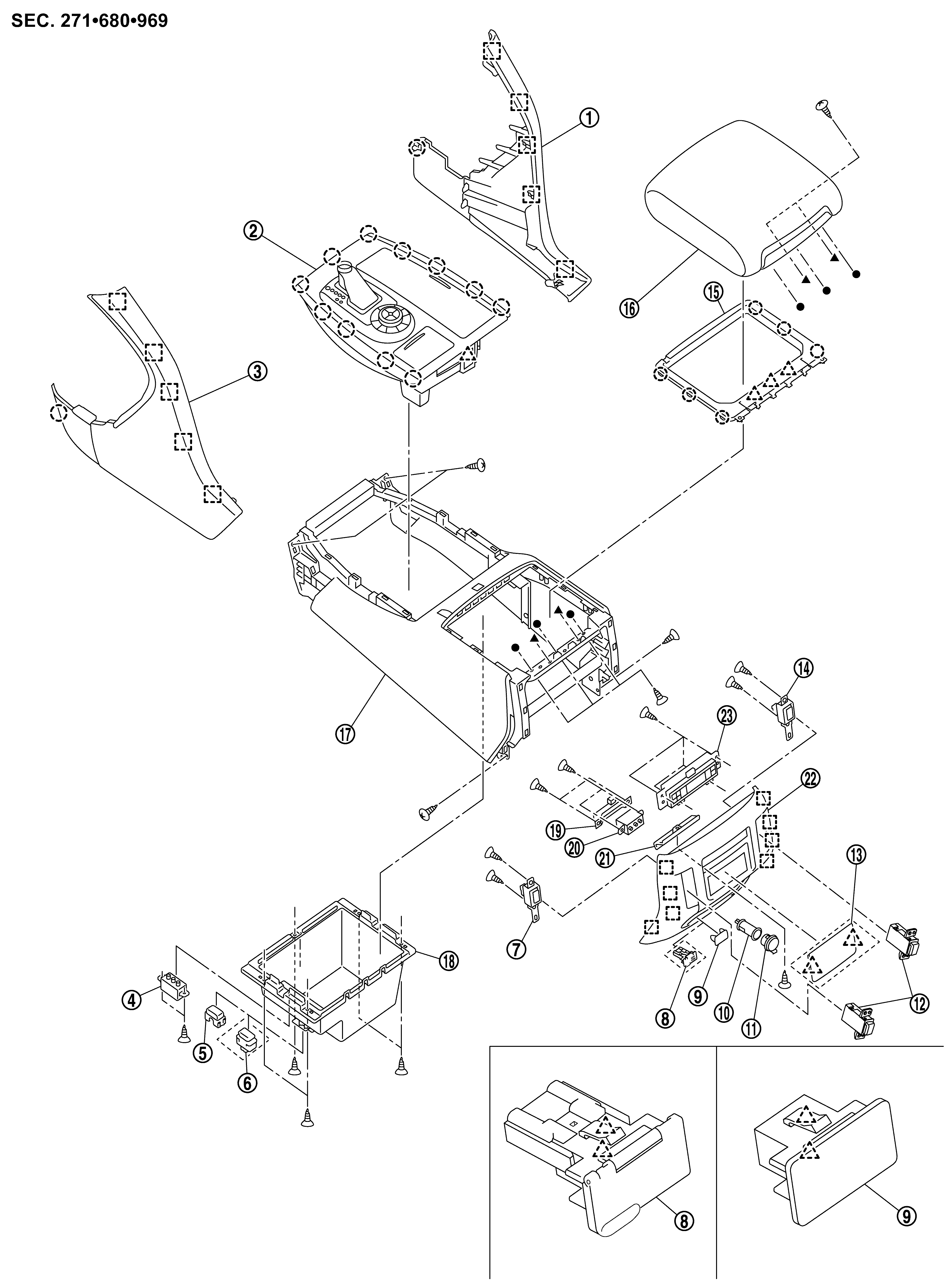

CENTER CONSOLE ASSEMBLY : Exploded View

1.

Instrument center finisher RH

2.

Console finisher assembly

3.

Instrument center finisher LH

4.

Front auxiliary input jacks

(If equipped)

5.

Switch hole mask

6.

120V switch unit

7.

Second heated seat switch LH

8.

120V unit

9.

Mask

10.

Inner socket

11.

Socket knob

12.

USB connector

13.

Mask (ashtray)

14.

Second heated seat switch RH

15.

Console hinge cover

16.

Console lid assembly

17.

Console body assembly

18.

Console box

19.

Inside key antenna

20.

Rear auxiliary input jacks

21.

Console ashtray bracket

(If equipped)

22.

Console rear finisher

23.

Rear A/C control

: Clip

: Pawl

: Metal clip

, : Indicates that the part is connected at points with same symbol in actual vehicle.

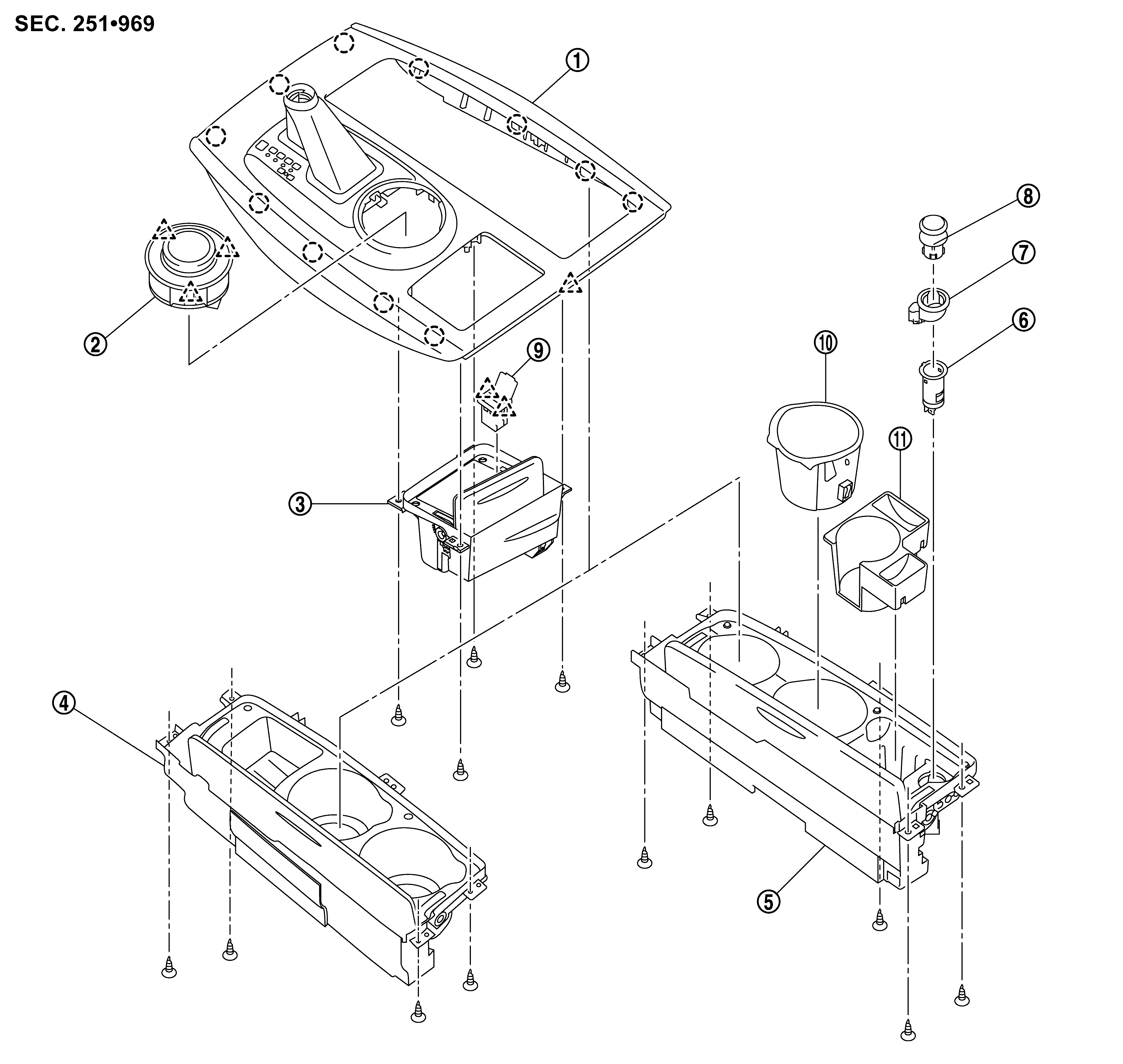

1.

AT control indicator assembly

2.

AWD: AWD switch assembly

2WD: SNOW MODE/TOW MODE/VDC OFF switch assembly

3.

Console pocket assembly

4.

Cup holder assembly

5.

Cup holder assembly

6.

Inner socket

7.

Socket ring

8.

Socket knob

9.

USB connector

(If equipped)

10.

Inner case

11.

Coin pocket

: Clip

: Pawl
