Component Inspection

REMOVE FUEL LEVEL SENSOR UNIT
Remove the fuel level sensor unit. Refer to Removal and Installation .

GO TO 2.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP

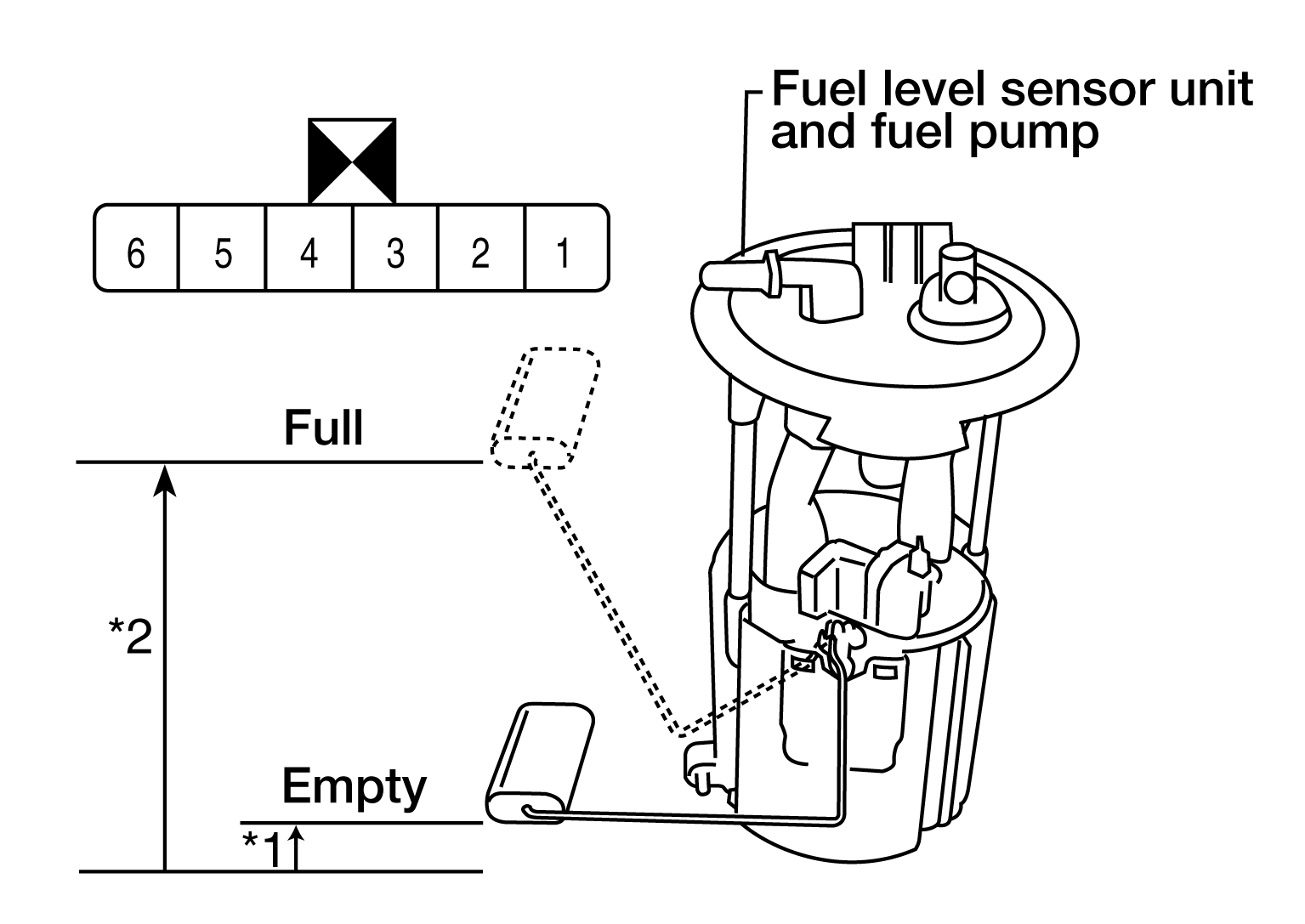

Check the resistance between terminals 2 and 5.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal

Float position

mm (in)

Resistance value

(Approx.)

Empty

15.7 (0.6)

283 Ohm

Full

133 (5.2)

51 Ohm

*1 and *2: When float arm is in contact with stopper.

Is inspection result OK?

YES

Inspection End.

Replace fuel level sensor unit and fuel pump. Refer to Removal and Installation .
