Disassembly and Assembly: Disassembly

  1. Remove center console rear finisher by releasing clips and pawls using a suitable tool.

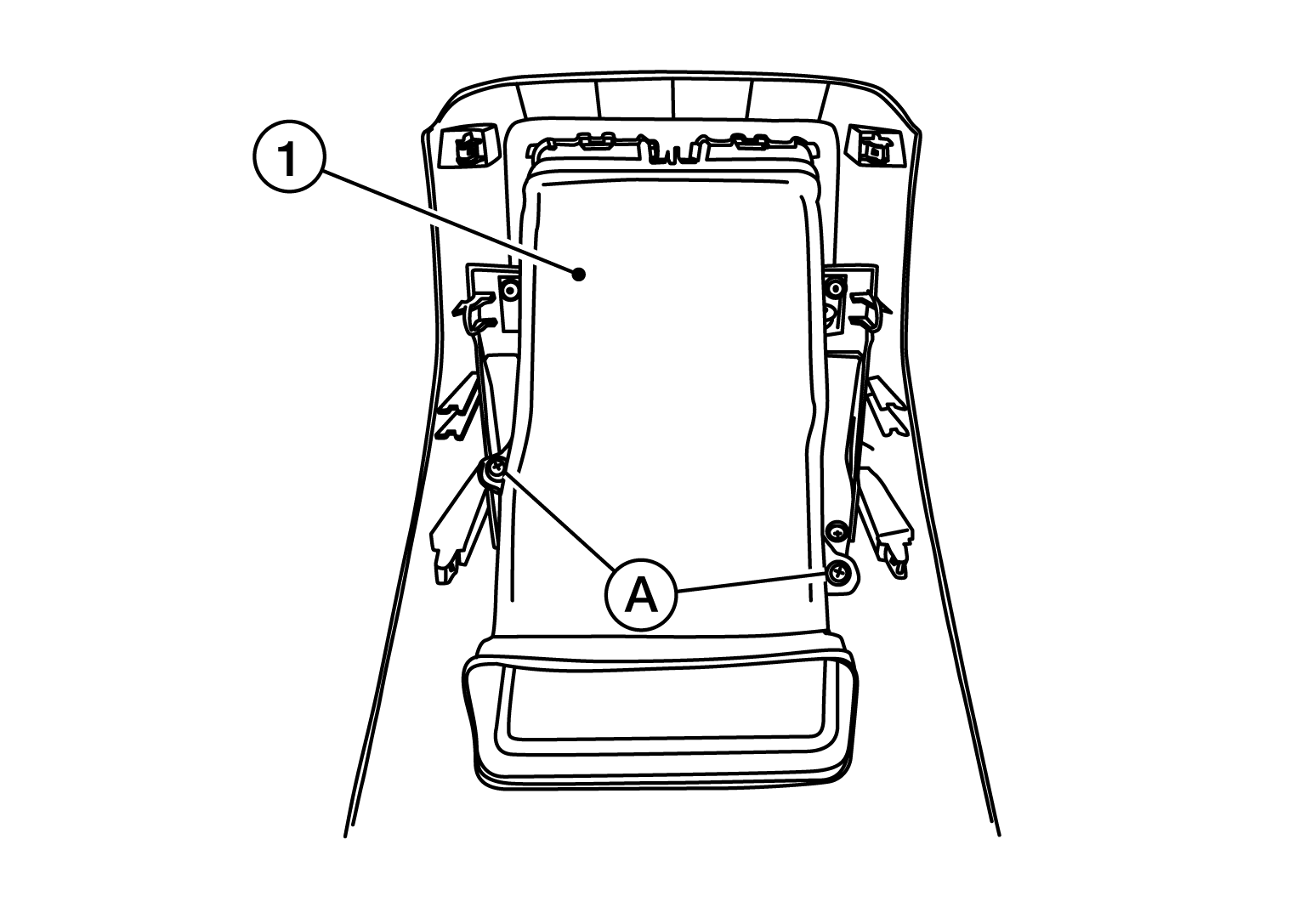

  2. Remove rear center ventilator duct screws (A), then remove the rear center ventilator duct (1).
    GNSDB124390Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release rear center ventilator grille assembly pawls using a suitable tool and remove.
  4. Remove rear blower control.
  5. Remove center console rear finisher upper bracket screws, then remove the center console rear finisher upper bracket.
  6. Remove center console rear finisher lower bracket screws, then remove the center console rear finisher lower bracket.
  7. Remove power socket. Refer to Removal and Installation .
  8. Remove AC 120 V outlet (if equipped). Refer to Removal and Installation .
  9. Remove 2nd row heated seat switches (LH/RH) (if equipped).
  10. Remove rear auxiliary input jacks (if equipped). Refer to Removal and Installation .
