Removal and Installation: Removal

  1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
  2. Remove instrument side finishers (LH/RH) (1) using a suitable tool.
    GNSALJIA0335Z-335Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH side shown; RH side similar
  3. Remove front kicking plates (LH/RH). Refer to Removal and Installation - Front Kicking Plate .
  4. Remove front pillar finishers (LH/RH). Refer to Removal and Installation .
  5. Remove combination switch. Refer to Removal and Installation .
  6. Remove instrument lower panel LH. Refer to Removal and Installation .
  7. Remove center console assembly. Refer to Removal and Installation .
  8. Remove combination meter. Refer to Removal and Installation .
  9. Remove AV control unit. Refer to Removal and Installation .
  10. Remove front display unit. Refer to Removal and Installation .
  11. Remove glove box assembly. Refer to Removal and Installation .
  12. Remove instrument panel tweeter grilles (LH/RH) and center speaker grille.

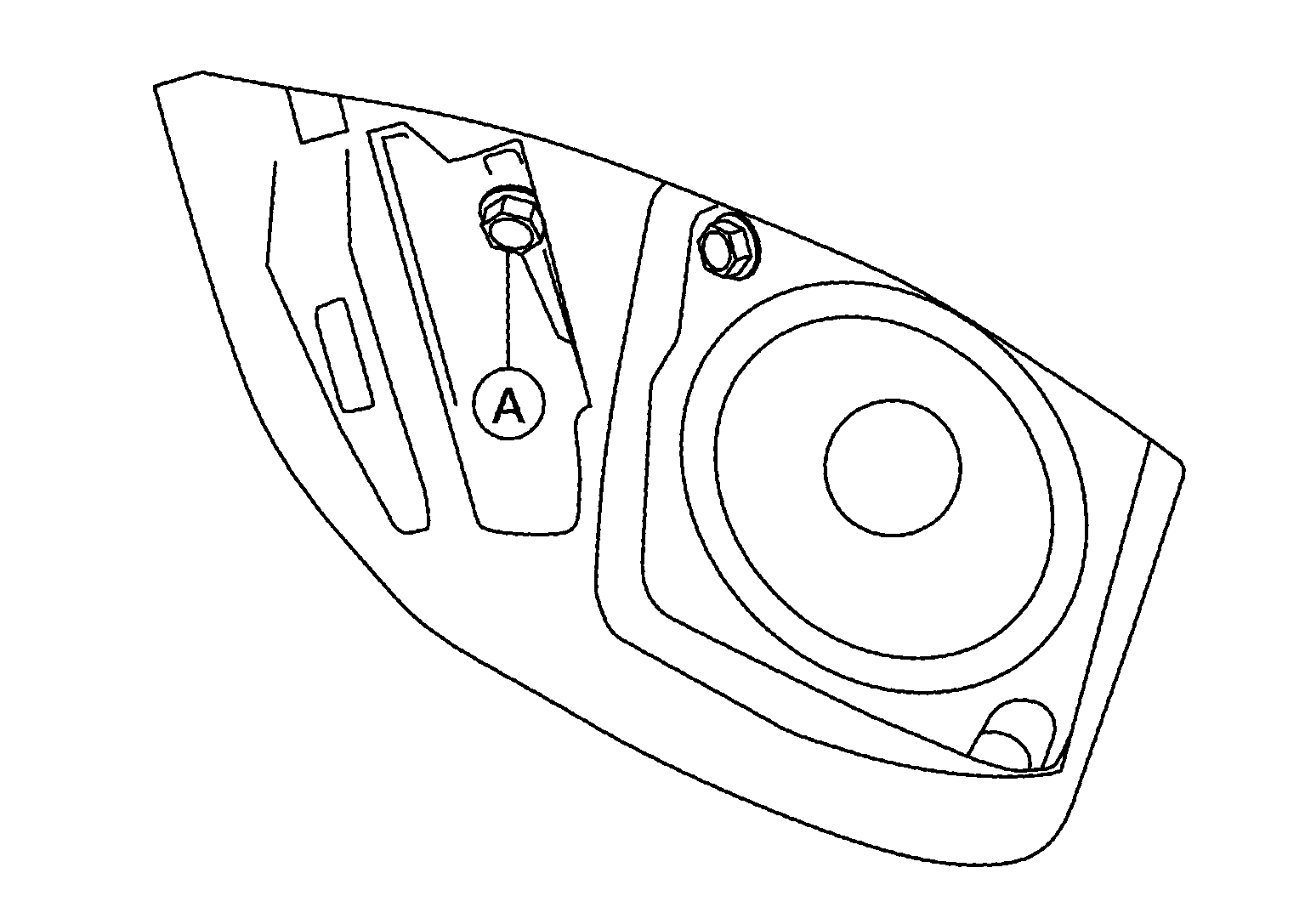

  13. Remove instrument panel bolt (A) from the instrument panel tweeter grille RH area.
    GNSDB121309Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove front passenger air bag module. Refer to Removal and Installation .
  15. Remove instrument panel assembly screws.
  16. Disconnect the harness connectors from the instrument panel assembly.
  17. Disconnect the antenna cable.
  18. Remove the instrument panel assembly.
