Removal and Installation: Removal

  1. Remove instrument side finisher (LH) (1) using a suitable tool.
    GNSALJIA0335Z-335Courtesy of NISSAN NORTH AMERICA, INC.

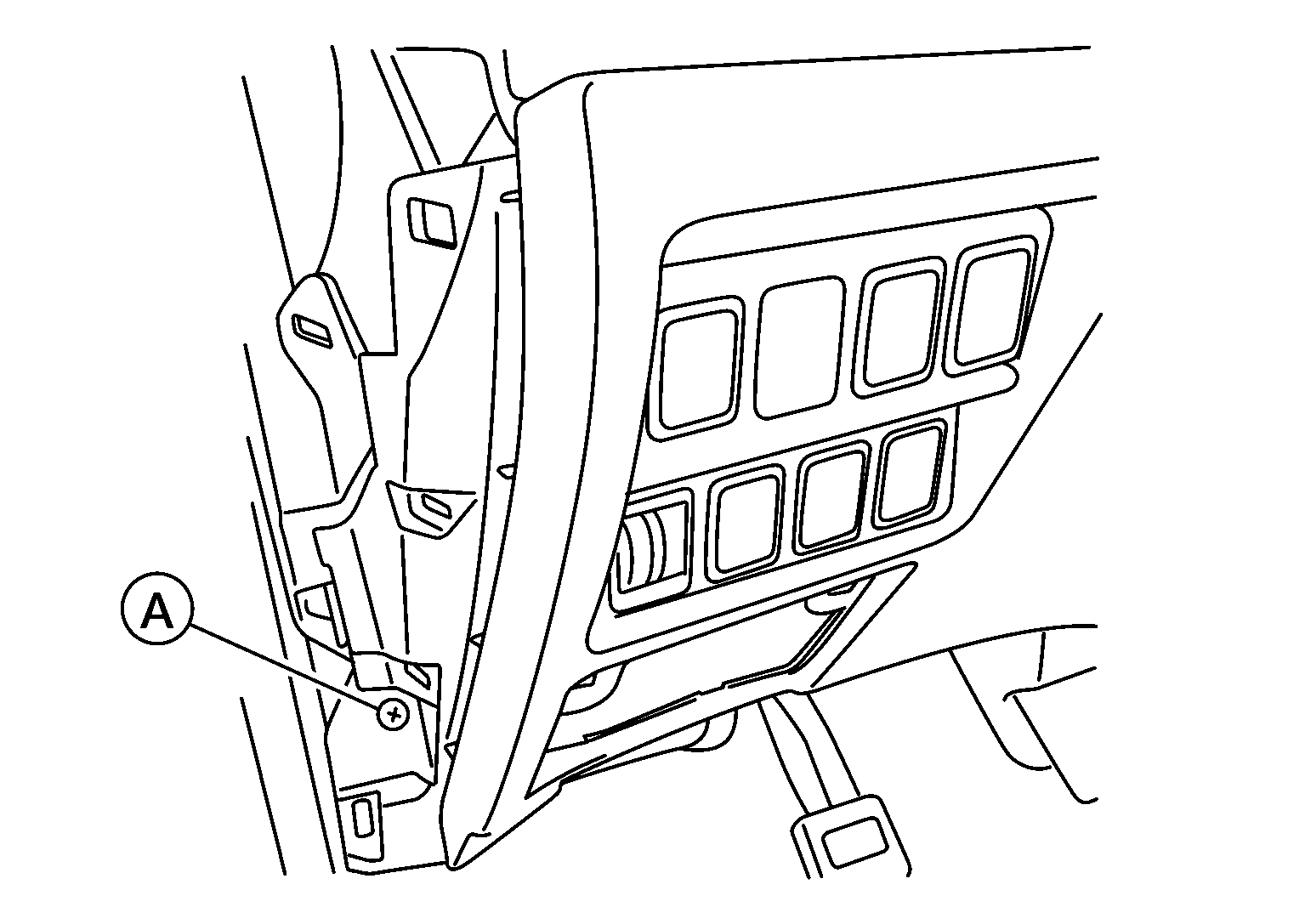

  2. Remove instrument lower panel LH screw (A).
    GNSDB114582Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove hood lock release handle from instrument lower panel LH. Refer to Exploded View .
  4. Remove data link connector from instrument lower panel LH.

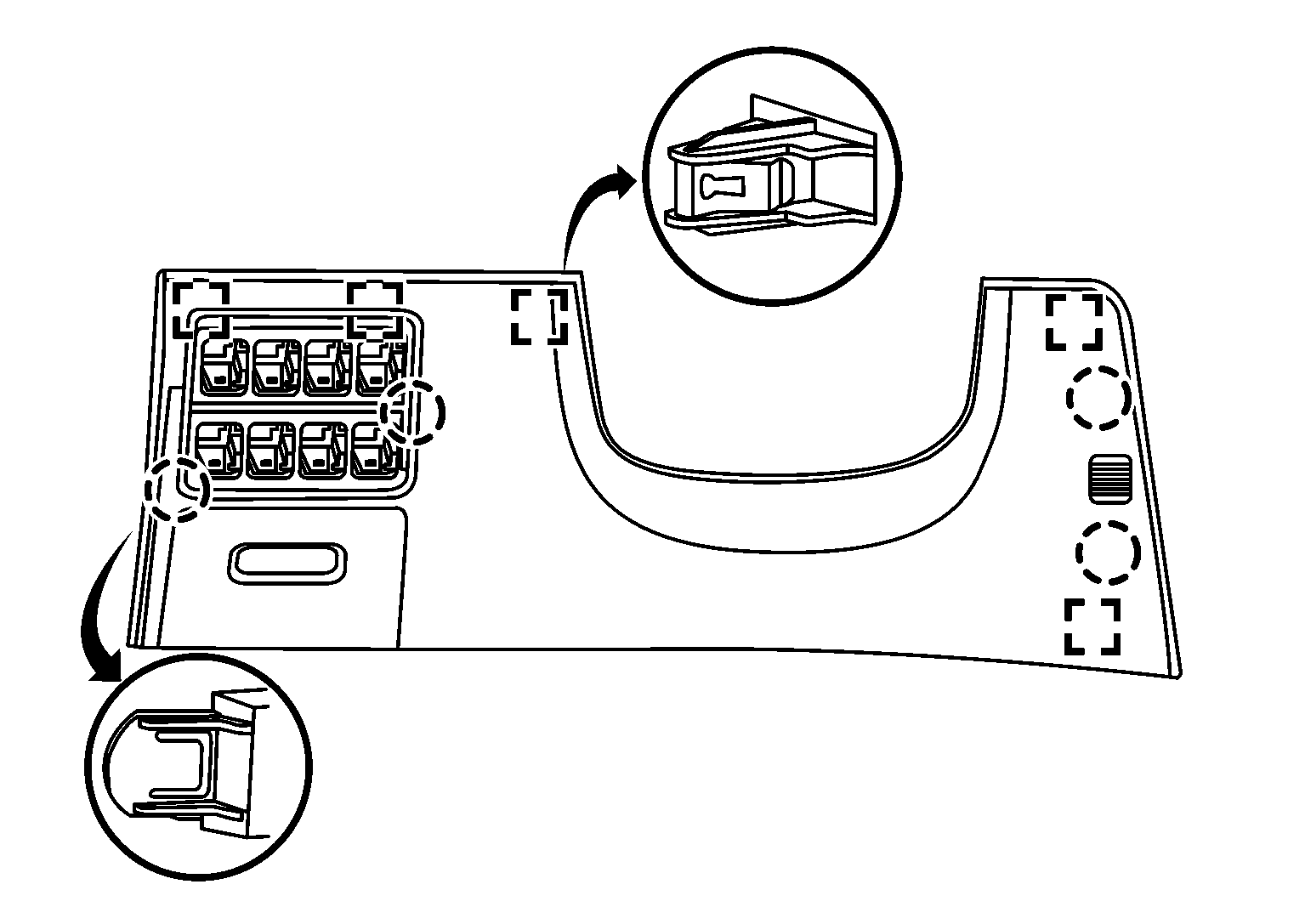

  5. Release instrument lower panel LH clips and pawls using a suitable tool.
    GNSALJIA1089Z-089Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

  6. Disconnect aspirator hose from instrument lower panel LH.
  7. Disconnect harness connectors and remove instrument lower panel LH.
