Removal and Installation: Removal

  1. Remove instrument side finisher (RH) using a suitable tool.
  2. Remove glove box assembly lower screws (A).
    GNSDB122973Courtesy of NISSAN NORTH AMERICA, INC.

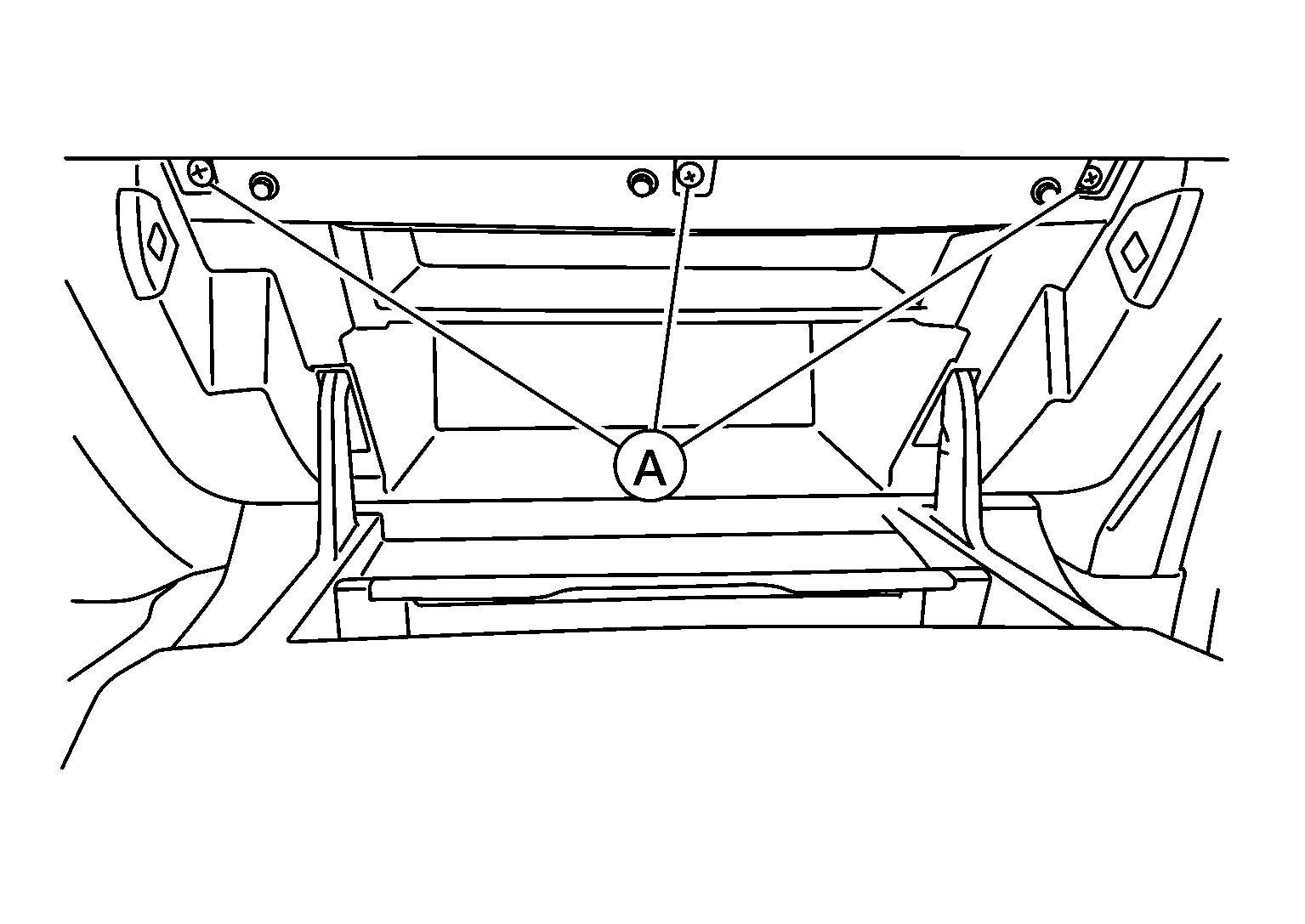

  3. Open glove box lid, then remove the glove box assembly upper screws (A).
    GNSDB117167Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from the glove box assembly and remove.
