Removal and Installation: Removal

CAUTION: Be careful not to scratch center console finishers and other parts.

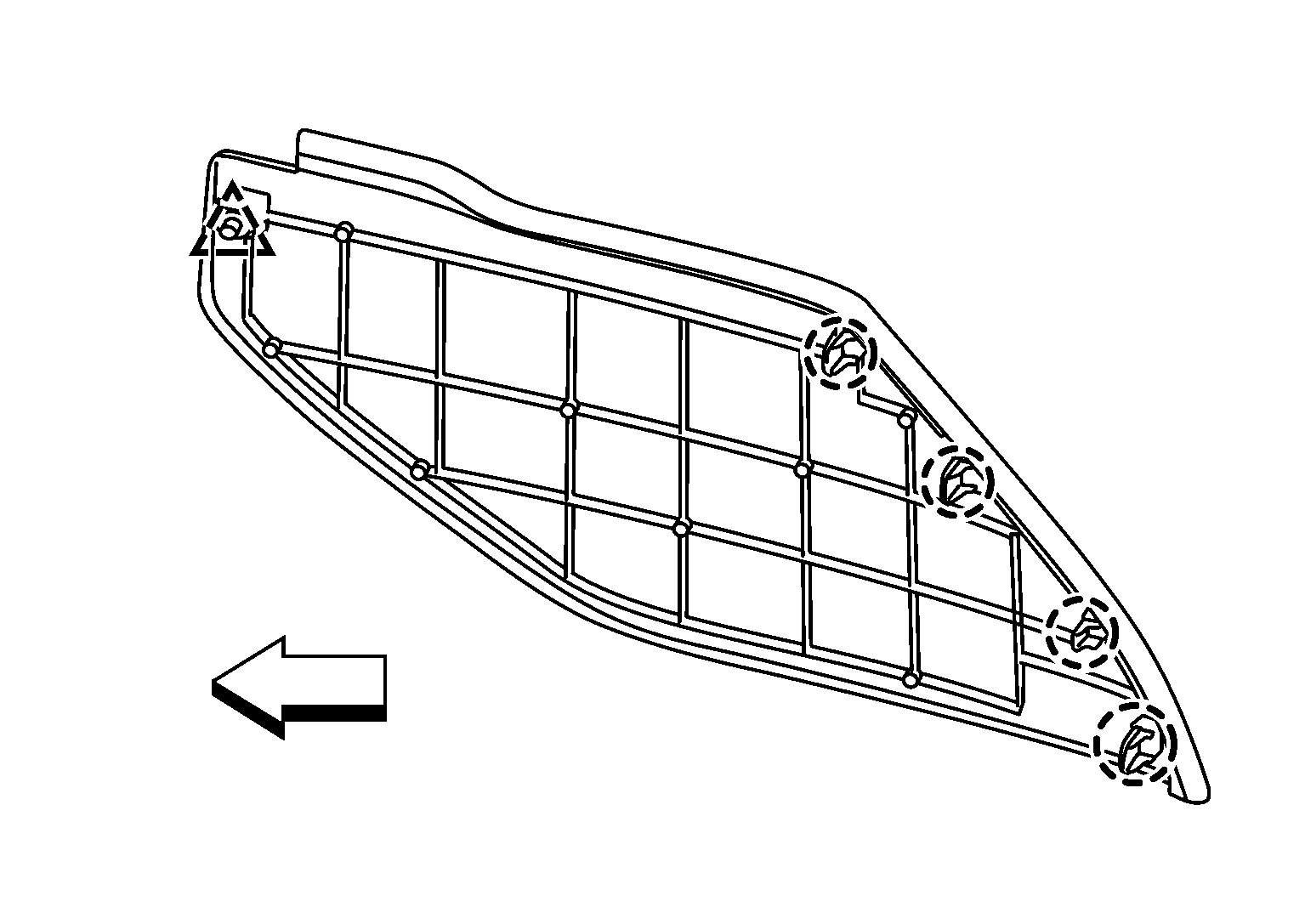

  1. Release center console side finisher (LH/RH) clip and pawls using a suitable tool and remove.
    GNSDB120153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Clip

    SYMBOL : Pawl

    SYMBOL : Front

  2. Remove front console mat from front console tray.

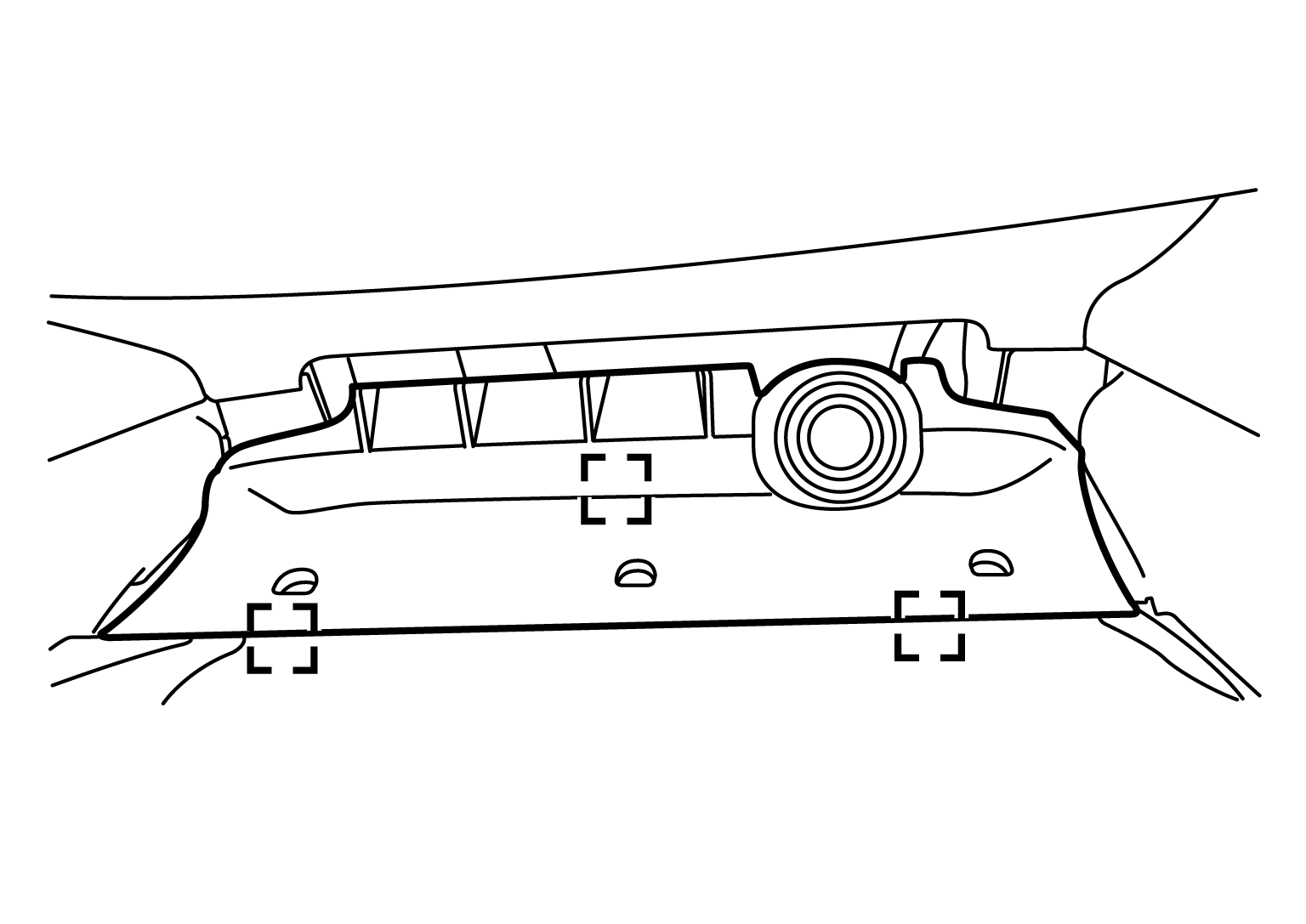

  3. Release front console tray clips using a suitable tool, disconnect the harness connector from the power outlet and remove.
    GNSALJIA2154Z-154Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  4. Remove shift selector handle. Refer to EXPLODED VIEW .
  5. Release shift selector finisher clips and pawls using a suitable tool, disconnect the harness connectors and remove.

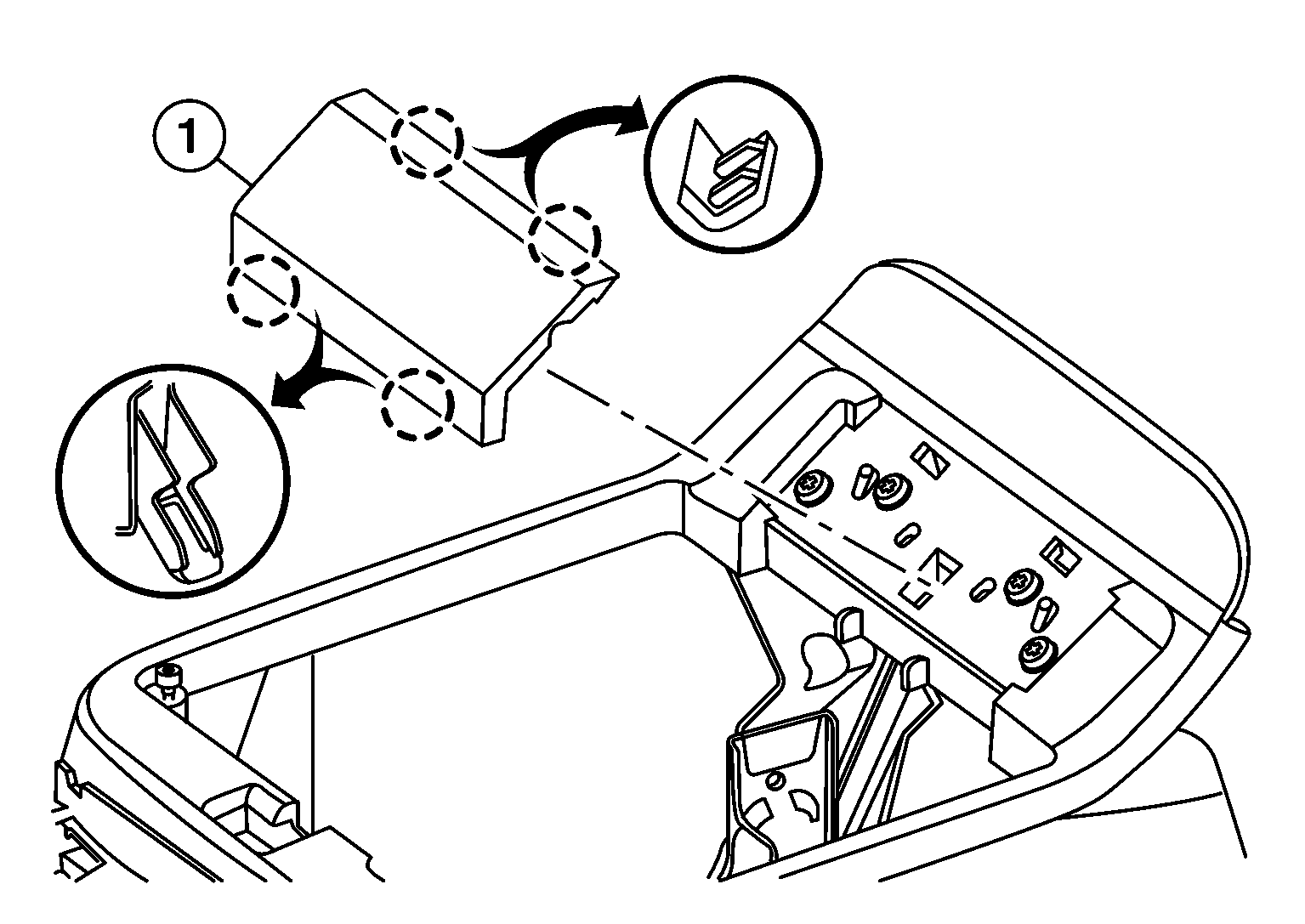

  6. Release center console rear brace finisher (1) pawls using a suitable tool and remove.
    GNSDB112609Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    NOTE: Center console bin lid removed for clarity.

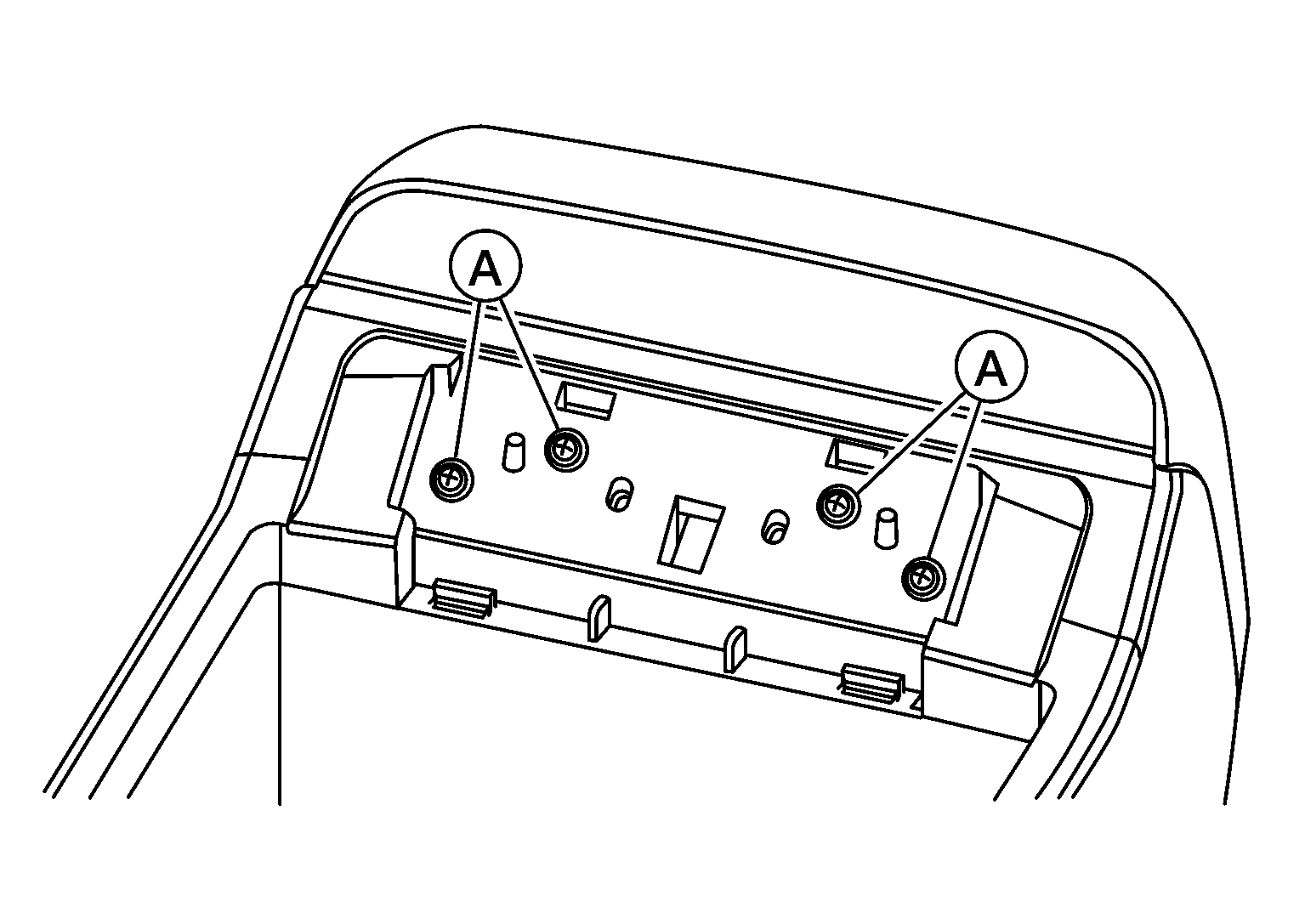

  7. Remove center console rear finisher screws (A).
    GNSALJIA1092Z-092Courtesy of NISSAN NORTH AMERICA, INC.
  8. Release center console rear finisher clips using a suitable tool, disconnect the harness connectors and remove.
    GNSDB123907Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  9. Remove center console assembly screws.
  10. Disconnect the harness connectors from the center console assembly and remove.
