Drive Belt: Inspection
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|

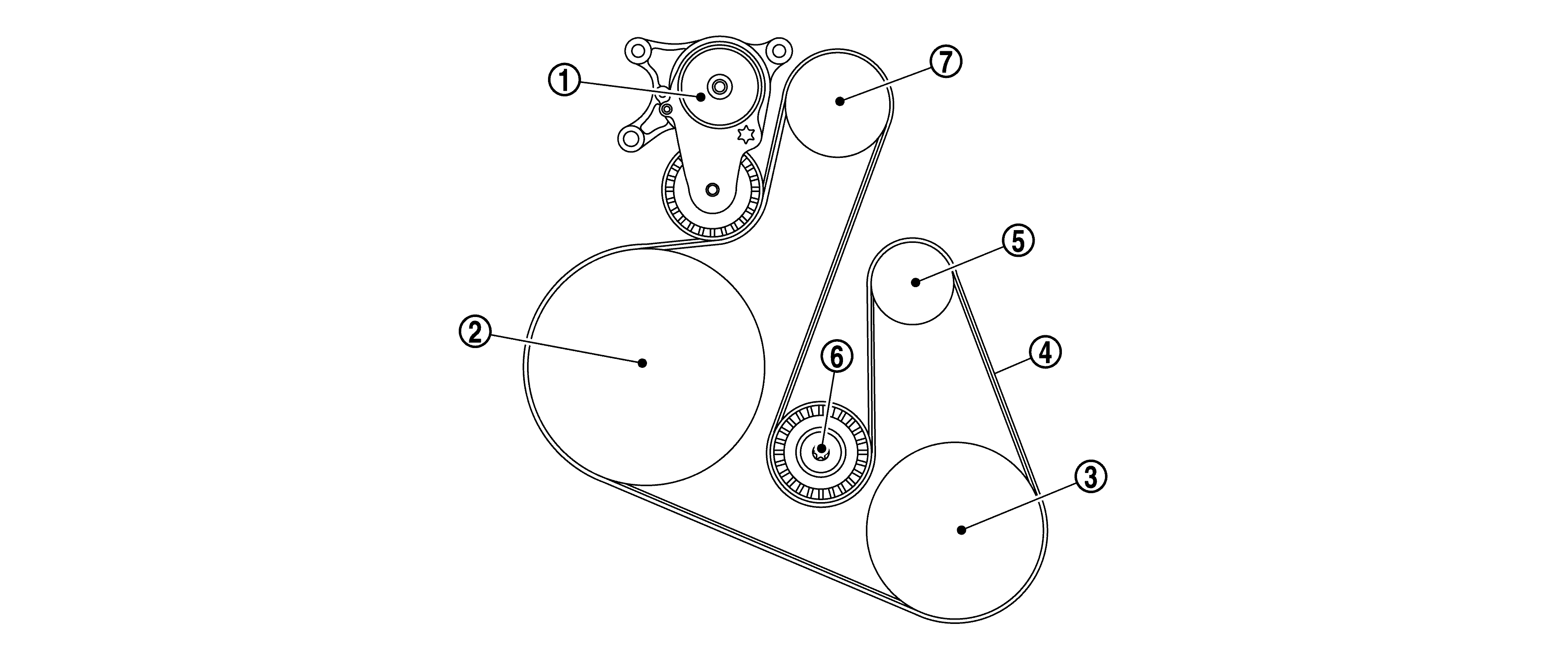

Drive belt auto-tensioner
|
|
Crankshaft pulley
|
|
A/C compressor
|
|
|
Drive belt
|
|
Alternator
|
|
Idler pulley
|
|
|
Water pump
|
CAUTION:
Never use the indicator of drive belt auto-tensioner.
NOTE:
- Visually check entire drive belt for wear, damage or cracks.
- Replace drive belt if belt is damaged.
