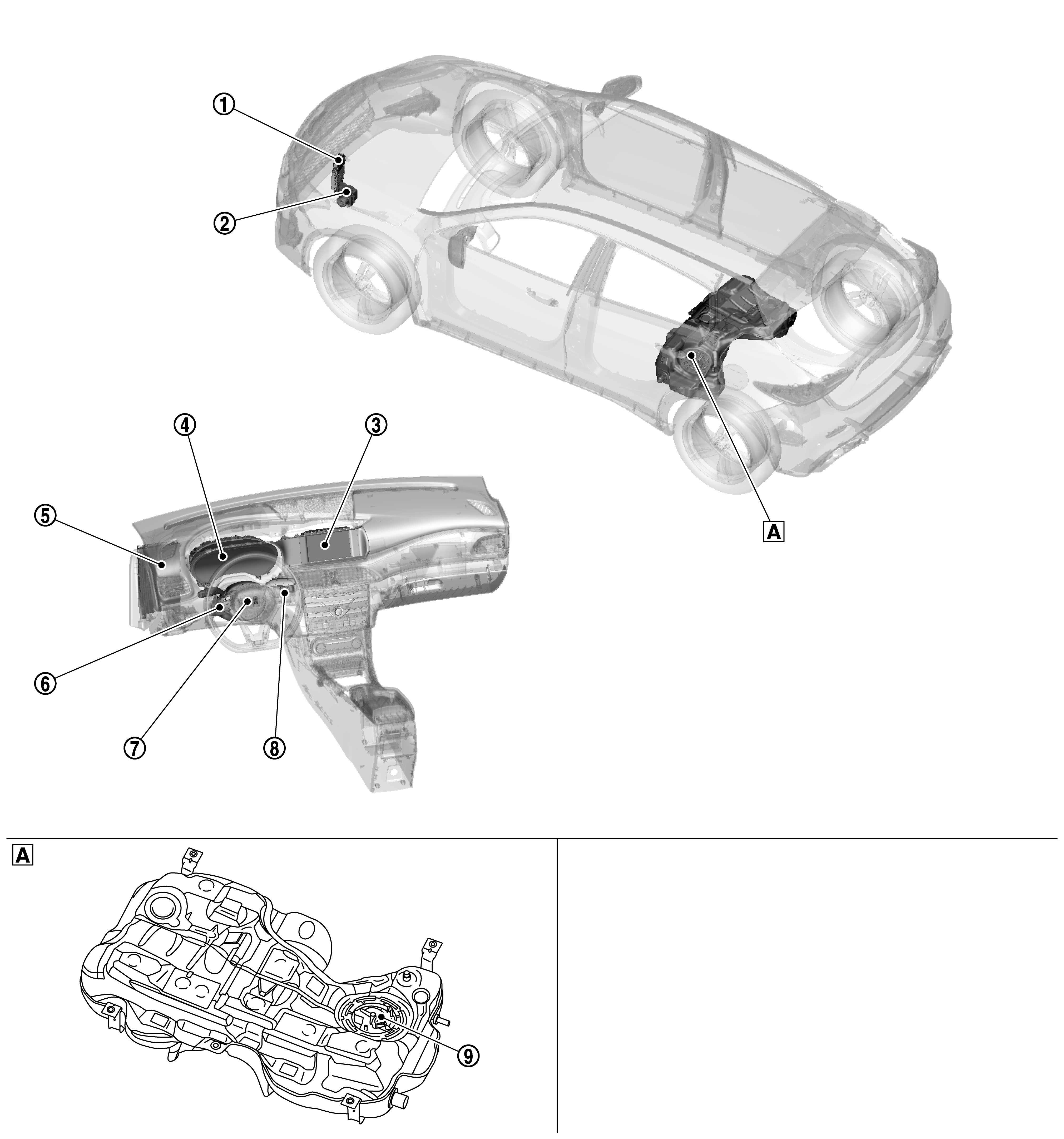

Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fuel tank removed condition

No.	Component	Function
	ECM	Transmits the following signals to the electronic ignition switch control unit via CAN communication. Engine speed signal Engine coolant temperature signal Fuel consumption monitor signal
	Electronic stability program control unit	Transmits the wheel speed signal to the electronic ignition switch control unit via CAN communication.
	Display control unit	Transmits the clock signal to the combination meter via CAN communication.
	Combination meter	Refer to Combination Meter .
	BCM	Transmits the following signals to the combination meter via CAN communication. Ambient sensor signal Fuel level sensor signal
	Steering switch	Refer to Steering Switch .
	Steering column control module	Transmits the steering switch signal to the combination meter.
	Electronic ignition switch control unit	Transmits the following signals to the combination meter via CAN communication. Wheel speed signal Engine speed signal Engine coolant temperature signal Fuel consumption monitor signal
	Fuel level sensor unit and fuel pump	Transmits the fuel level sensor signal to the BCM.
