Removal and Installation: Removal

CAUTION: When removing, always use a remover tool that is made of plastic.
  1. Remove center console finisher.
    1. Remove center console center finisher.

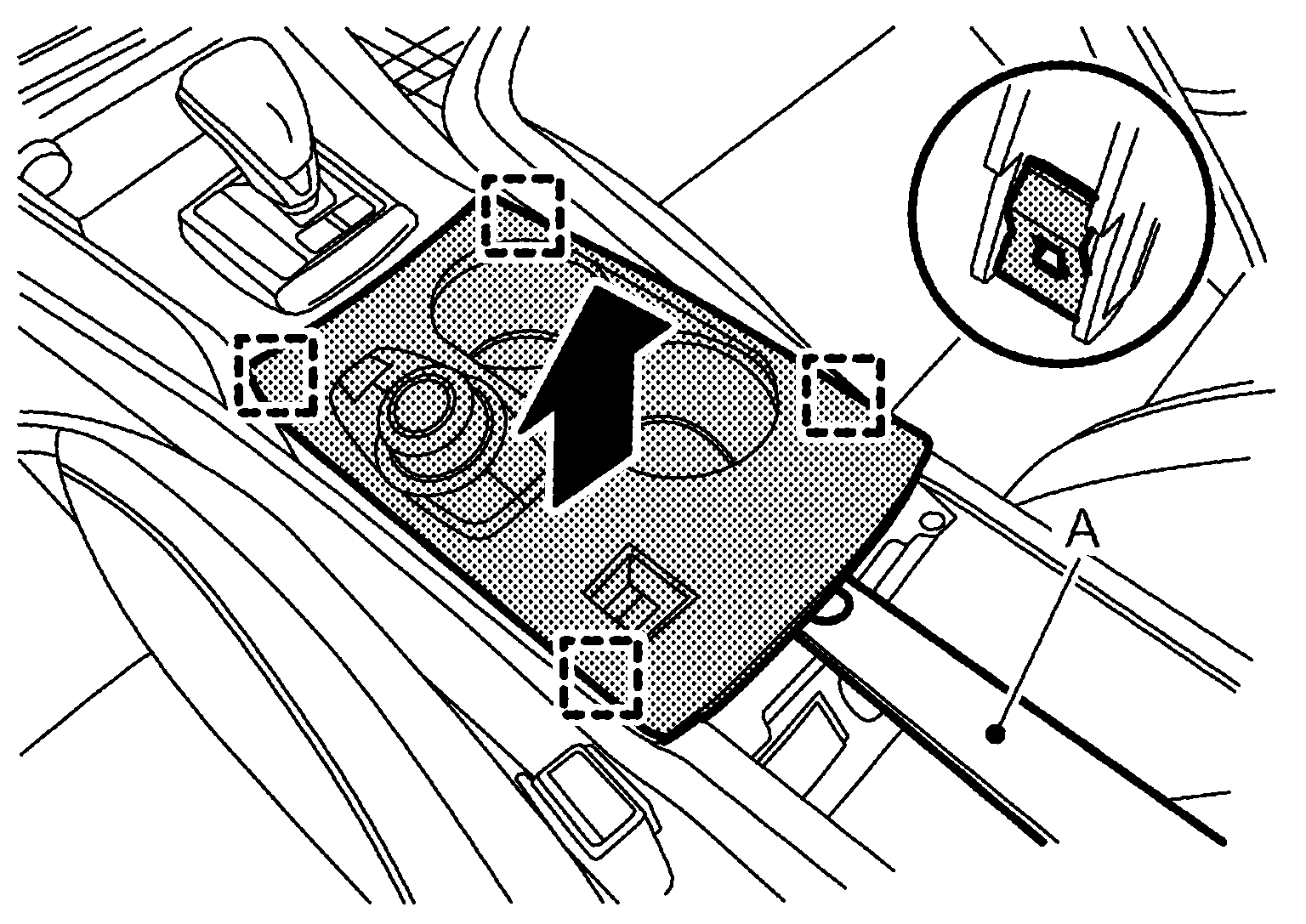

      1. Disengage metal clips using a remover tool (A), and then remove center console center finisher.
        GNSJMJIB1557Z-557Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Metal clip
      1. Disconnect harness connectors.
    2. Remove center console front finisher.

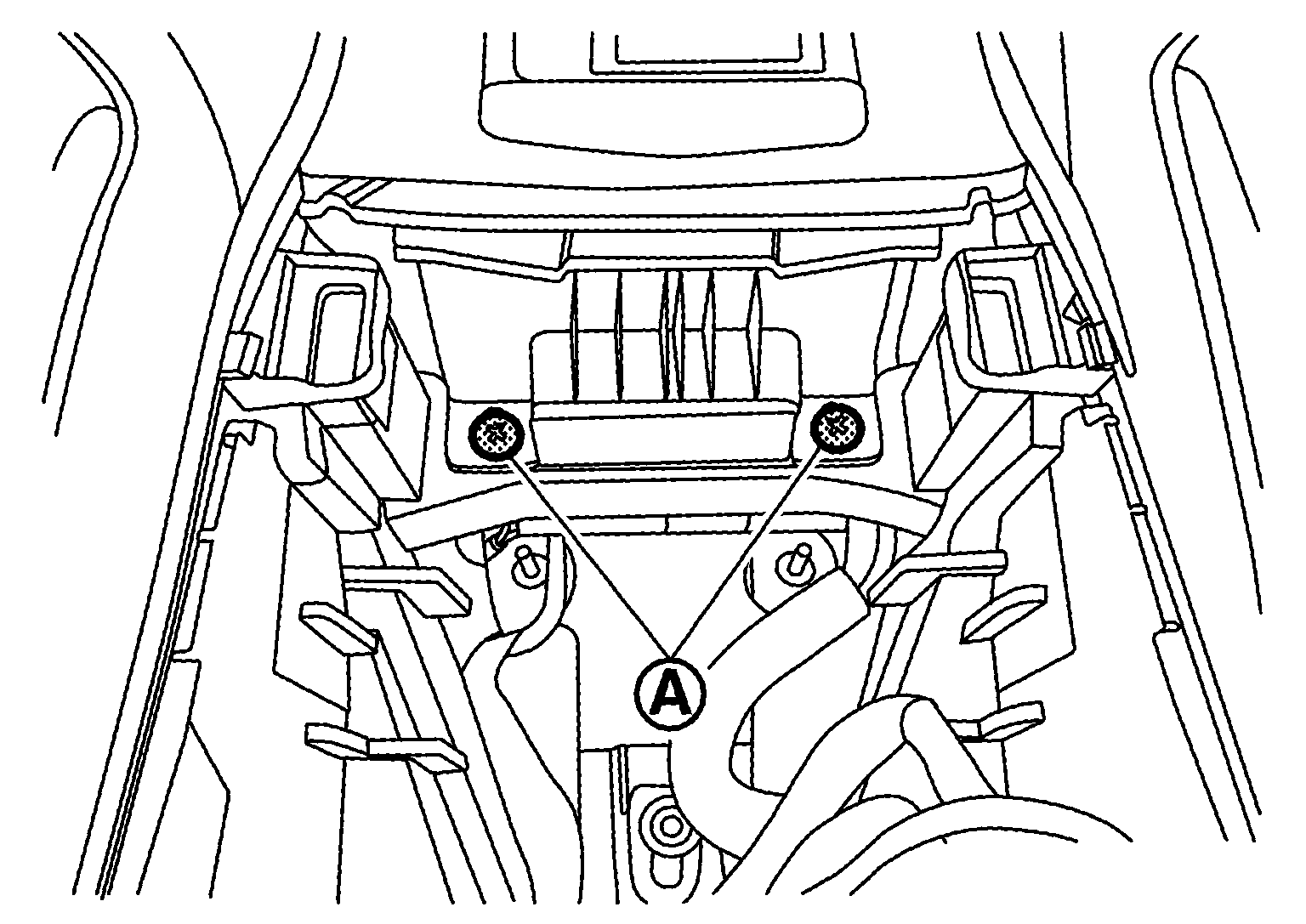

      1. Remove center console front finisher fixing screws SYMBOL .
        GNSJMJIB1558Z-558Courtesy of NISSAN NORTH AMERICA, INC.

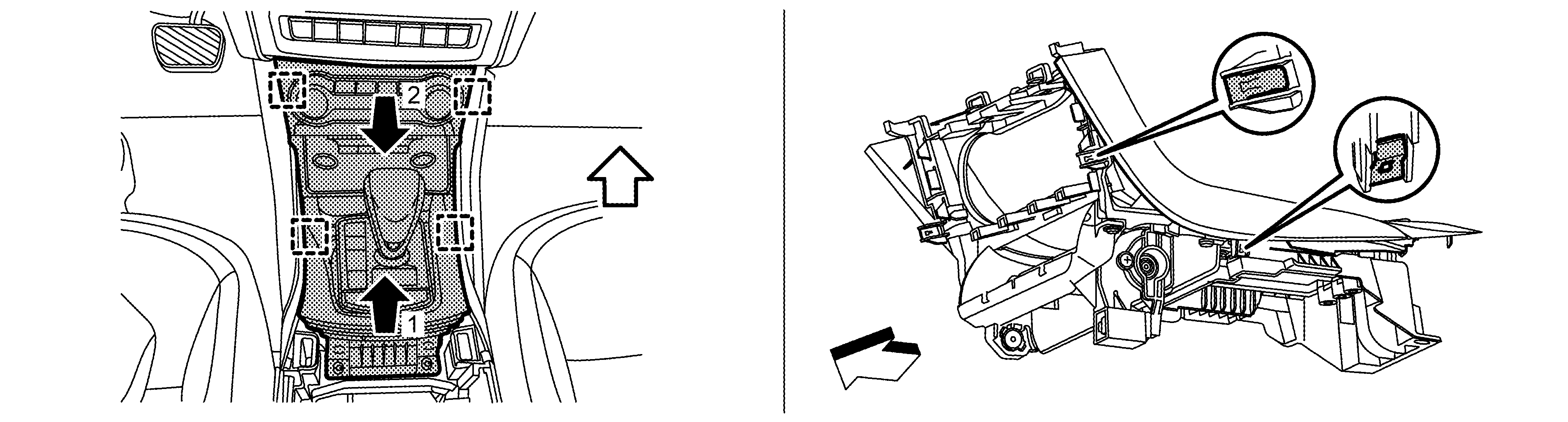

      1. Disengage metal clips, and then remove center console front finisher according to the numerical order 1->2 as shown in the figure.
        GNSJMJIB1559Z-559Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Vehicle front

        SYMBOL

        : Metal clip
      1. Disconnect harness connectors.
  2. Remove center console mask.

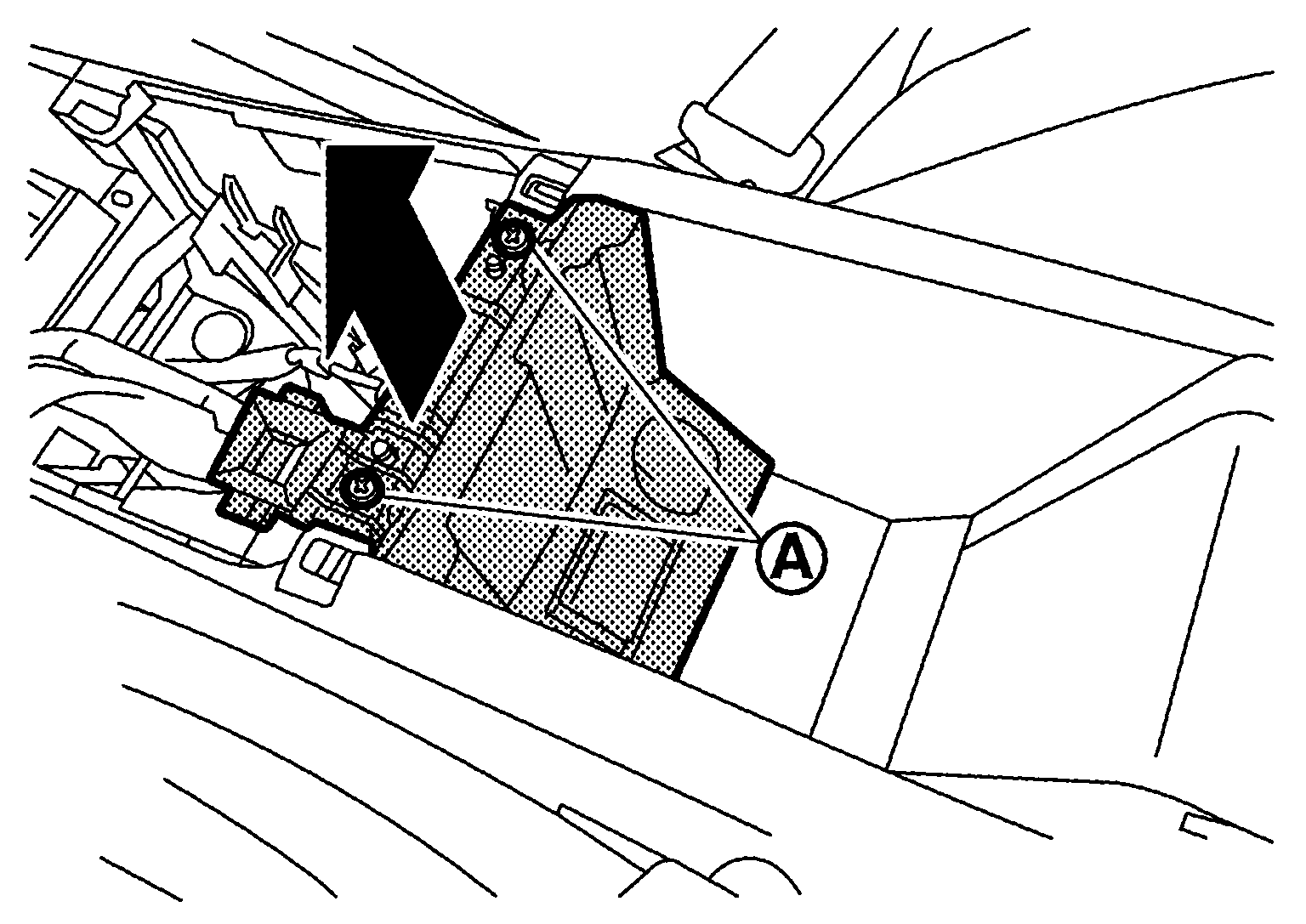

    1. Remove center console mask fixing screws SYMBOL , and then remove center console mask.
      GNSJMJIB1562Z-562Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect harness connectors.
  3. Remove center console rear finisher.

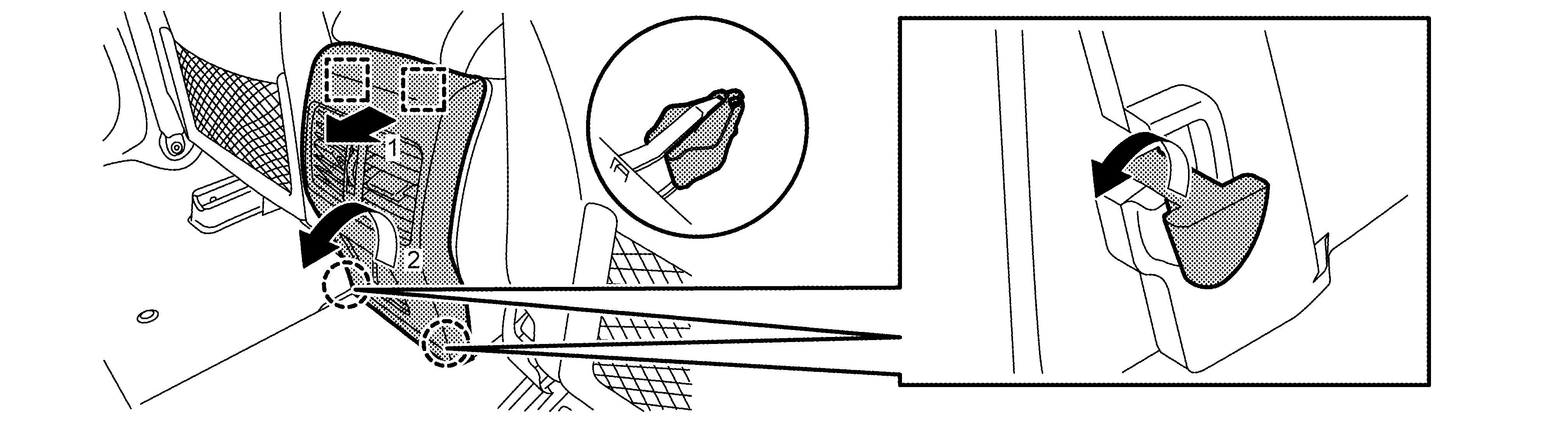

    1. Disengage metal clips, and then remove center console rear finisher according to the numerical order 1->2 as shown in the figure.
      GNSJMJIB1563Z-563Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Metal clip
    2. Disconnect harness connector.
  4. Remove center console assembly.
    1. Remove center console assembly fixing screws SYMBOL and mounting nuts SYMBOL .

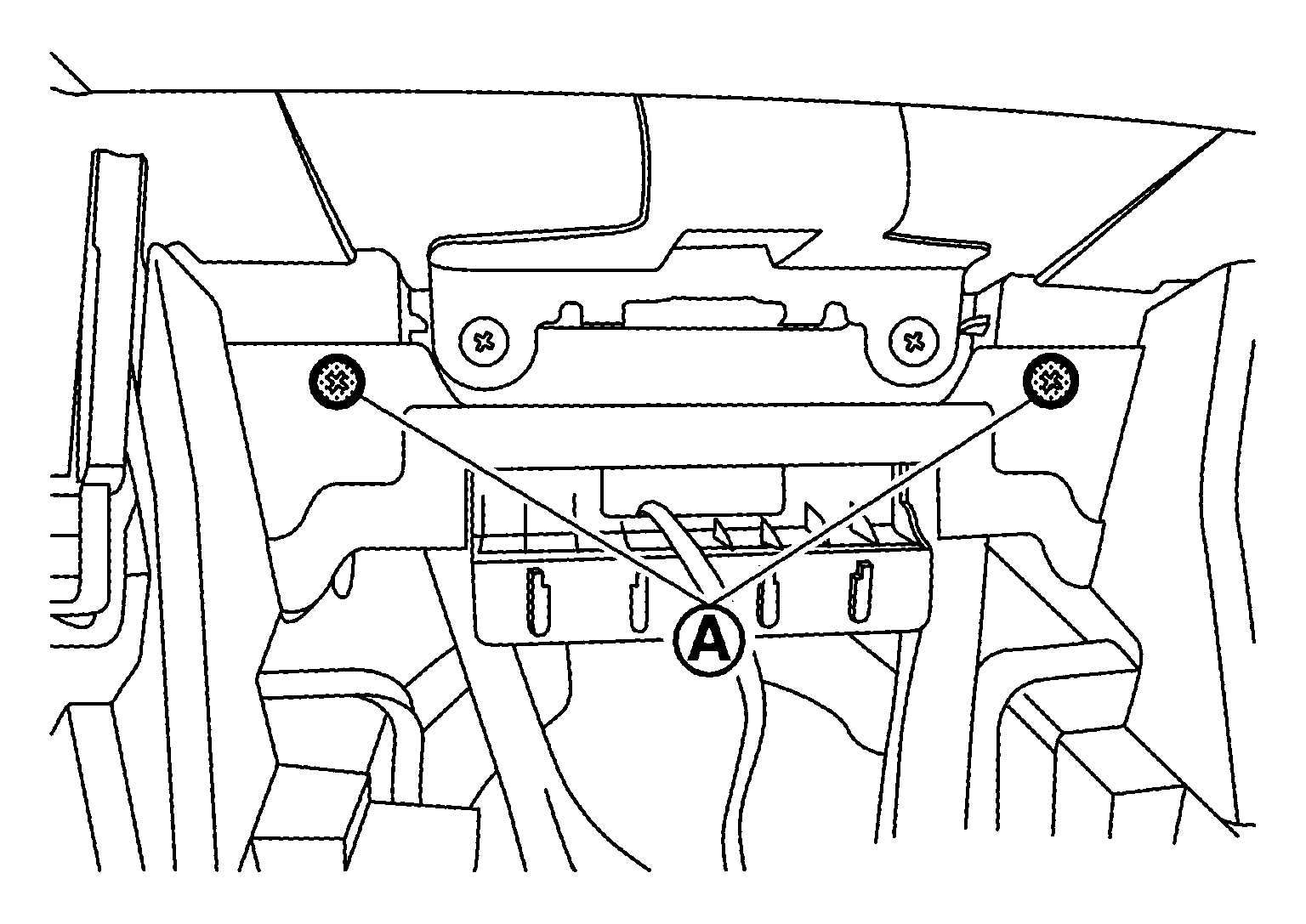

      • Front side
      GNSJMJIB1564Z-564Courtesy of NISSAN NORTH AMERICA, INC.

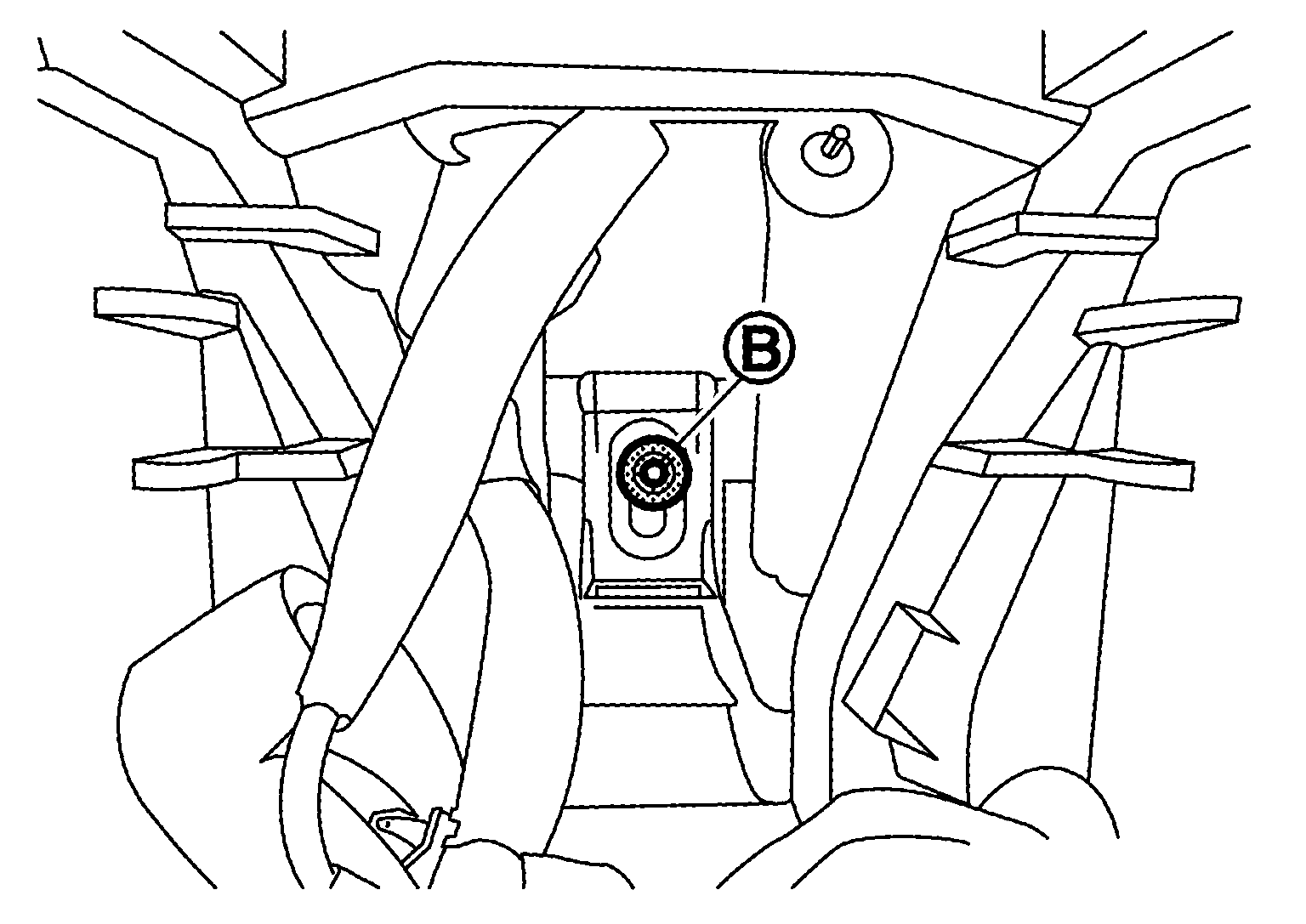

      • Center side
      GNSJMJIB1565Z-565Courtesy of NISSAN NORTH AMERICA, INC.

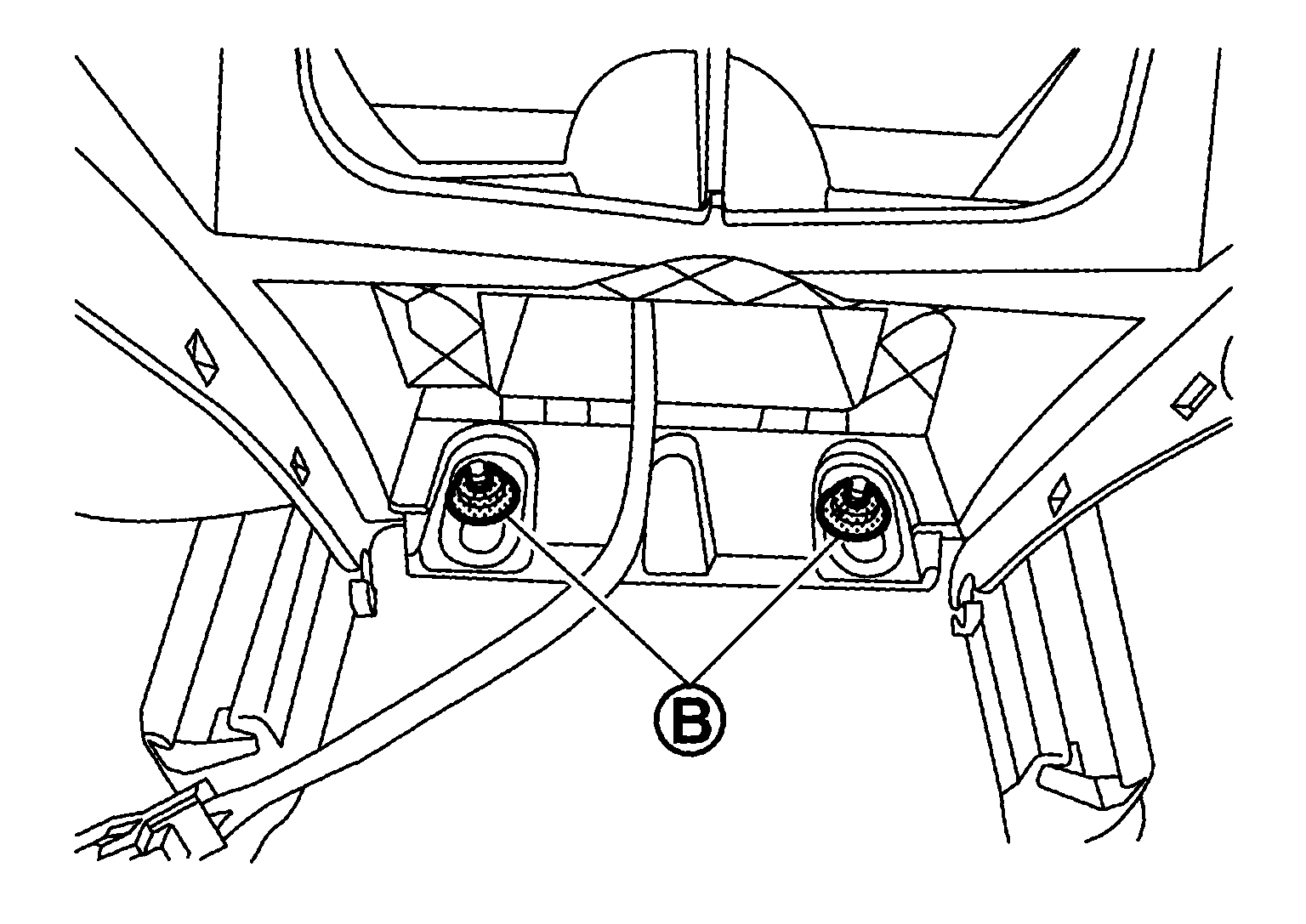

      • Rear side
      GNSJMJIB1566Z-566Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect harness connectors.
    3. Lift up to remove center console assembly.
