Disassembly And Assembly Of Center CONSOR Assembly
CAUTION:
When disassembling, always use a remover tool that is made of plastic.
Disassembly

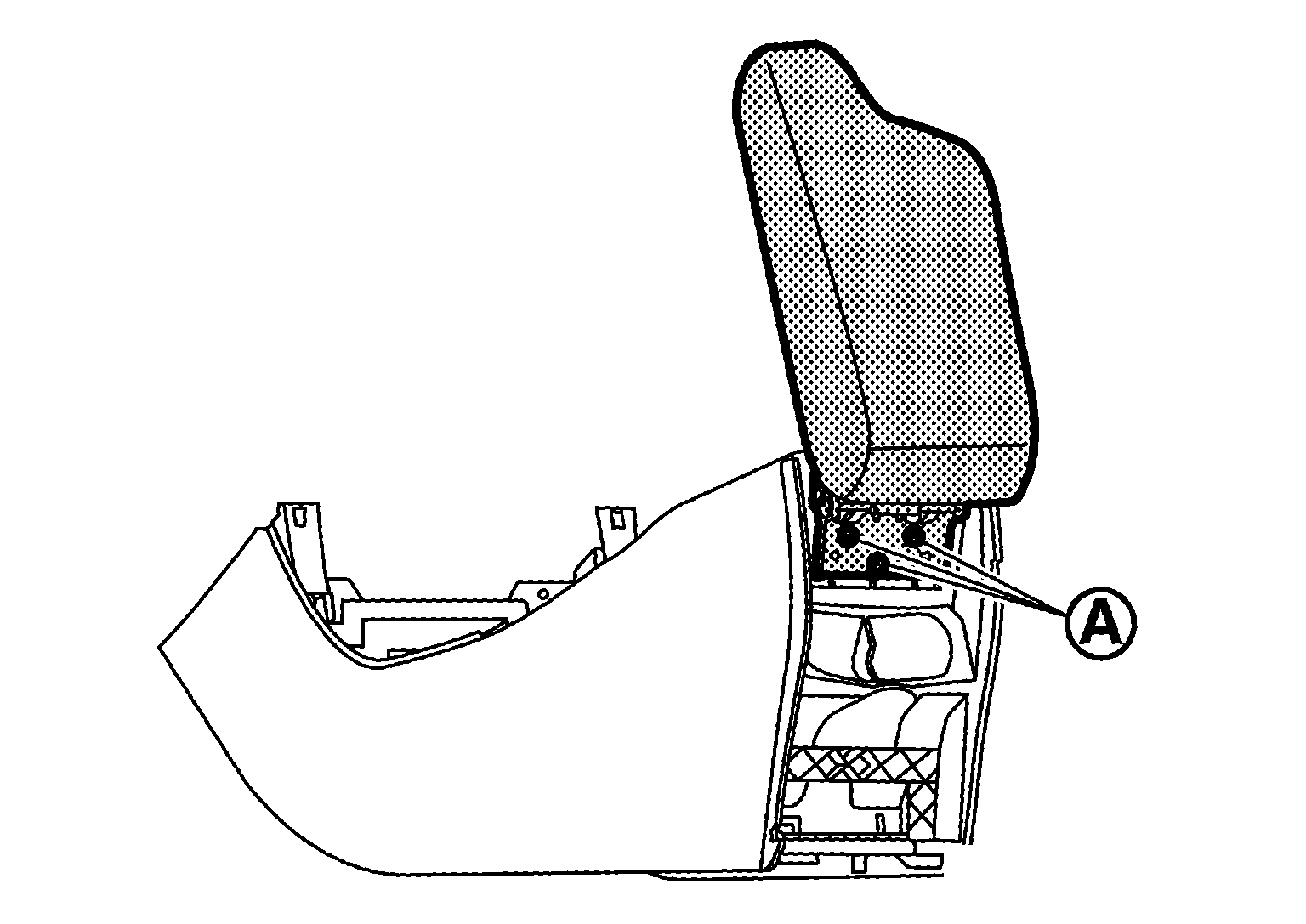

- Remove center console lid fixing screws
. and then remove center console lid.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
Assembly
Assemble in the reverse order of disassembly.
