Exploded View

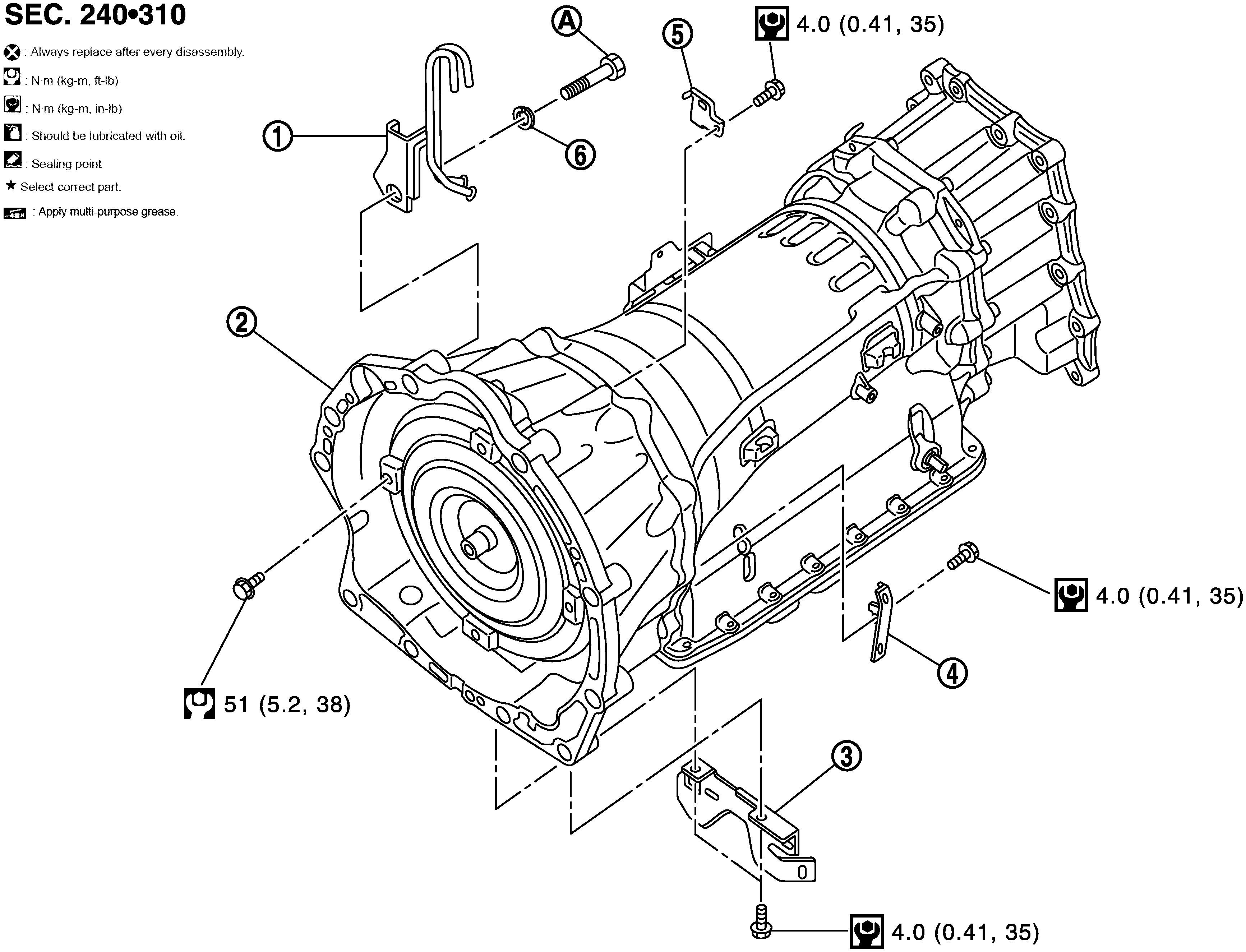

Fig 1: Transmission Assembly AWD 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Air breather tube	2.	A/T assembly	3.	Bracket
4.	Bracket	5.	Bracket	6.	Spring washer
A.	Tightening must be done following the installation procedure. Refer to Removal and Installation .
Refer to Components for symbols in the figure.
