Rear Oil Seal
>>
AWD
>>

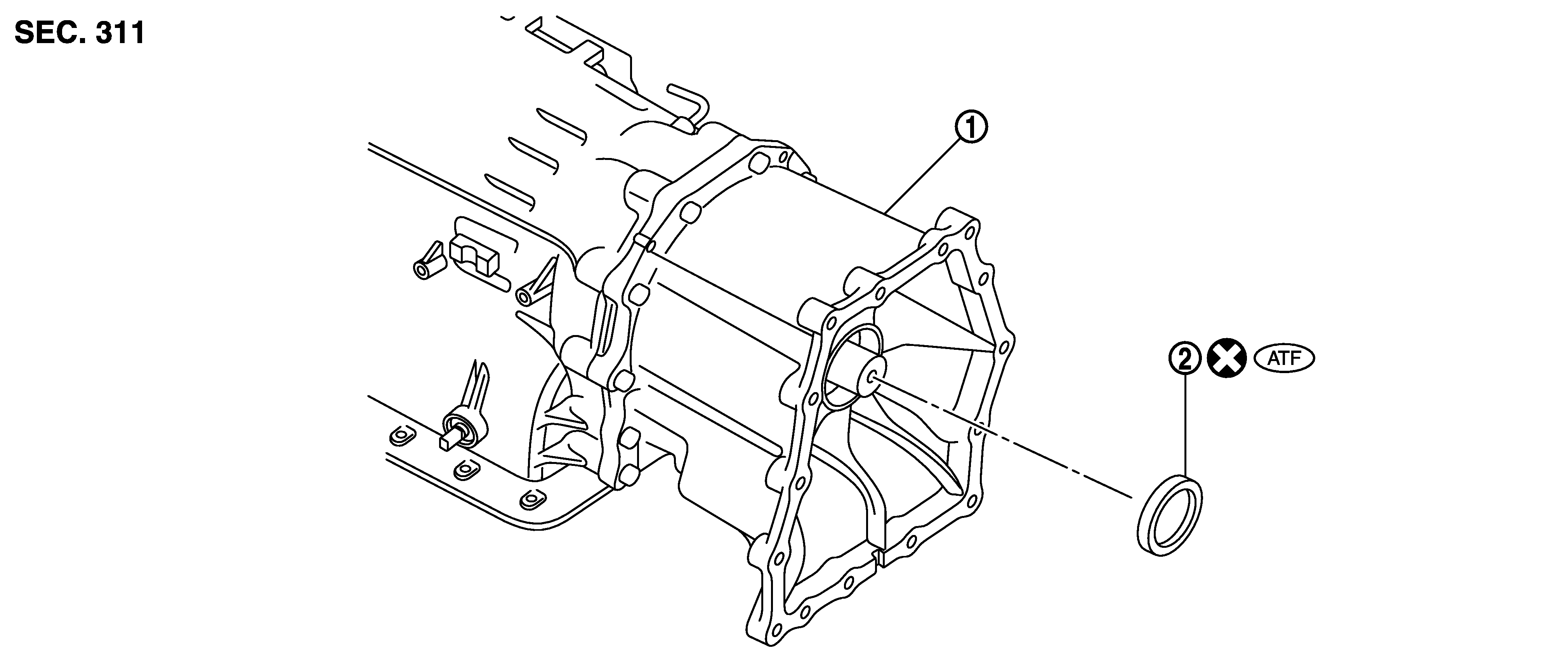

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
A/T
2.
Rear oil seal
Refer to
Components
for symbols in the figure.
