Removal and Installation: Installation

Note the following and install in the reverse order of removal.

• Refer to the following when installing fluid hoses.

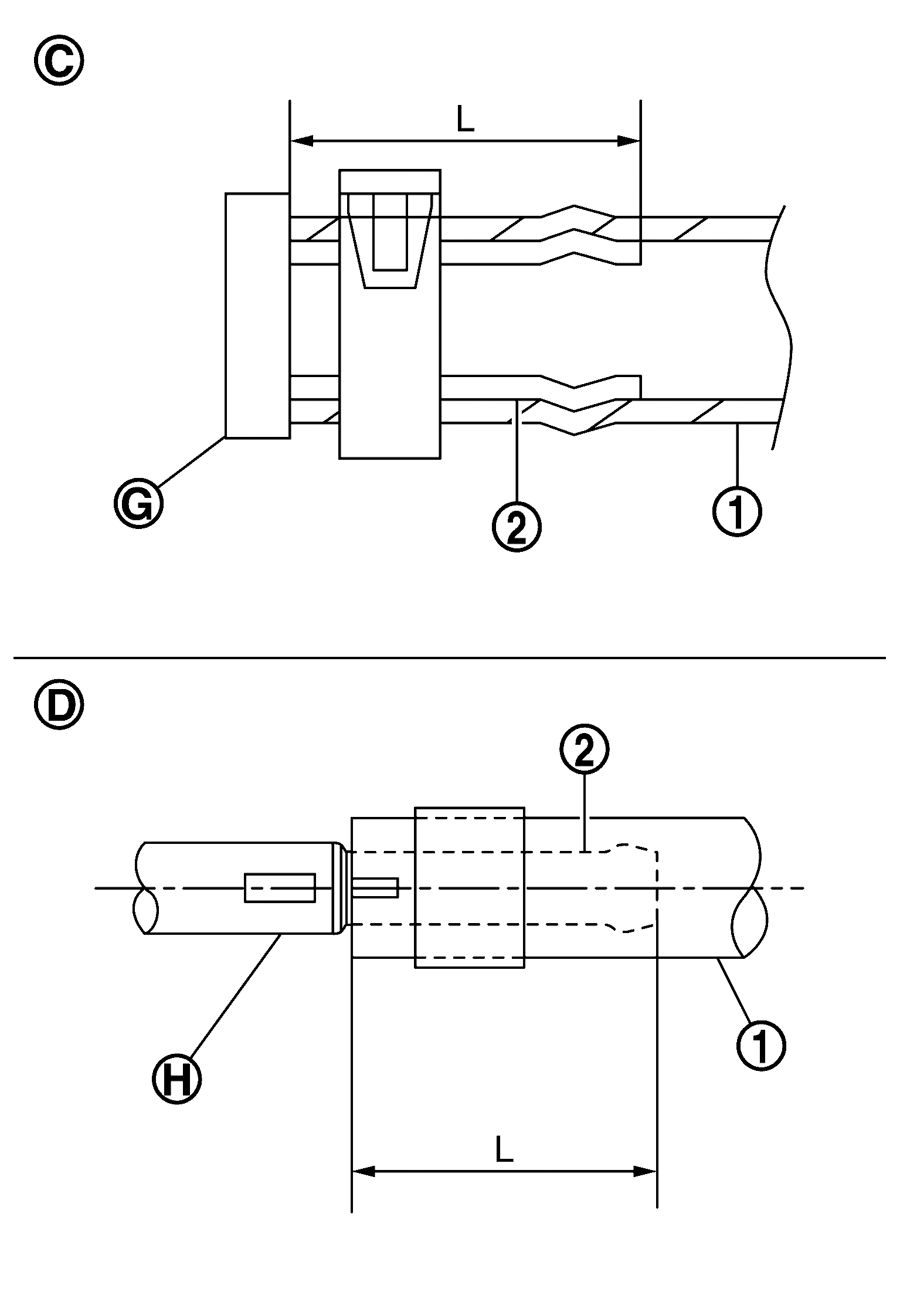

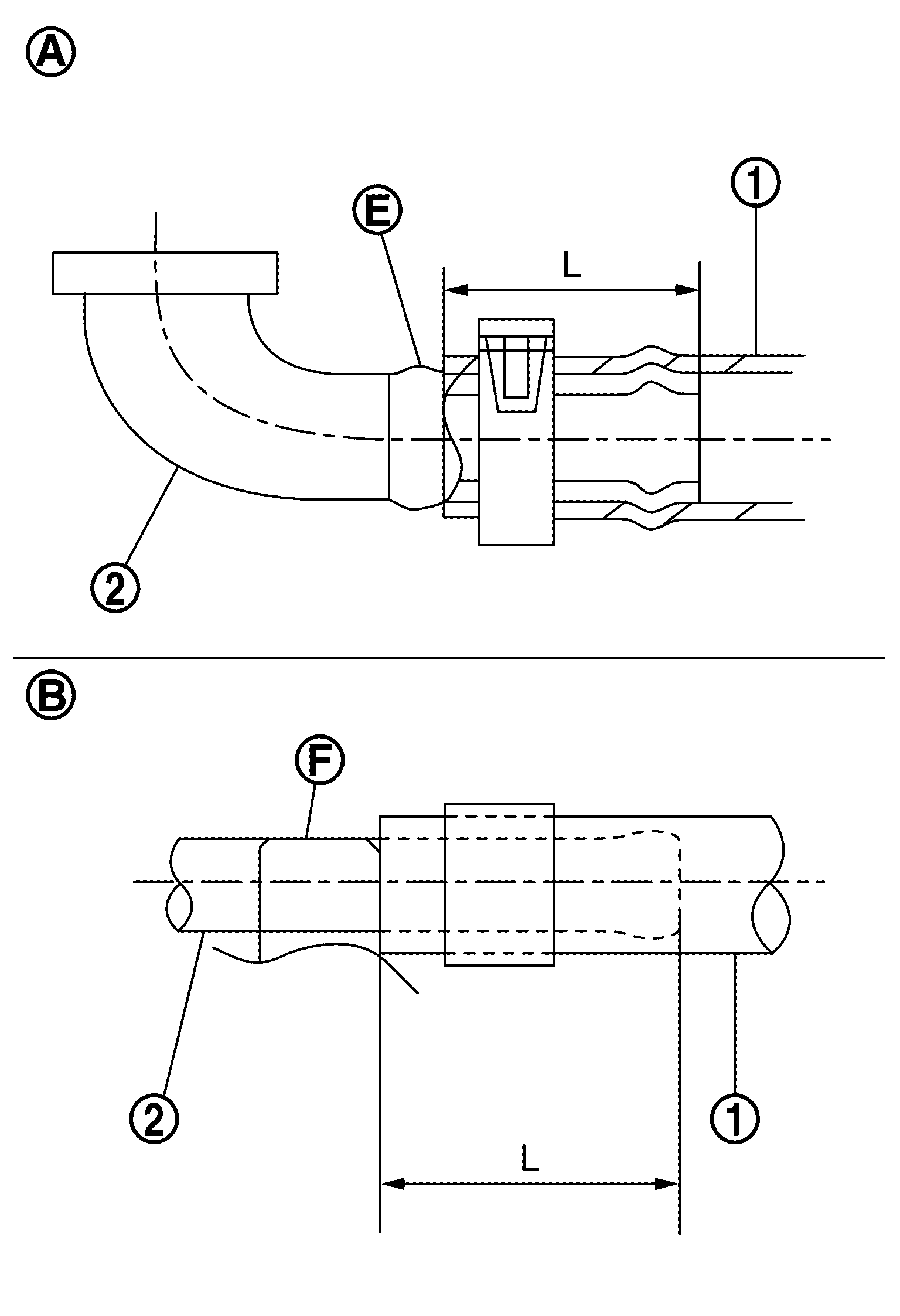

  Fluid hose	Installation side tube	Direction of paint mark	Hose insertion depth (L)
  Fluid hose A	Radiator	Rearward (Align with the mark on the fluid tube.)	: Hose end reaches the radius curve end
  	Fluid tube assembly	Downward (Align with the mark on the fluid tube.)	: Hose end reaches the bracket
  Fluid hose B	Radiator	Downward (Align with the mark on the fluid tube.)	: Hose end reaches radiator surface
  	Fluid tube assembly	Downward (Align with the mark on the fluid tube.)	: Hose end reaches the 2-stage bulge
  Fluid hose C	Fluid warmer	Leftward (Align with the mark on the fluid tube.)	: Hose end reaches the 2-stage bulge
  Fluid hose D	Water pipe assembly	Leftward (Align with the mark on the fluid tube.)	: Hose end reaches the bracket
  Fluid tube assembly	Fluid warmer	Leftward (Align with the mark on the fluid tube.)	: Hose end reaches the 2-stage bulge

  Courtesy of NISSAN NORTH AMERICA, INC.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Refer to the following when installing water hoses.

  Water hose	Installation side tube/pipe	Direction of paint mark	Hose insertion depth (L)
  Water hose A	Fluid warmer	Rearward	: Hose end reaches the fluid warmer surface
  	Thermo valve	Upward	: Hose end reaches the 2-stage bulge
  Water hose B	Fluid warmer	Leftward	: Hose end reaches the fluid warmer surface
  Water pipe assembly		Leftward	: Hose end reaches the end of tube

  Courtesy of NISSAN NORTH AMERICA, INC.

• Refer to the following when installing hose clamps.
  CAUTION: To prevent leakage of ATF/engine coolant, hose clamp should not interfere with the bulge of tube/pipe.

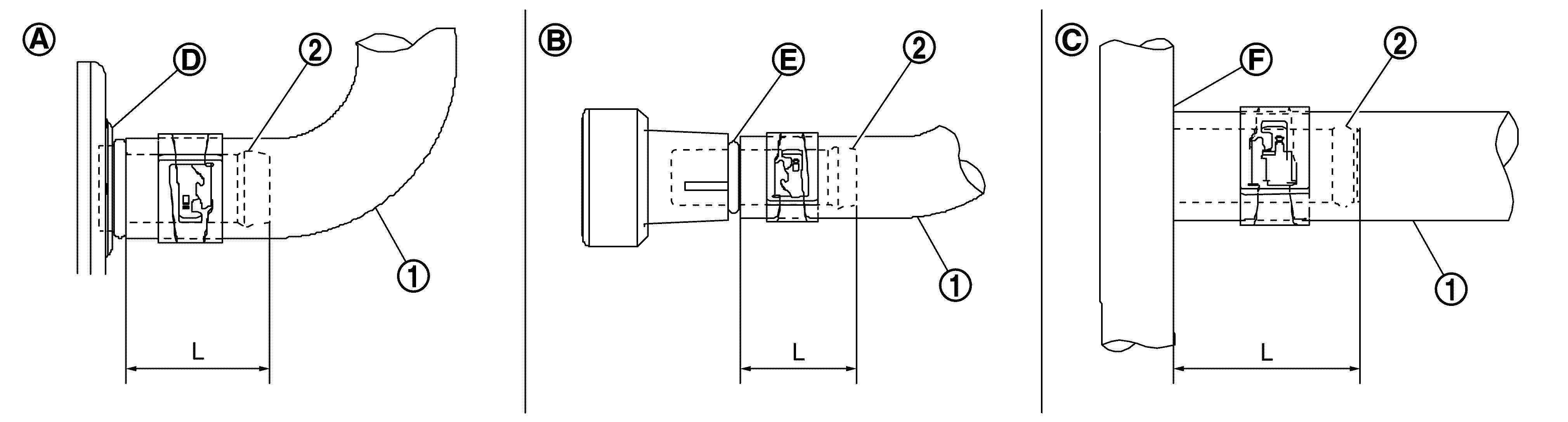

  Fluid/water hose	Installation side tube/pipe	Hose clamp
  		Direction of tab	Clamping position
  Fluid hose A	Radiator assembly	Rearward	5 - 7 mm (0.20 - 0.28 in) (A) from hose end
  	Fluid tube assembly	Downward
  Fluid hose B	Radiator assembly	Downward
  	Fluid tube assembly	Downward
  Fluid hose C	Fluid warmer	Leftward
  Fluid hose D	Water pipe assembly	Leftward
  Fluid tube assembly	Fluid warmer	Leftward
  Water hose A	Fluid warmer	Rearward
  	Thermo valve	Upward
  Water hose B	Fluid warmer	Downward
  	Water pipe assembly	Leftward

  Courtesy of NISSAN NORTH AMERICA, INC.
