Exploded View

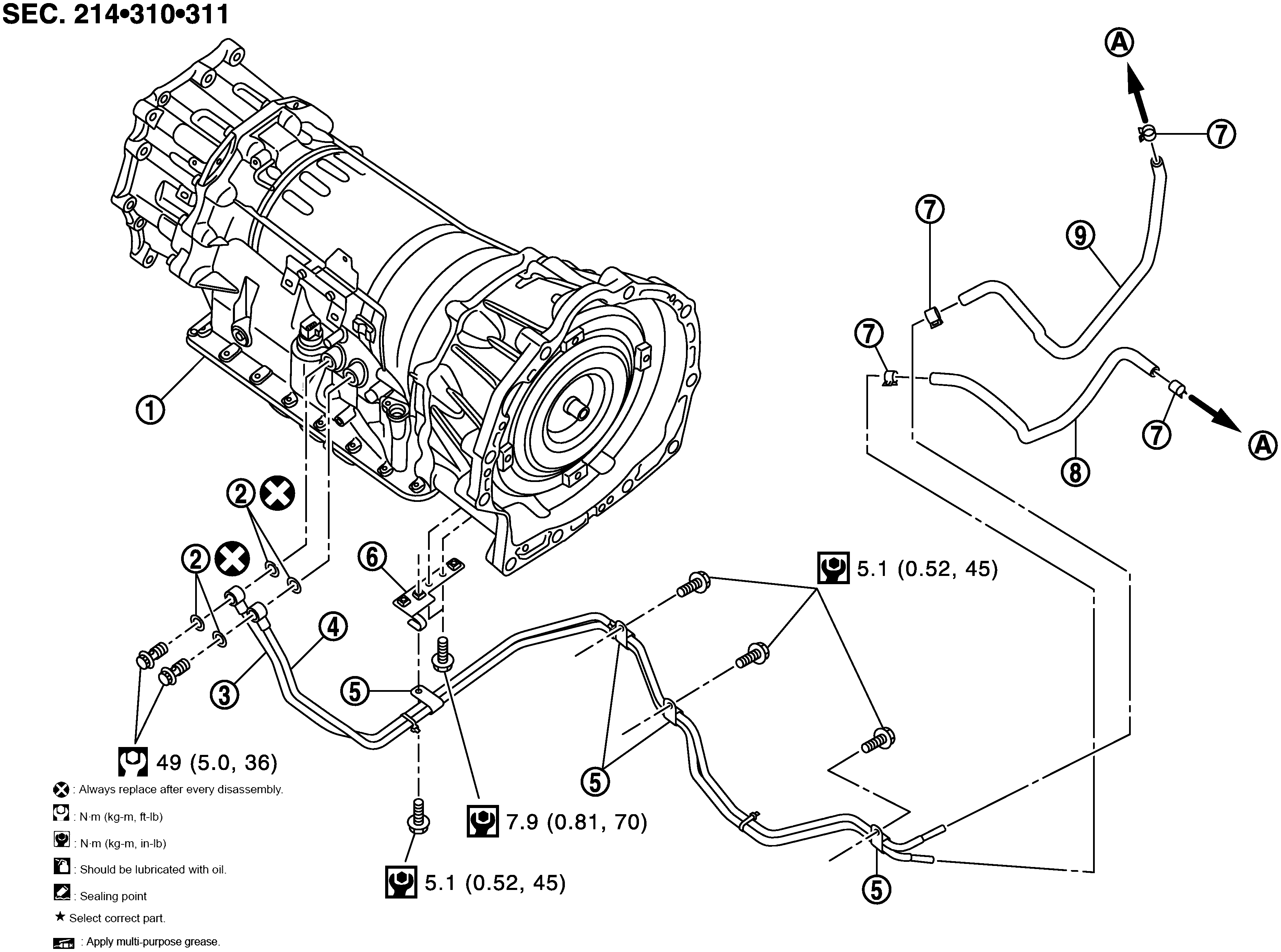

Fig 1: Fluid Cooler System AWD 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Copper washer	3.	A/T fluid cooler tube
4.	A/T fluid cooler tube	5.	Clip	6.	Bracket
7.	Hose clamp	8.	A/T fluid cooler hose B	9.	A/T fluid cooler hose A
A.	To radiator
Refer to Components for symbols in the figure.
