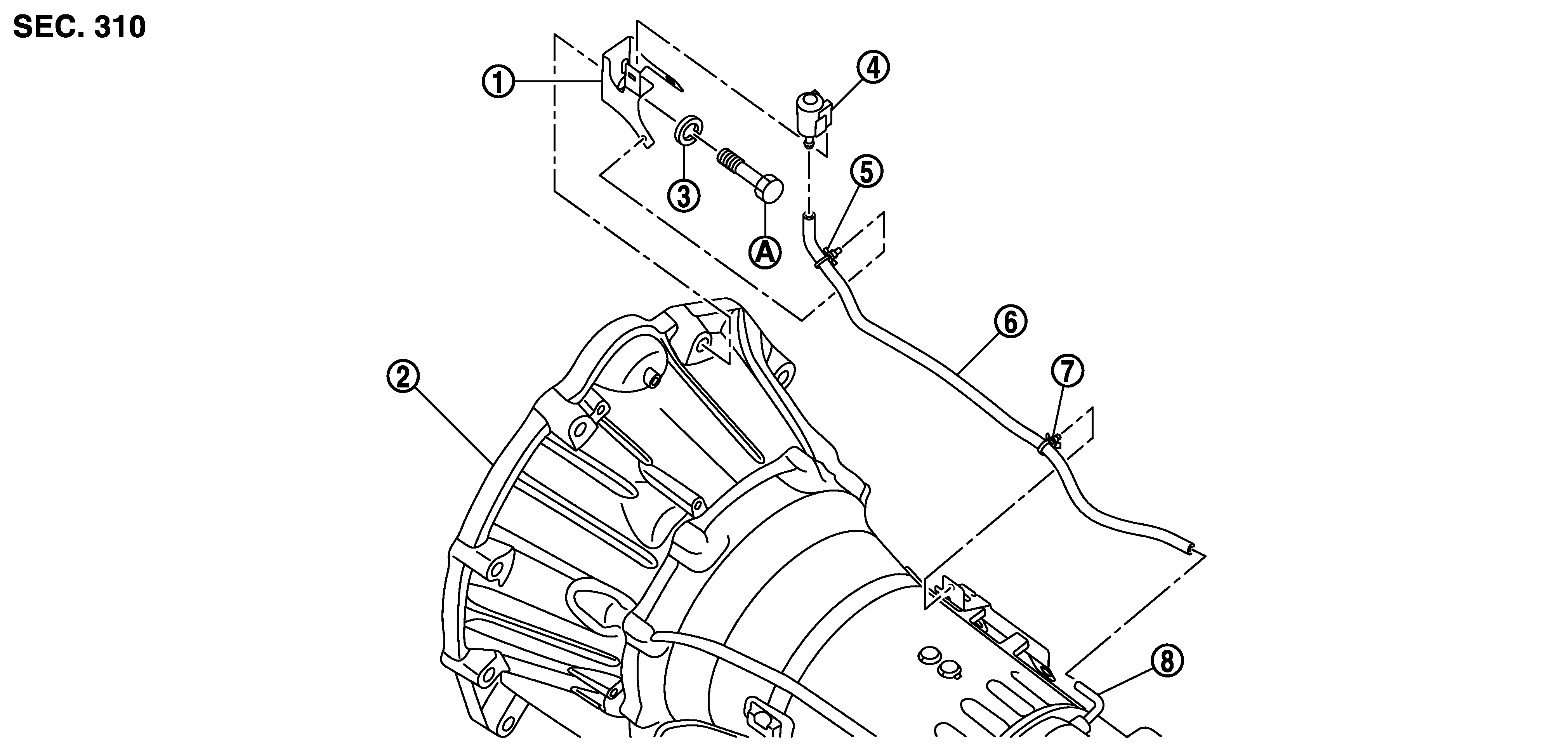

Exploded View
|
1. |
Bracket |
2. |
A/T assembly |
3. |
Spring washer |
|
4. |
Air breather box |
5. |
Clip |
6. |
Air breather hose |
|
7. |
Clip |
8. |
Breather tube |
||
|
A. |
Tightening must be done following the installation procedure. Refer to Removal and Installation . |
||||
