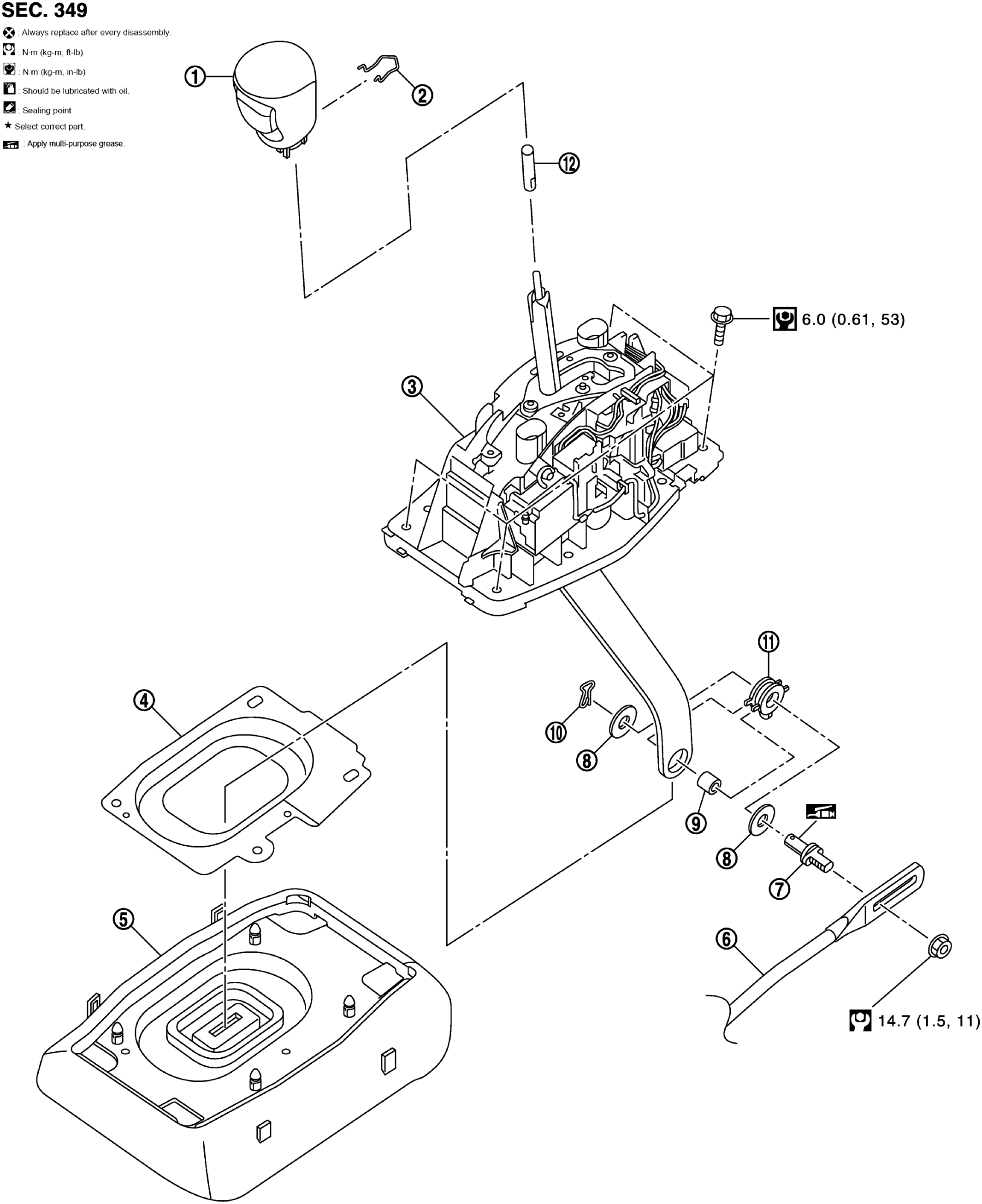

Exploded View

1.

Selector lever knob

2.

Lock pin

3.

A/T shift selector assembly

4.

Dust cover plate

5.

Dust cover

6.

Control rod

7.

Pivot pin

8.

Washer

9.

Collar

10.

Snap pin

11.

Insulator

12.

Adapter

: Apply multi-purpose grease.

Refer to Components for symbols in the figure.
