Exploded View

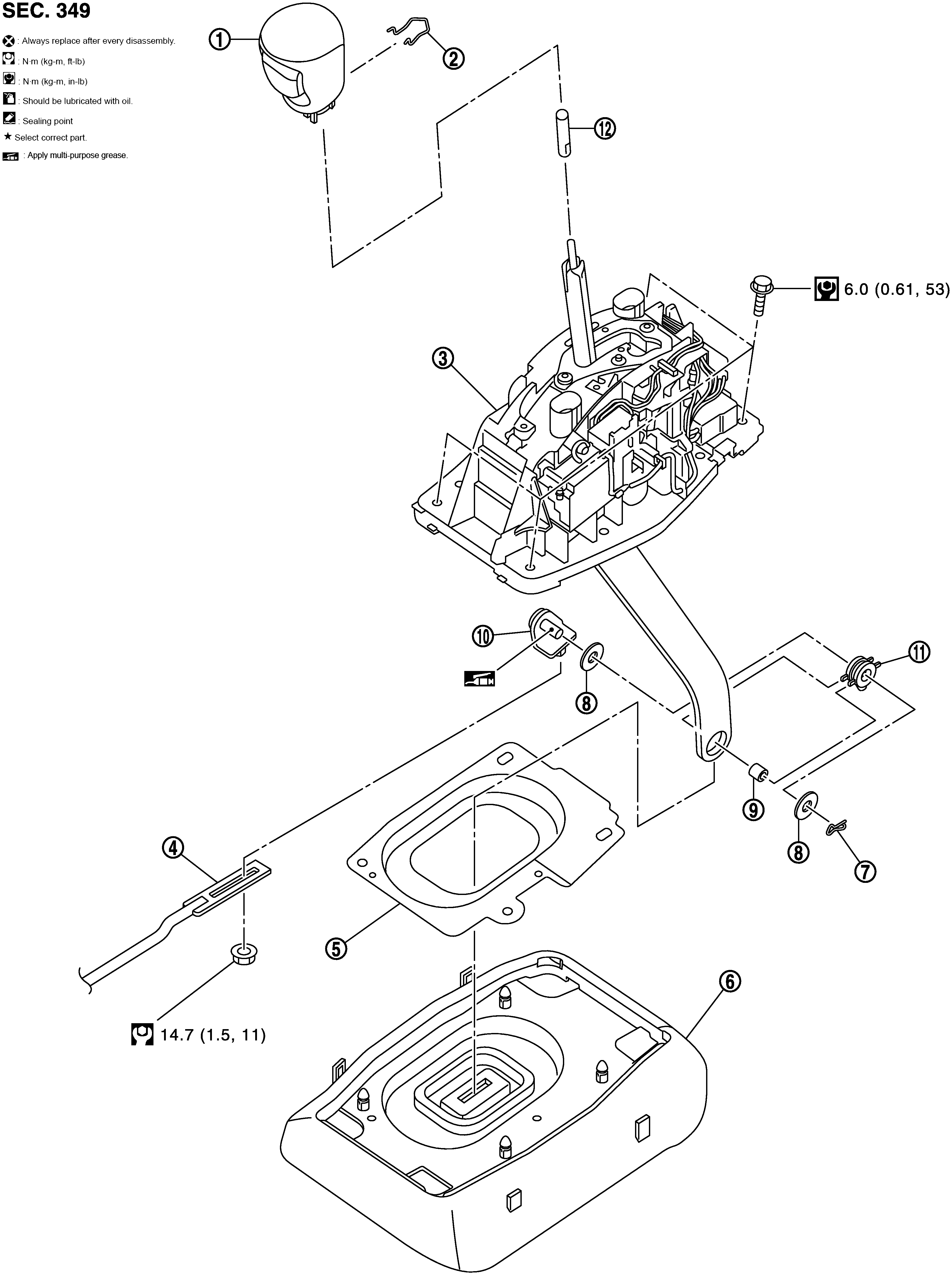

Fig 1: A/T Shift Selector AWD 3.7L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Selector lever knob	2.	Lock pin	3.	A/T shift selector assembly
4.	Control rod	5.	Dust cover plate	6.	Dust cover
7.	Snap pin	8.	Washer	9.	Collar
10.	Pivot pin	11.	Insulator	12.	Adapter
: Apply multi-purpose grease.
Refer to Components for symbols in the figure.

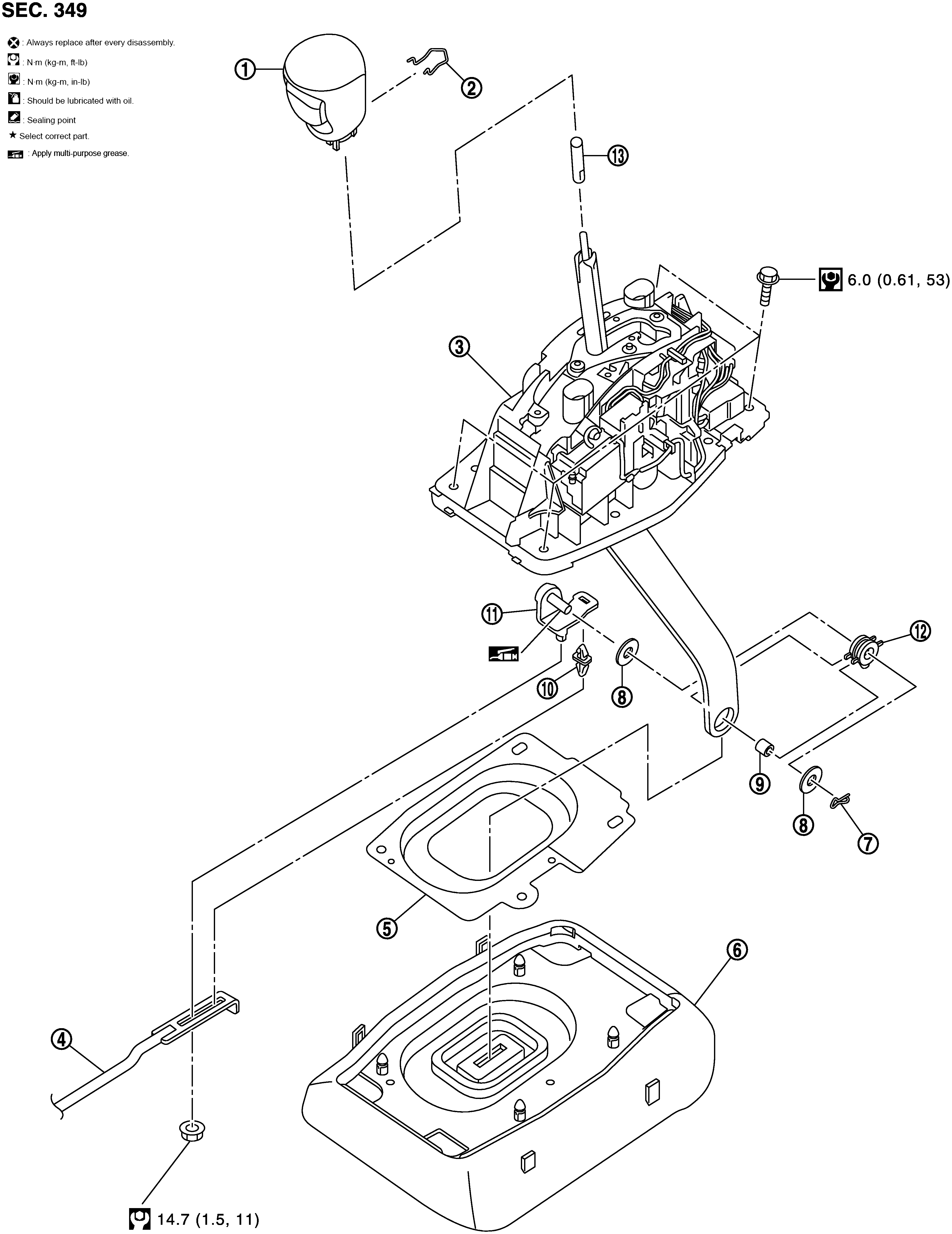

Fig 2: A/T Shift Selector AWD 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Selector lever knob	2.	Lock pin	3.	A/T shift selector assembly
4.	Control rod	5.	Dust cover plate	6.	Dust cover
7.	Snap pin	8.	Washer	9.	Collar
10.	Clip	11.	Pivot pin	12.	Insulator
13.	Adapter
: Apply multi-purpose grease.
Refer to Components for symbols in the figure.
