Removal and Installation: Removal

  1. Remove tire assembly. Refer to Removal and Installation .
  2. Remove valve cap, valve core and then deflate tire.
    NOTE: If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose of wheel balance adjustment after installation.
  3. Remove valve nut retaining Tire Pressure Sensor and allow Tire Pressure Sensor to fall into tire.
  4. Use the tire changer and disengage the tire beads.
    CAUTION:

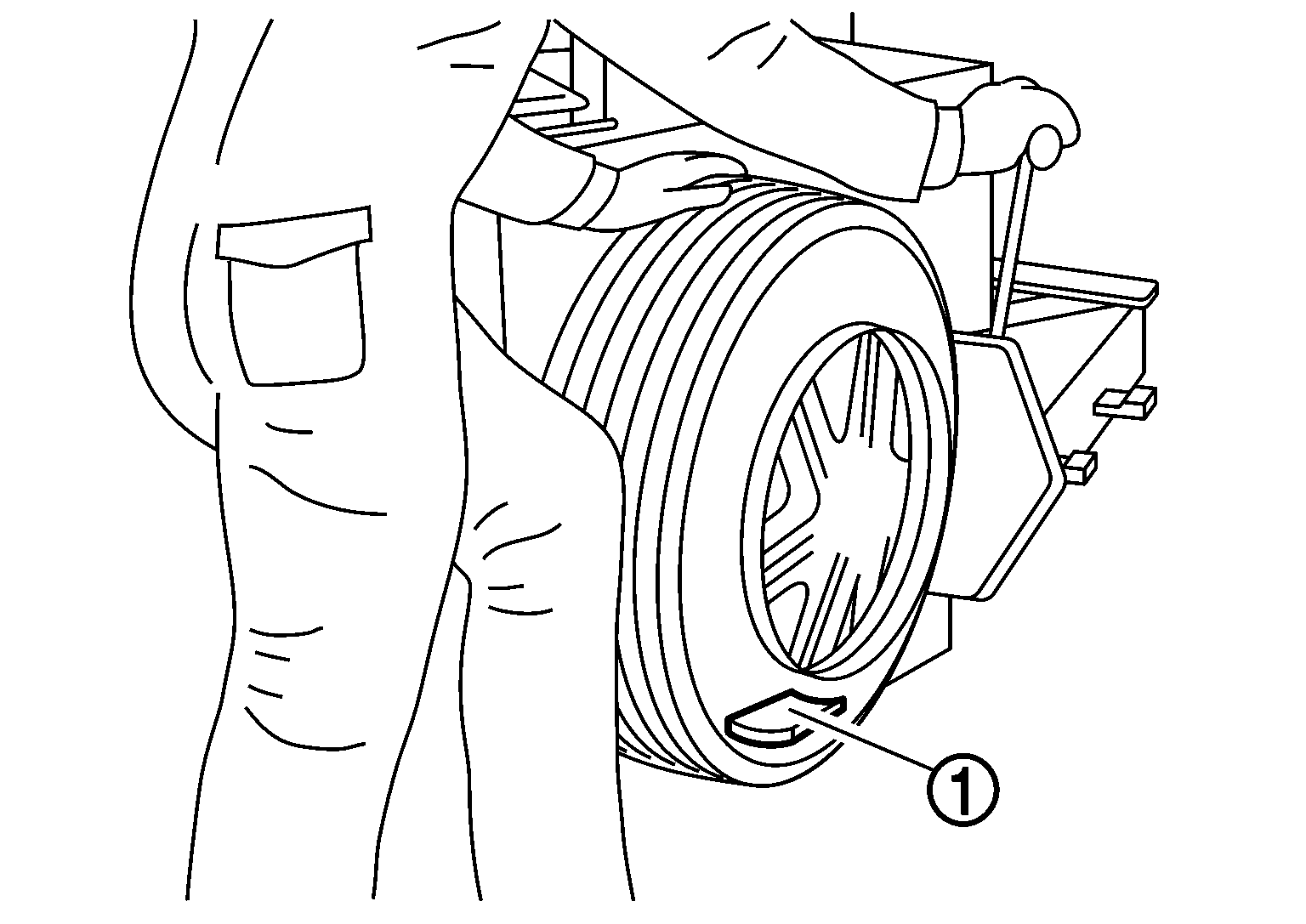

    • Verify that the Tire Pressure Sensor (1) is at the bottom of the tire while performing the above.
      GNSJPEIC0104Z-104Courtesy of NISSAN NORTH AMERICA, INC.
    • Be sure not to damage the road wheel or Tire Pressure Sensor.
  5. Apply bead cream or an equivalent to the tire beads.
  6. Set tire onto the tire changer turntable so that the Tire Pressure Sensor inside the tire is located close to the road wheel valve hole.
  7. Turn tire so that valve hole is at bottom and bounce so that Tire Pressure Sensor (1) is near valve hole. Carefully lift tire onto turntable and position valve hole (and Tire Pressure Sensor) 270 degree from mounting/dismounting head (2).
    G00562785Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be sure not to damage the road wheel and Tire Pressure Sensor.
  8. Remove Tire Pressure Sensor from tire.
  9. Remove the grommet seal.
